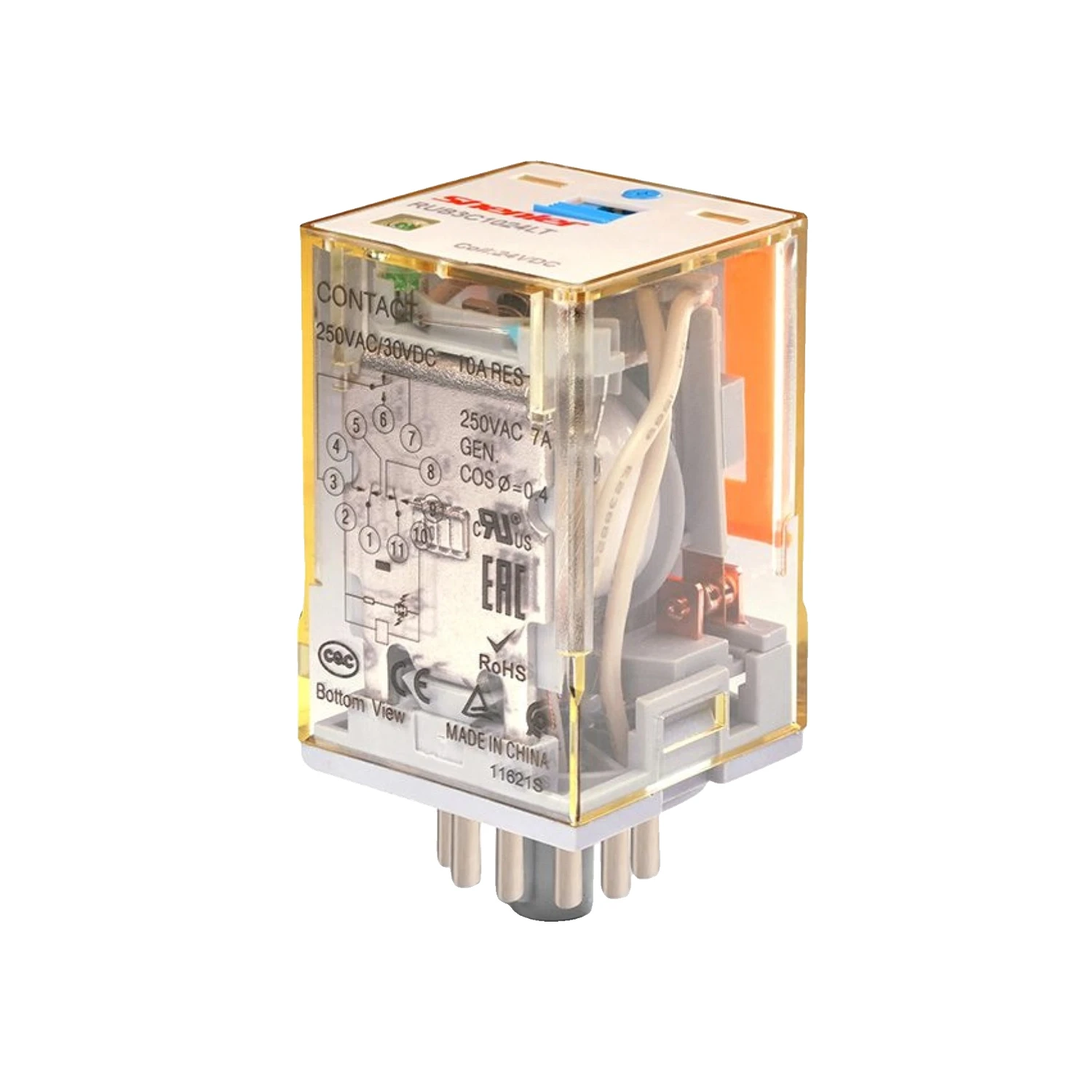

Photo is representative
Shenler RUB 24V DC 8 Pin 10A 2-Pole General Purpose Relay IP20
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
8P24VDC
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £11.33
Gross price
£13.60
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Plug-in general purpose relay from the Shenler RUB series. 8-pin base, 24V DC coil, 2-pole changeover (2C) contacts. Fits standard 8-pin relay sockets.
Contacts are silver alloy rated at 10A resistive, 2500VA / 300W max switching capacity. Built-in non-polarity LED indicator (green on DC) and a lockable test button with coil identification colour coding — handy for panel commissioning and fault-finding.
- Coil voltage: 24V DC (430Ω, approx. 1.5W)
- Contact rating: 10A, 250V AC insulation rated
- Pick-up voltage: ≤80% of rated; drop-out: ≥10% DC / ≥30% AC
- Electrical durability: ≥100,000 cycles at 1800 ops/hr
- Operating temp: -10 to +55°C
