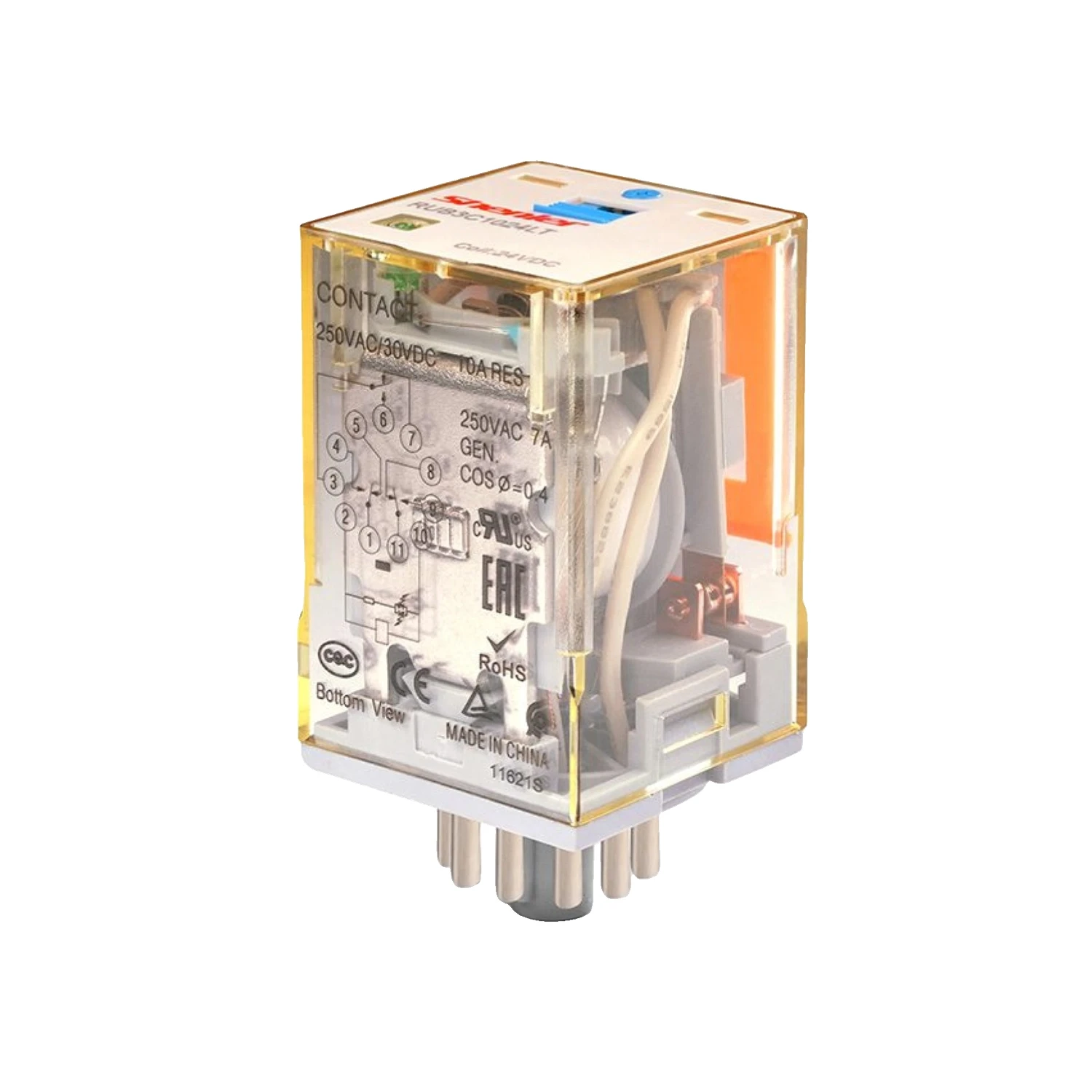

RUB Series 220V AC 8 Pin 2 Pole DPDT General Purpose Control Relay 10A IP20

Photo is representative

RUB Series 220V AC 8 Pin 2 Pole DPDT General Purpose Control Relay 10A IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8P220VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £16.76

Gross price

£20.12

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

General purpose 8-pin plug-in relay from the RUB series. 220V AC coil, 2-pole changeover (2C) configuration. Fits standard 8-pin relay bases.

Built for control circuit switching. Contacts rated 10A resistive at 250V AC or 7A inductive. Non-polarity LED indicator, lockable test button, and inspection window included as standard.

  • Contact rating: 10A/250V AC resistive, 7A/250V AC inductive
  • Max switching capacity: 2500VA / 300W
  • Operate time: ≤30ms | Release time: ≤20ms
  • Operating temp: −10 to +55°C
  • Certifications: cUL, CE, RoHS, UKCA, EAC
Specifications

Coil Voltage

220V AC

Contact Configuration

2C (2-pole changeover, DPDT)

Contact Rating (Resistive)

10A / 250V AC, 30V DC

Contact Rating (Inductive)

7A / 250V AC, 30V DC

Max Switching Capacity

2500VA, 300W

Pin Configuration

8 pin

Mounting

Plug-in

IP Rating

IP20

Pick-up Voltage

≤80% of rated voltage at 23°C

Drop-out Voltage (AC)

≥30% of rated voltage at 23°C

Impulse Withstand Voltage

4000V (1.2/50µs waveform, 2000m altitude)

Insulation Resistance

≥100MΩ at 500V DC

Electrical Durability

≥10⁶ cycles at 1800 ops/h

Mechanical Durability

≥2000 × 10⁴ cycles at 18000 ops/h

Operating Temperature

−10 to +55°C, 5–85% RH (no condensation)

Operate Time

≤30ms

Release Time

≤20ms

Contact Material

Ag alloy

Weight

approx. 85g

Certifications

cUL, CE, RoHS, UKCA, EAC
