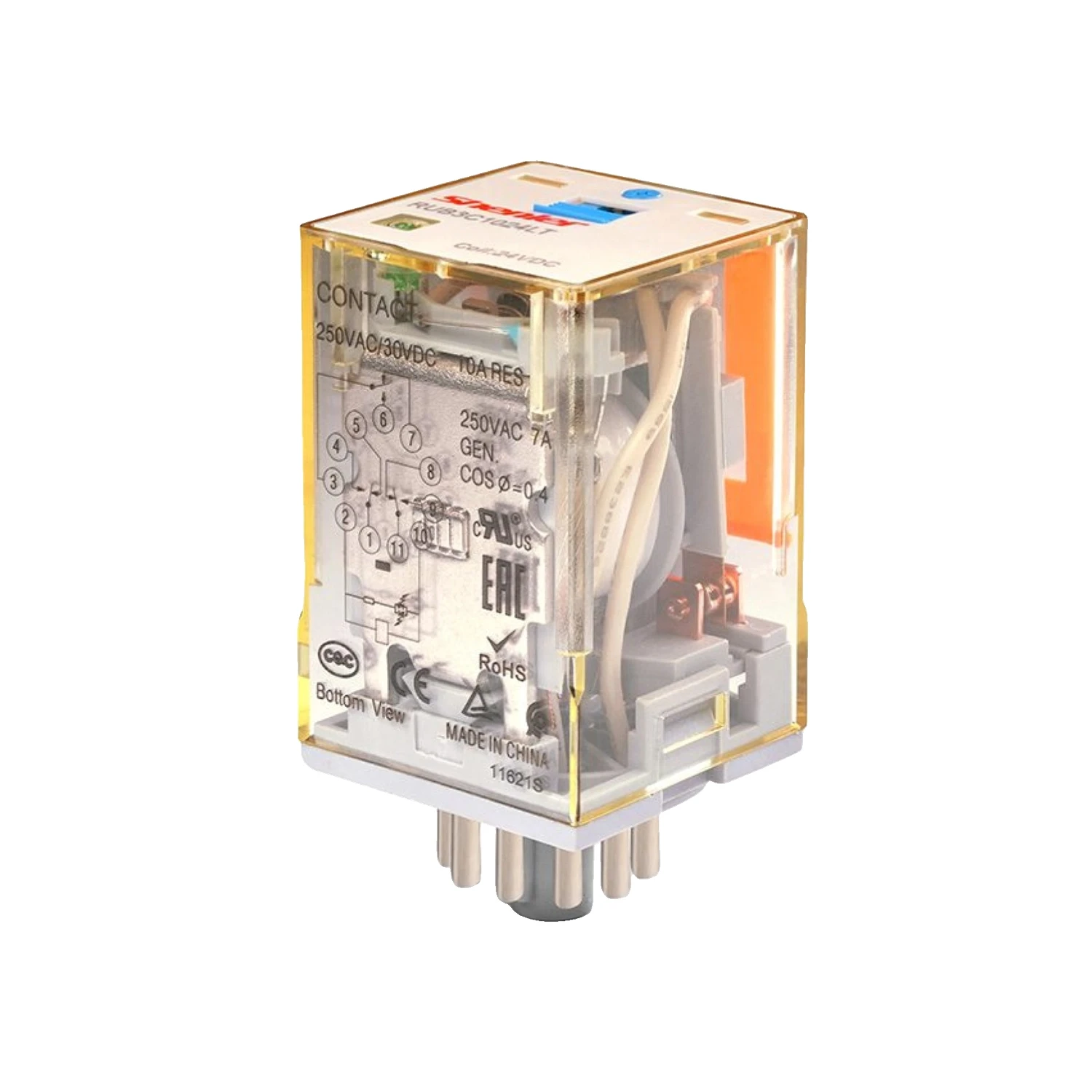

General Purpose Relay 12V DC 8 Pin 10A 2C DPDT IP20 250VAC

Photo is representative

General Purpose Relay 12V DC 8 Pin 10A 2C DPDT IP20 250VAC

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8P12VDC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £12.34

Gross price

£14.81

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

8-pin plug-in general purpose relay with a 12V DC coil. DPDT (2C) contact configuration — 10A resistive, 7A inductive, rated to 250VAC/30VDC. Fits standard 8-pin relay sockets.

Built-in non-polarity LED indicator (red AC / green DC), lockable test button, and metal clip retainer. Inspection window included.

  • Coil: 12V DC, 96Ω, approx. 1.5W
  • Contacts: Ag alloy, ≤50mΩ initial resistance
  • Max switching capacity: 2500VA / 300W resistive
  • Electrical durability: ≥10⁵ cycles at 1800 ops/h
  • Operating temp: -10 to +55°C
  • Impulse withstand: 4000V (1.2/50μs)
  • Certifications: UL, CE, UKCA, CCC, EAC, RoHS
Specifications

Coil Voltage

12V DC

Coil Resistance

96Ω

Coil Operating Power (DC)

approx. 1.5W

Contact Configuration

2C (DPDT)

Contact Rating (Resistive)

10A

Contact Rating (Inductive)

7A

Rated Voltage (AC)

250VAC

Rated Voltage (DC)

30VDC

Max Switching Capacity

2500VA / 300W (resistive)

Contact Material

Ag alloy (silver alloy)

Initial Contact Resistance

≤50mΩ

Pick-up Voltage

≤80% of rated (at 23°C)

Operate Time

≤30ms

Release Time

≤20ms

Impulse Withstand Voltage

4000V (1.2/50μs, altitude 2000m)

Insulation Resistance

≥100MΩ (500VDC)

Breakdown Voltage (contacts to coil)

2500VAC/1min

Electrical Durability

≥10⁵ cycles at 1800 ops/h

Mechanical Durability

≥2000 x 10⁵ cycles at 18000 ops/h

IP Rating

IP20

Operating Temperature

-10 to +55°C

Storage Temperature

-55 to +85°C

Pollution Level

3

Mounting

Plug-in (8-pin)

Weight

approx. 85g

Certifications

UL, CE, UKCA, CCC, EAC, RoHS
