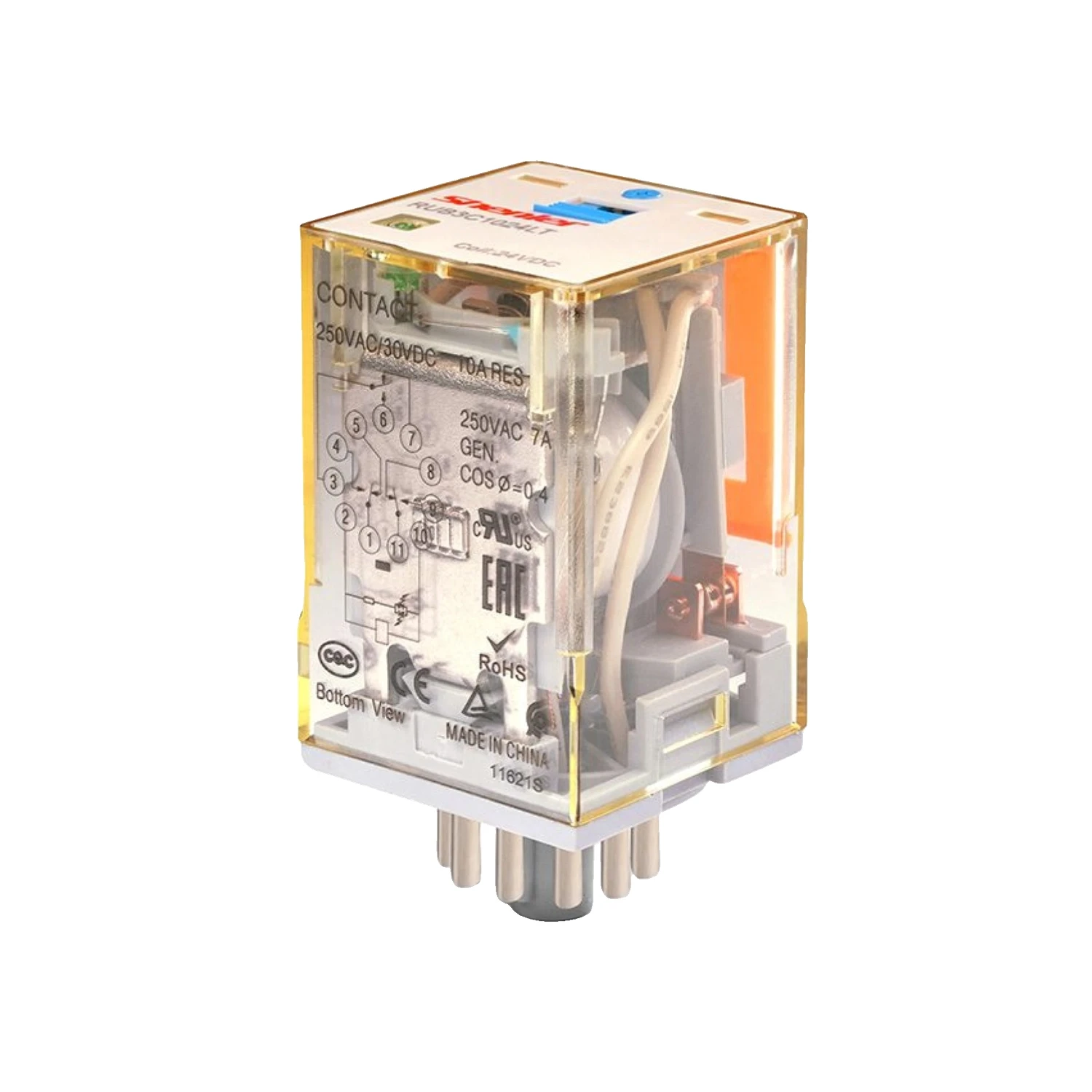

RUB 110V AC 8 Pin 10A 2 Pole General Purpose Control Relay IP20

Photo is representative

RUB 110V AC 8 Pin 10A 2 Pole General Purpose Control Relay IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8P110VAC
GTIN —
Stock status: In stock

priced individually

Net price: £12.02

Gross price

£14.43

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

8-pin plug-in general purpose relay from the RUB series. Socket-mounted, 2-pole changeover (2C) contacts, 110V AC coil. Suits industrial control panels and motor control applications.

Comes with a non-polarity LED indicator, lockable test button, and inspection window for coil ID — useful when a panel is live and you need a quick visual check.

  • Contact rating: 10A, 2500VA resistive, 300W
  • Operate/release time: ≤30ms / ≤20ms
  • Working temp: −10 to +55°C
  • Insulation voltage: 250V AC
  • Impulse withstand: 4000V (1.2/50µs)
Specifications

Coil Voltage

110V AC

Contact Configuration

2C (2-pole changeover)

Contact Rating

10A

Max Switching Capacity (Resistive)

2500VA / 300W

Rated Insulation Voltage

250V AC

Impulse Withstand Voltage

4000V (1.2/50µs, altitude 2000m)

Initial Contact Resistance

≤50mΩ

Insulation Resistance

≥100MΩ at 500V DC

Pick-up Voltage

≤80% of rated voltage at 23°C

Drop-out Voltage (AC)

≥30% of rated voltage at 23°C

Operate Time

≤30ms

Release Time

≤20ms

Electrical Durability

≥10⁶ cycles at 1800 ops/h

Mechanical Durability

≥2000 x 10⁶ cycles at 18000 ops/h

Coil Operating Power

approx. 2.7VA (60Hz)

Contact Material

Ag alloy

Protection Level

IP20

Overvoltage Category

III

Pollution Degree

3

Working Temperature

−10 to +55°C, 5–85% RH (no condensation)

Storage Temperature

−55 to +85°C, ≤85% RH

Shock Resistance

10G (half-sine, 11ms)

Vibration Resistance

10–55Hz, 1.5mm double amplitude

Mounting

Plug-in / socket-mounted

Weight

approx. 85g

LED Indicator

Non-polarity LED (AC red / DC green)

Test Button

Lockable, with inspection window

Certifications

UL, CE, UKCA, RoHS, IEC 60664, UL840, EAC
