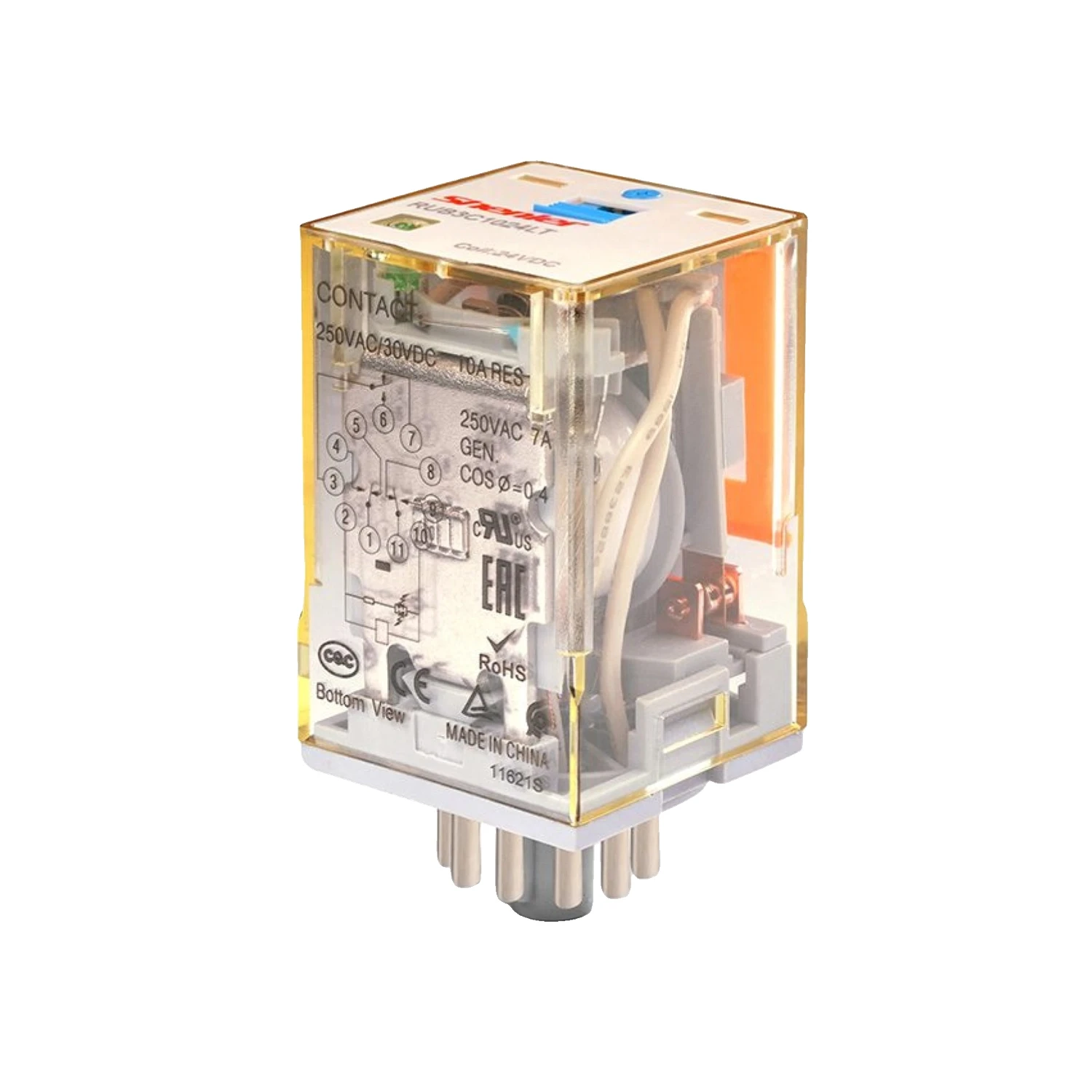

RUB 24V AC 8 Pin 2 Pole 10A General Purpose Control Relay IP20

Photo is representative

RUB 24V AC 8 Pin 2 Pole 10A General Purpose Control Relay IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8P24VAC
GTIN —
Stock status: In stock

priced individually

Net price: £12.02

Gross price

£14.43

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Plug-in 8-pin general purpose control relay from the RUB series. 24V AC coil with 2C (DPDT) contact configuration. Suits standard 8-pin relay bases in control panels, HVAC, and motor control applications.

Comes with a non-polarity LED indicator, lockable test button, and inspection window as standard.

  • Contact rating: 10A resistive, 250VAC / 30VDC
  • Max switching capacity: 2500VA (resistive)
  • Operate time: ≤30ms / Release time: ≤20ms
  • Operating temp: -10 to +55°C
  • Certifications: CE, UKCA, cUL, RoHS, EAC
Specifications

Coil Voltage

24V AC

Contact Form

2C (2 changeover / DPDT)

Rated Current

10A

Insulation Rated Voltage

250VAC

Max Switching Capacity

2500VA (resistive) / 300W

Contact Material

Silver alloy (Ag alloy)

Initial Contact Resistance

≤50mΩ

Coil Resistance

62.5Ω

Pick-up Voltage

≤80% of rated voltage at 23°C

Drop-out Voltage

AC ≥30% of rated voltage (50/60Hz) at 23°C

Operate Time

≤30ms

Release Time

≤20ms

Electrical Durability

≥10⁵ cycles at 1800 ops/h

Mechanical Durability

≥2000 × 10⁶ cycles at 18000 ops/h

Impulse Withstand Voltage

4000V at 2000m altitude

Insulation Resistance

≥100MΩ at 500VDC

Protection Level

IP20

Pollution Level

3

Overvoltage Level

III

Operating Temperature

-10 to +55°C

Storage Temperature

-55 to +85°C

Mounting

Plug-in (8-pin)

Unit Weight

approx. 85g

Certifications

CE, UKCA, cUL, RoHS, EAC
