RUB General Purpose Relay 48V AC 8 Pin 2C 10A IP20

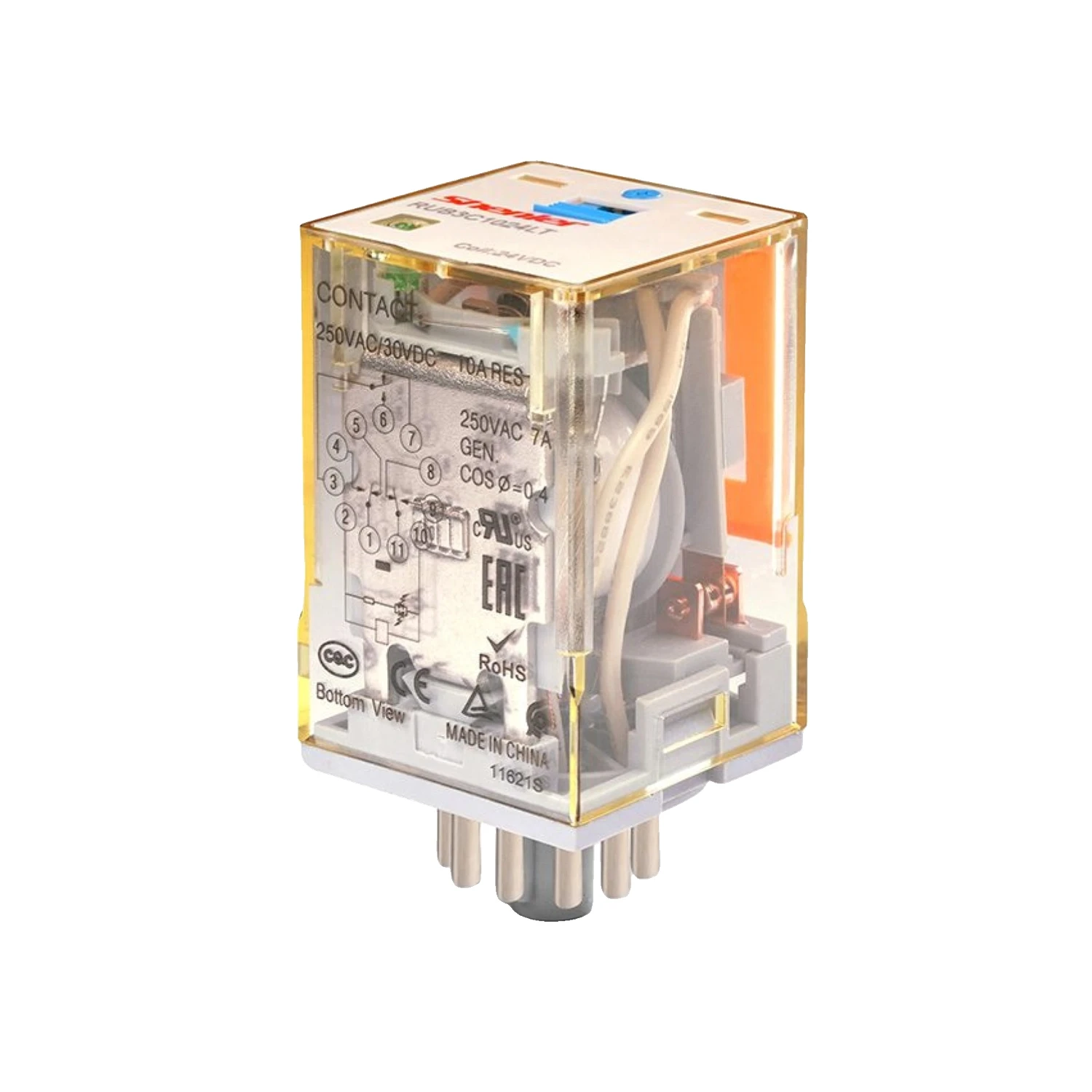

Photo is representative

RUB General Purpose Relay 48V AC 8 Pin 2C 10A IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8P48VAC
GTIN —
Stock status: In stock

priced individually

Net price: £12.51

Gross price

£15.01

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

8-pin plug-in control relay from the RUB series. 48V AC coil, 2C contact form (2 x SPDT changeover), 10A rated. Fits standard 8-pin relay sockets.

Has a lockable test button with inspection window and a non-polarity LED for visual status confirmation — AC coil identified by red test button.

  • Coil voltage: 48V AC
  • Contact rating: 10A, max 2500VA / 300W resistive
  • Insulation rated voltage: 250V AC
  • Operate time: ≤30ms / Release time: ≤20ms
  • Operating temp: -10 to +55°C
Specifications

Coil Voltage

48V AC

Contact Configuration

2C (2 x changeover)

Rated Current

10A

Max Switching Capacity (Resistive)

2500VA / 300W

Insulation Rated Voltage

250V AC

Coil Resistance

144Ω

Coil Operating Power

approx. 2.7VA (60Hz)

Pick-up Voltage

≤80% of rated voltage at 23°C

Drop-out Voltage

AC ≥30% of rated voltage at 50/60Hz

Operate Time

≤30ms

Release Time

≤20ms

Contact Material

Ag alloy

Initial Contact Resistance

≤50mΩ

Electrical Durability

≥10⁵ cycles at 1800 ops/h

Mechanical Durability

≥2000 x 10⁶ cycles at 18000 ops/h

Impulse Withstand Voltage

4000V (1.2/50μs waveform, 2000m altitude)

Insulation Resistance

≥100MΩ at 500V DC

Overvoltage Level

III

Pollution Level

3

Protection Level

IP20

Mounting

Plug-in (8-pin)

Operating Temperature

-10 to +55°C, 5–85% RH (no condensation)

Storage Temperature

-55 to +85°C, ≤85% RH

Weight

approx. 85g

Certifications

CE, UL, cCSAus, EAC, RoHS, IEC 60664, UK
