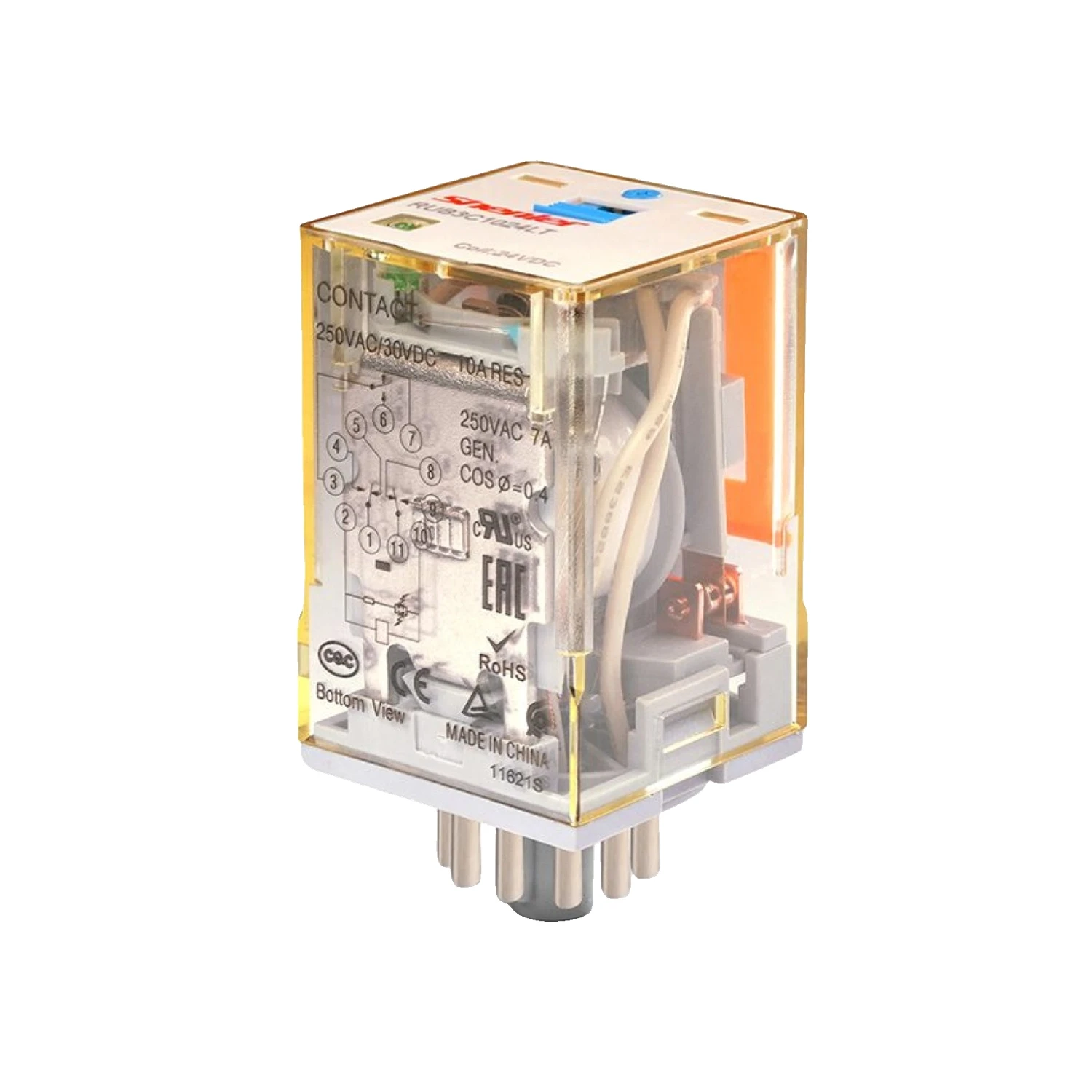

Shenler RUB 12V AC 8 Pin 10A 2CO General Purpose Relay IP20 250V
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
8P12VAC
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £12.46
Gross price
£14.96
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
8-pin plug-in relay from the Shenler RUB series. 12V AC coil, 2CO contact form — suits general-purpose switching and industrial automation panels. Mounts via metal clip socket (ordered separately).
Comes with a non-polarity LED indicator (red AC) and a lockable test button with inspection window. Silver alloy contacts rated to 10A resistive or 7A inductive at 250V AC.
- Coil: 12V AC, ~2.7VA (60Hz)
- Contacts: 10A resistive / 7A inductive, 250V AC / 30V DC
- Max switching capacity: 2500VA / 300W
- Operate time: ≤30ms | Release time: ≤20ms
- Operating temp: -10 to +55°C
