NYM-J 5 Core 6mm² PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 5 Core 6mm² PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 56NYM
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £6.92

Gross price

£8.31

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 5 core 6mm² PVC/PVC wiring cable on a 500m drum. Suits fixed wiring in indoor and outdoor locations — dry, moist or wet environments, under plaster, and in concrete.

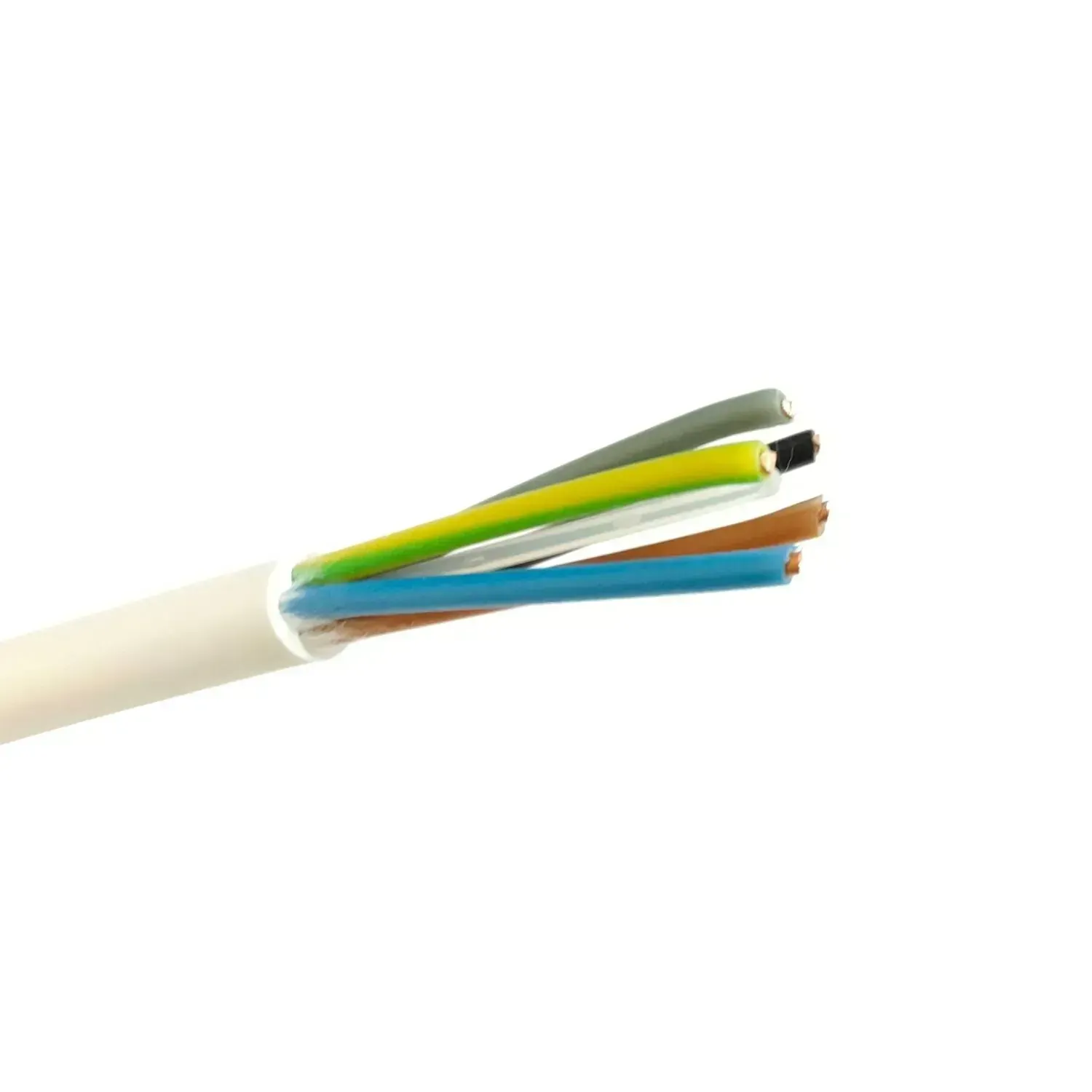

Solid copper Class 1 conductors, PVC insulation and sheath to IEC 60332-1-2. Cores identified brown, black, grey, blue, and green/yellow.

  • 300/500V rated
  • 43A current carrying capacity
  • Operating temp: -30°C to +70°C
  • Do not install below 0°C
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Voltage Rating

300/500V

Conductor Size

6mm²

Number of Cores

5

Conductor Type

Solid copper (Class 1)

Stranding

1/2.76mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Current Carrying Capacity

43A

DC Resistance at 20°C

3.08 Ω/km

AC Resistance at 70°C

6 Ω/km

Inductance

0.281 mH/km

Voltage Drop (Single Phase AC)

7.9 mV/A/m

Voltage Drop (Three Phase AC)

6.8 mV/A/m

Operating Temperature

-30°C to +70°C

Installation Temperature Limit

Not below 0°C

Weight

406 kg/km

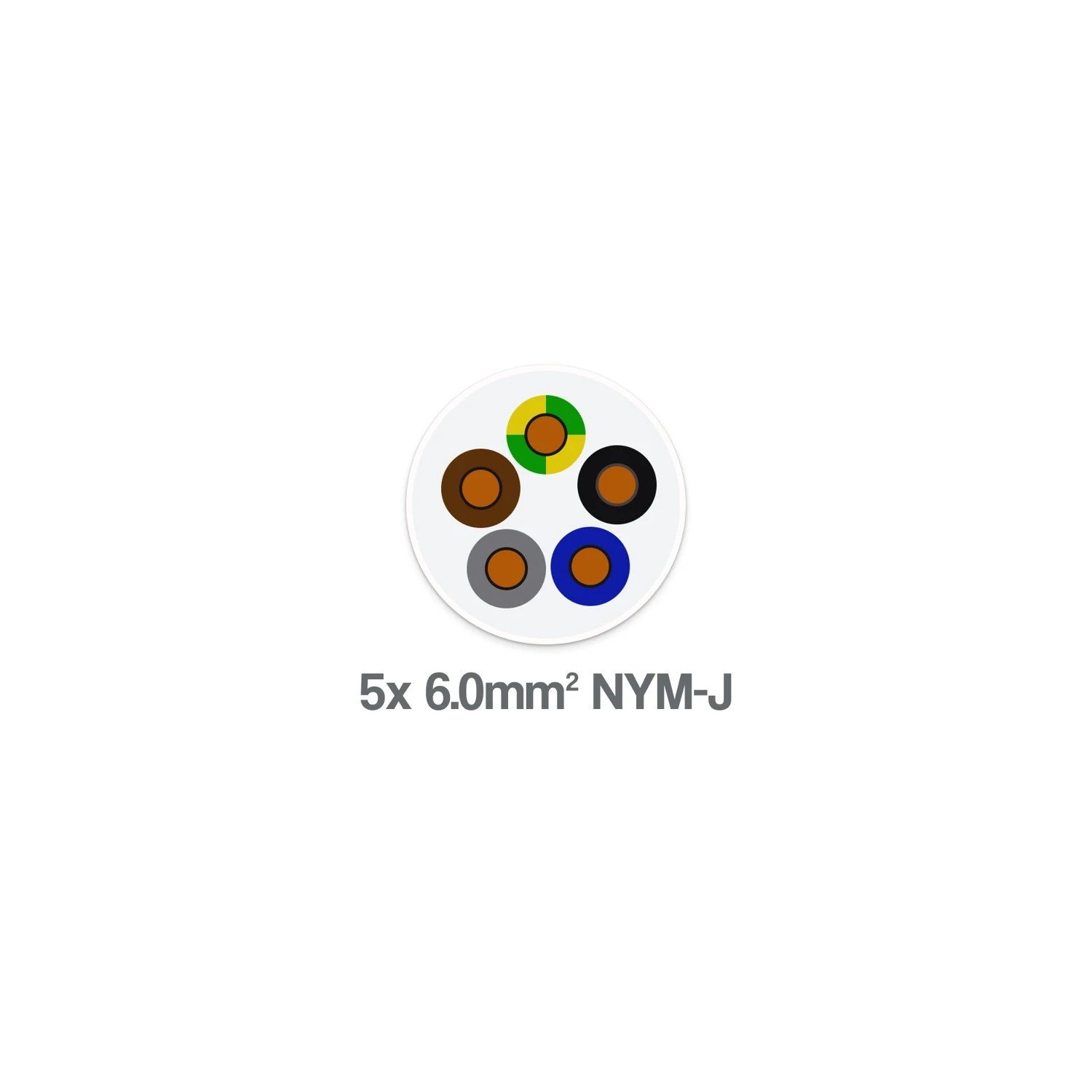

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
