NYM-J 5 Core 10mm2 PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 5 Core 10mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 510NYM
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £11.45

Gross price

£13.74

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 5 core 10mm² PVC wiring cable on a 500m drum. Suitable for dry, moist or wet open areas — under plaster, in concrete, indoor and outdoor fixed installations. Not suitable for direct sunlight exposure. Do not install below 0°C.

  • Voltage rating: 300/500V
  • Current capacity: 61A
  • Conductor: Solid copper, Class 1 (1⁄3.56mm)
  • Temp range: -30°C to +70°C

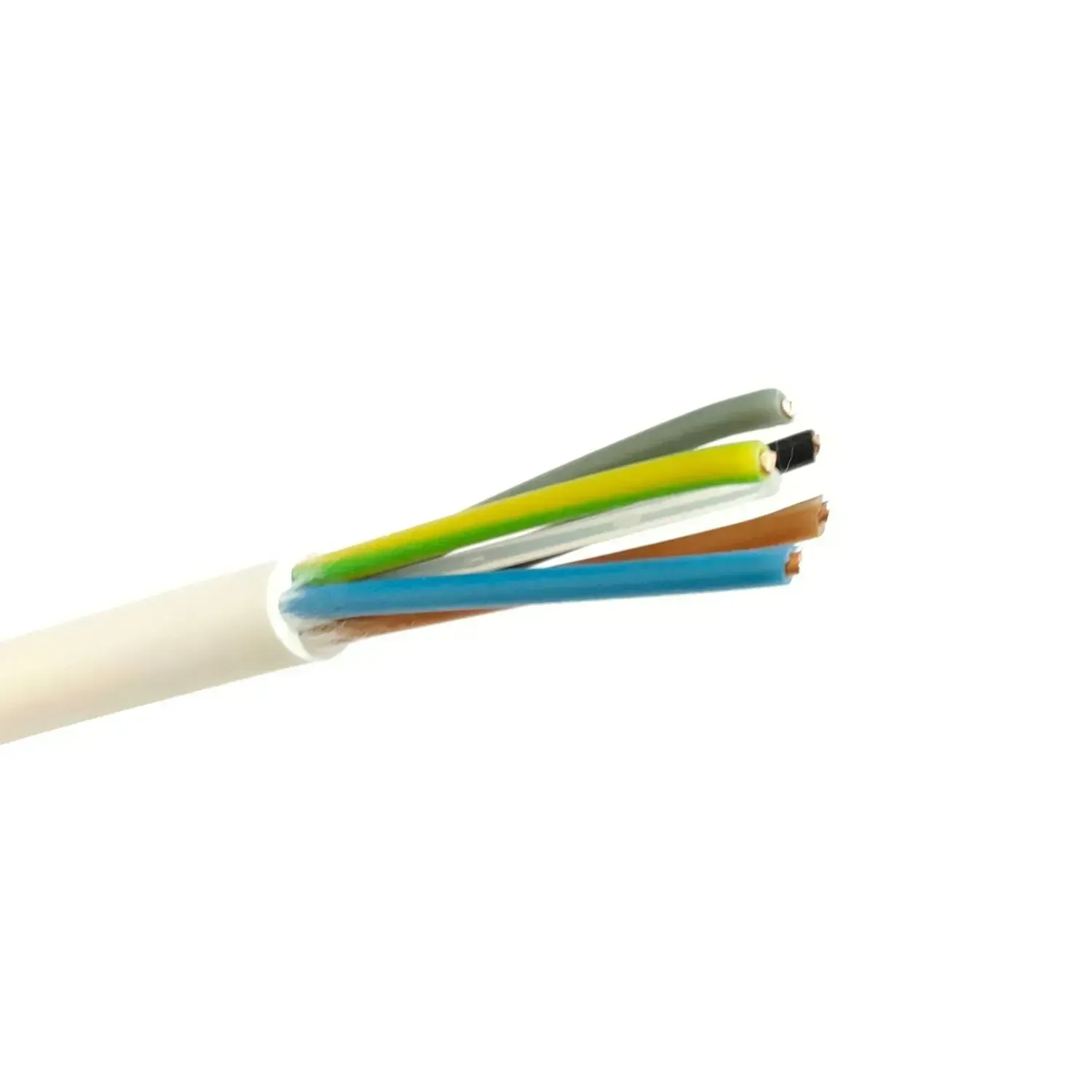

  • Core ID: Brown, Black, Grey, Blue, Green/Yellow
Specifications

Cable Type

NYM-J PVC Wiring Cable

Voltage Rating

300/500V

Conductor Size

10mm²

Number of Cores

5

Conductor Material

Solid copper, Class 1

Stranding

1/3.56mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Current Carrying Capacity

61A

DC Resistance at 20°C

1.83 Ω/km

AC Resistance at 70°C

10 Ω/km

Voltage Drop (3 or 4 Core, 3-Phase AC)

4 mV/A/m

Operating Temperature

-30°C to +70°C

Weight

770 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250

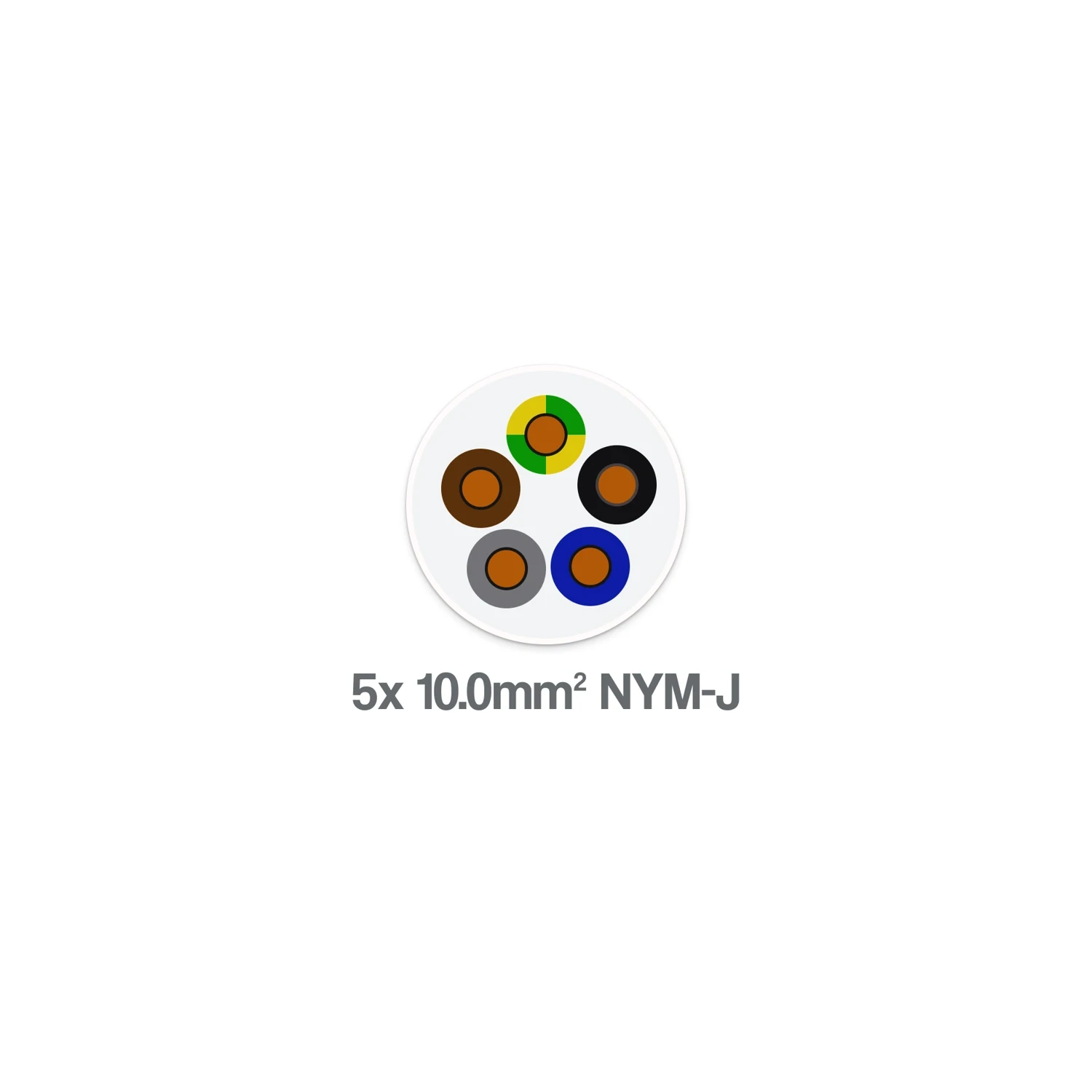

Core Identification

Brown, Black, Grey, Blue, Green/Yellow
