NYM-J 5 Core 1.5mm2 PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 5 Core 1.5mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 515NYM5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.86

Gross price

£2.23

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 5 core 1.5mm² PVC cable on a 500m drum. Solid copper Class 1 conductors with PVC insulation and sheath to IEC 60332-1-2. Rated 300/500V.

Suitable for fixed wiring in dry, moist or wet areas — including under plaster and in concrete. Not suitable for direct sunlight exposure.

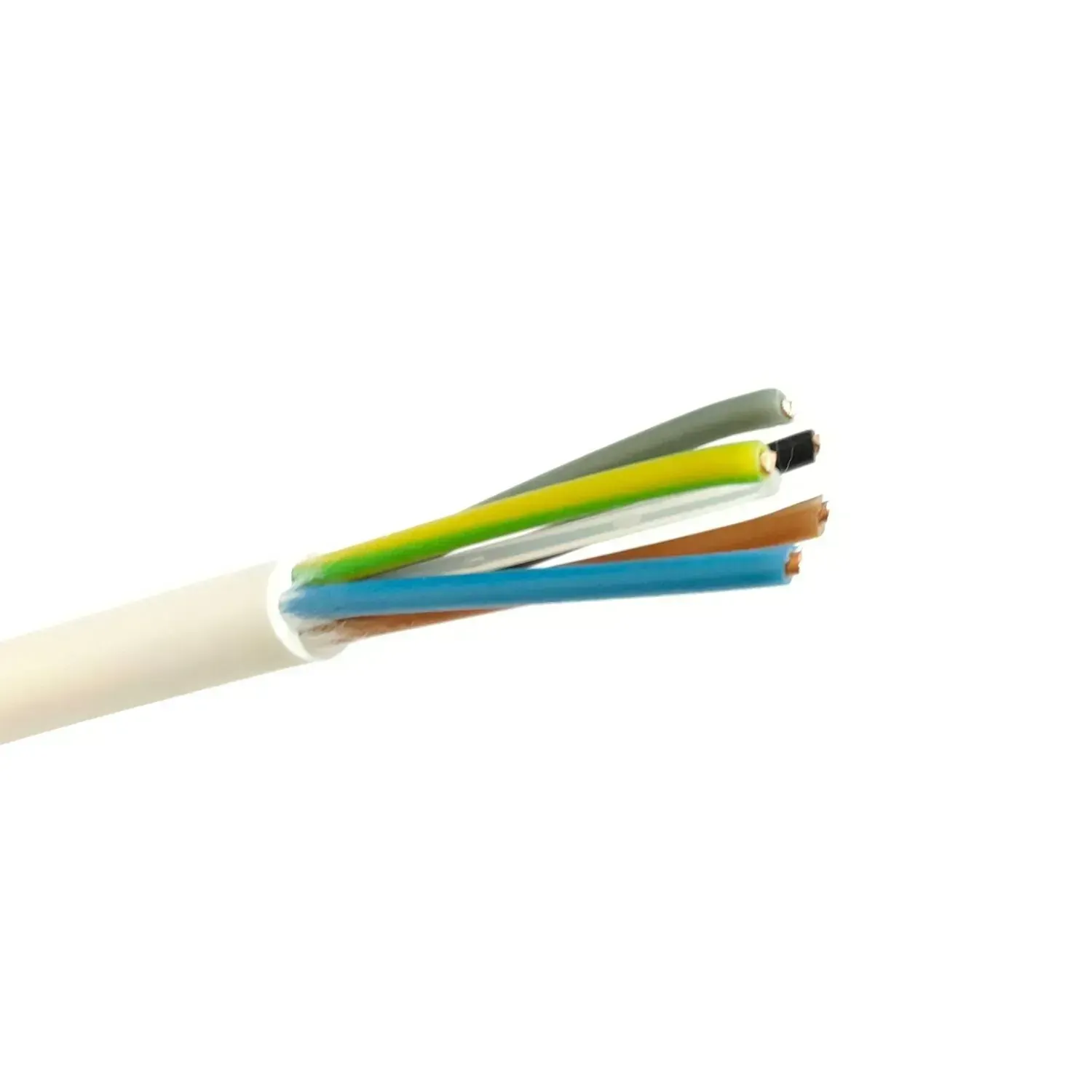

  • 5 cores: Brown, Black, Grey, Blue, Green/Yellow
  • 19A current carrying capacity
  • Operating temp: -30°C to +70°C (install above 0°C)
  • DC resistance at 20°C: 12.1 Ω/km
  • Voltage drop (3⁄4 core, 3-phase AC): 27 mV/A/m
Specifications

Conductor Size

1.5 mm²

Number of Cores

5

Conductor Type

Solid copper (Class 1)

Stranding

1/1.38 mm

Voltage Rating

300/500 V

Current Carrying Capacity

19 A

DC Resistance at 20°C

12.1 Ω/km

AC Resistance at 70°C

1.5 Ω/km

Inductance

0.329 mH/km

Voltage Drop (2 core, DC / SP AC)

31 mV/A/m

Voltage Drop (3/4 core, 3-phase AC)

27 mV/A/m

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

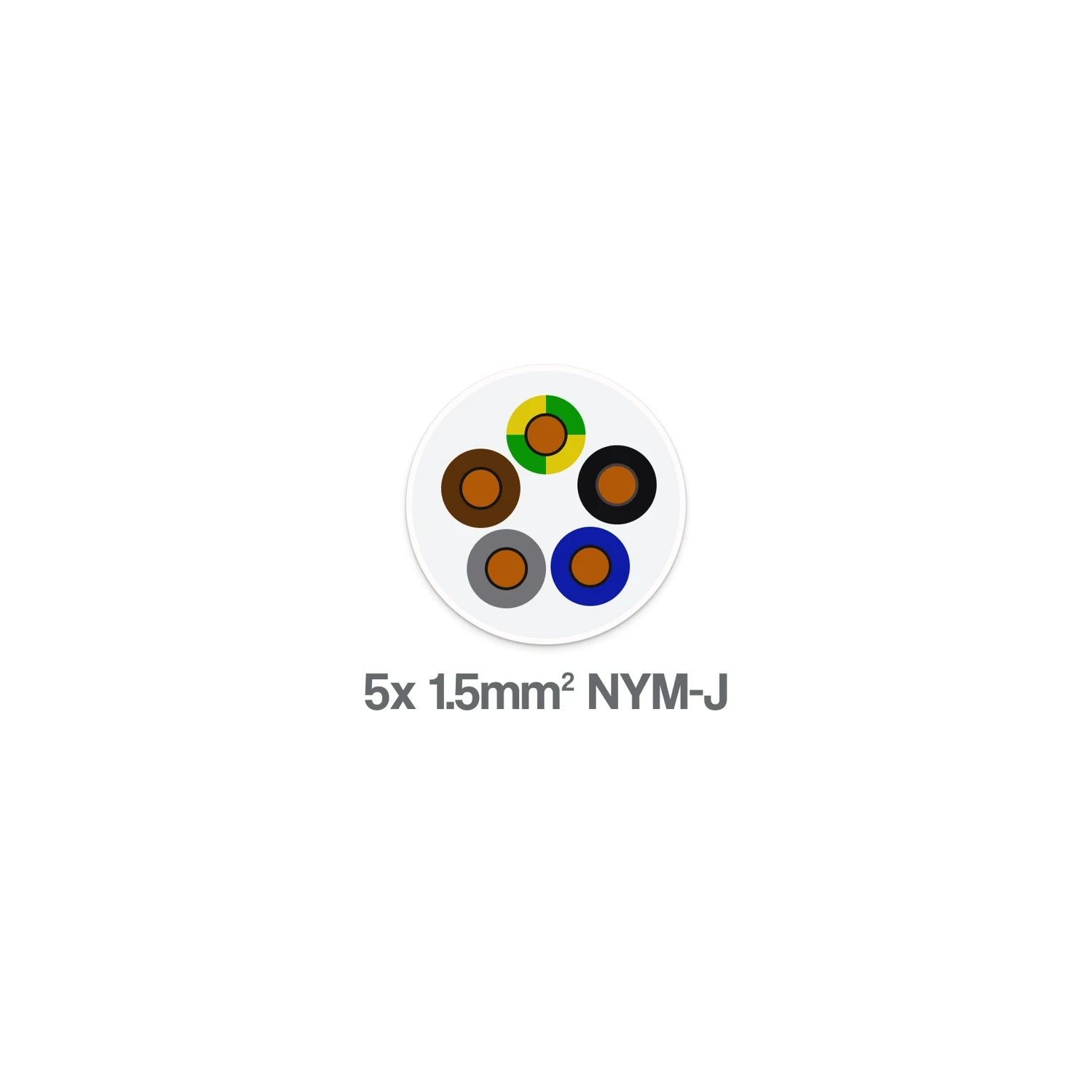

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Operating Temperature

-30°C to +70°C

Minimum Installation Temperature

0°C

Weight

170 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
