NYM-J 5 Core 4mm2 PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 5 Core 4mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 54NYM
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £4.89

Gross price

£5.86

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

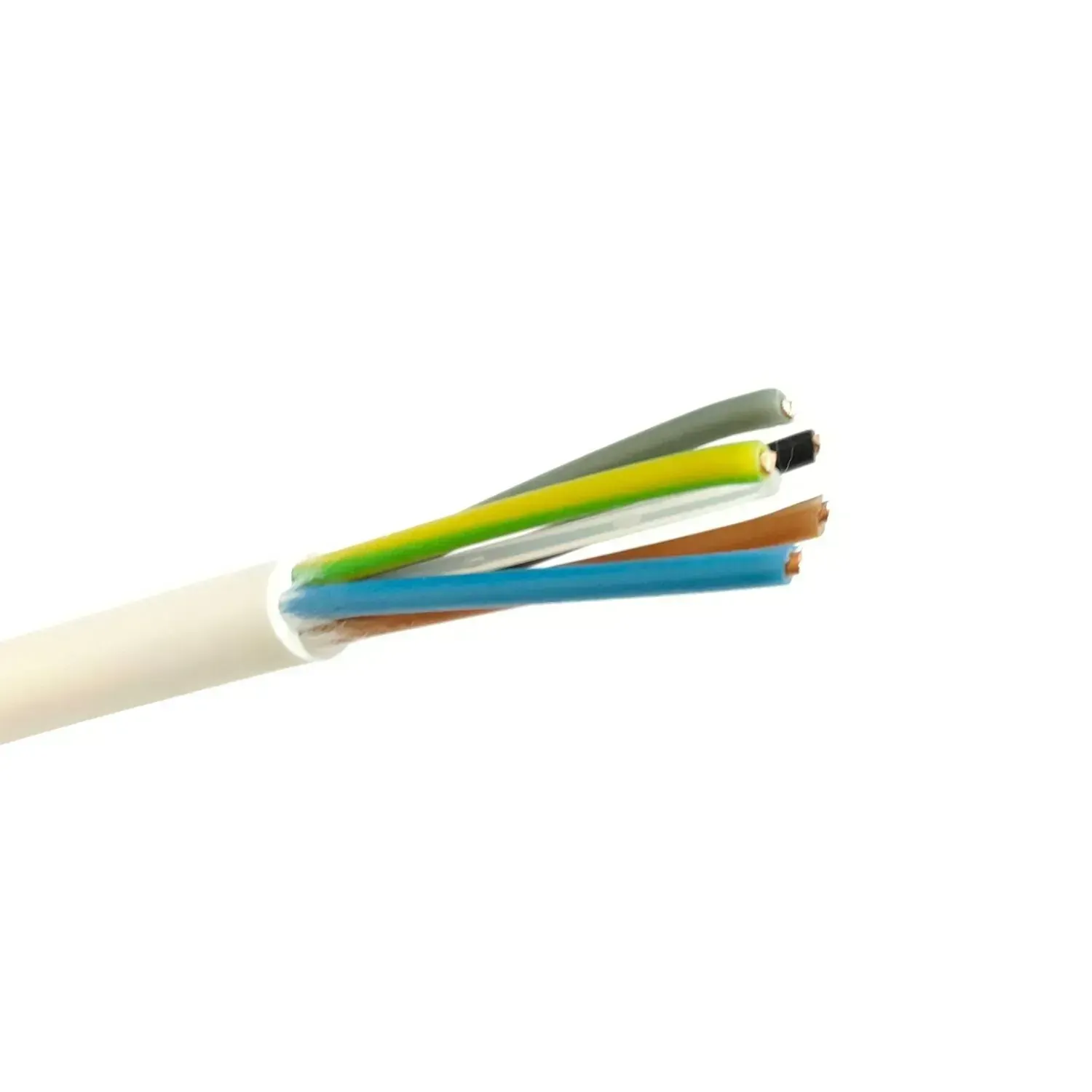

NYM-J 5C 4mm² PVC cable on a 500m drum. Solid copper conductors with PVC insulation and sheath. Rated 300/500V.

Suited to fixed wiring in dry, moist or wet open areas — including under plaster and in concrete. Not suitable for direct sunlight exposure.

  • 34A current carrying capacity

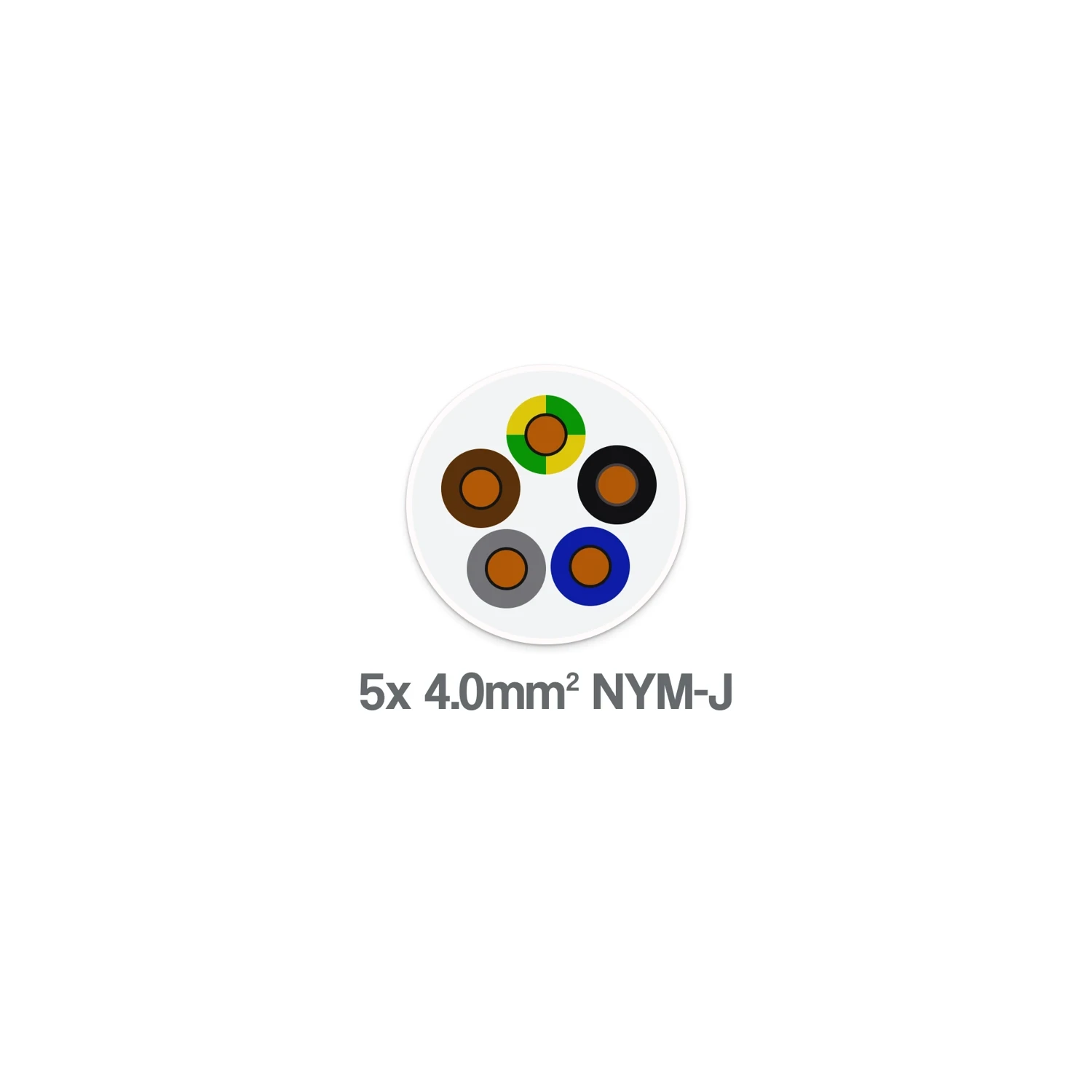

  • Core ID: Brown, Black, Grey, Blue, Green/Yellow
  • AC resistance at 70°C: 4 Ω/km
  • Voltage drop (3⁄4 core, 3-phase AC): 10 mV/A/m
  • Operating temp: -30°C to +70°C (install above 0°C)
Specifications

Conductor Size

4 mm²

Number of Cores

5

Voltage Rating

300/500 V

Current Carrying Capacity

34 A

Conductor Construction

Solid copper, Class 1 (1/2.25 mm)

Insulation

PVC to IEC 60332-1-2

Sheath

PVC to IEC 60332-1-2

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

DC Resistance at 20°C

4.61 Ω/km

AC Resistance at 70°C

4 Ω/km

Inductance

0.297 mH/km

Voltage Drop (3/4 Core, 3-Phase AC)

10 mV/A/m

Voltage Drop (2 Core, Single Phase AC)

12 mV/A/m

Operating Temperature

-30°C to +70°C

Installation Temperature Minimum

0°C

Weight

370 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
