NYM-J 5 Core 2.5mm2 PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 5 Core 2.5mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 525NYM5
GTIN —
Stock status: In stock

priced per meter

Net price: £2.76

Gross price

£3.32

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 5-core 2.5mm² PVC insulated and sheathed wiring cable on a 500m drum. Suits fixed wiring in dry, moist, or wet locations — under plaster, in concrete, indoor or outdoor. Not suitable for direct sunlight exposure.

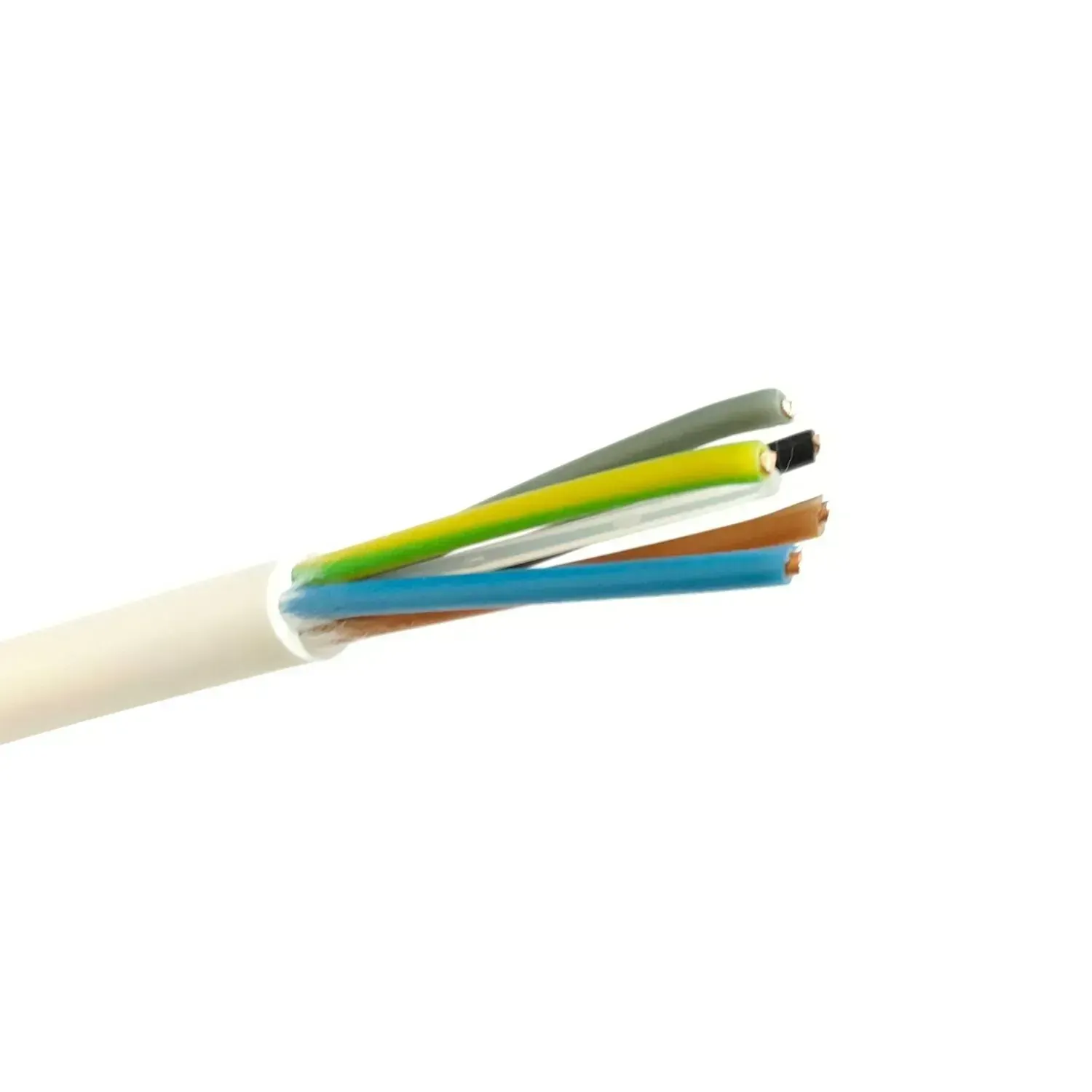

Solid Class 1 copper conductors, brown/black/grey/blue/green-yellow core ID.

  • Voltage rating: 300/500V
  • Current carrying capacity: 25A
  • Operating temp: -30°C to +70°C (install at 0°C min)
  • DC resistance at 20°C: 7.41 Ω/km
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Cable Type

NYM-J

Conductor Size

2.5 mm²

Number of Cores

5

Stranding

1/1.78 mm

Conductor Material

Solid copper, Class 1

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

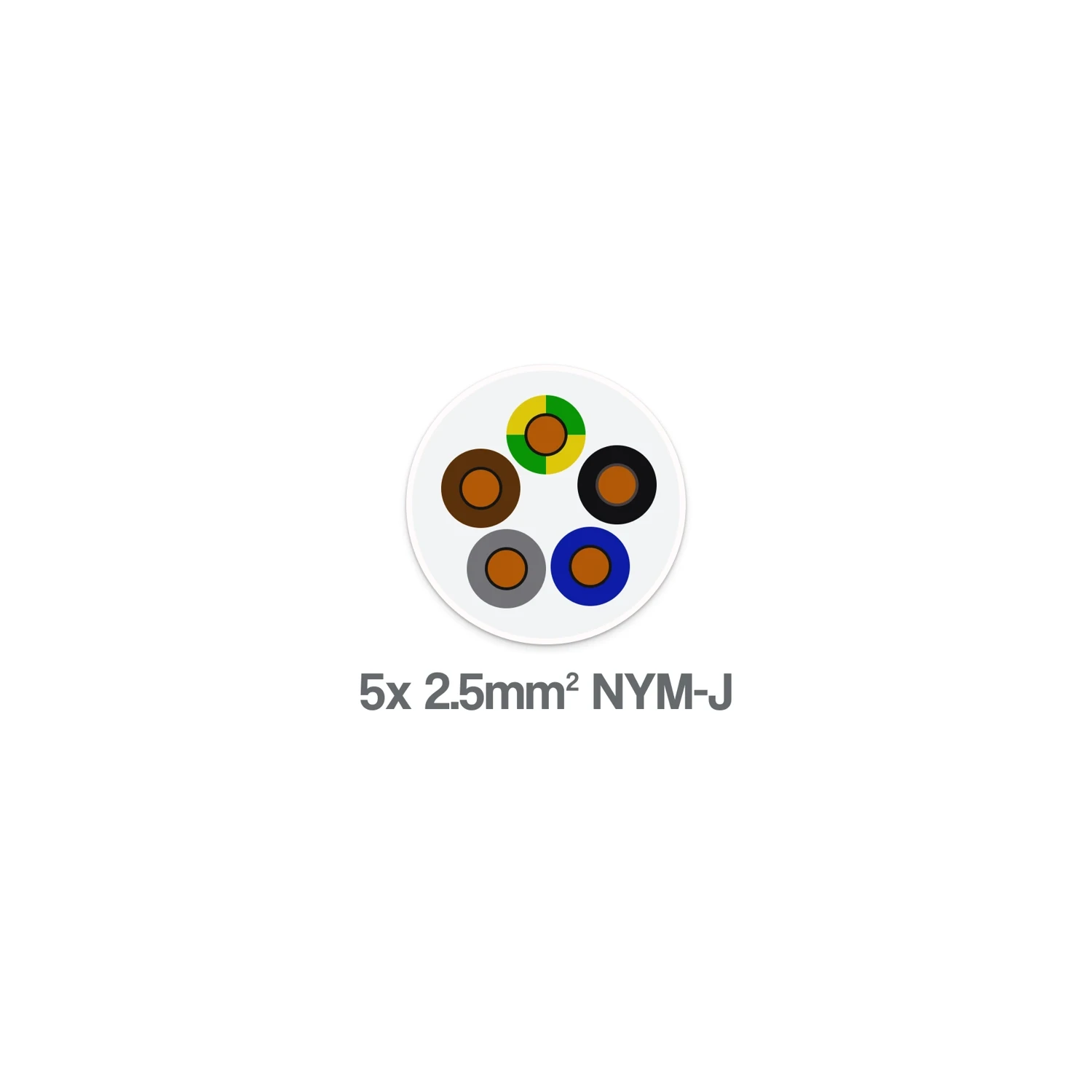

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Voltage Rating

300/500 V

Current Carrying Capacity

25 A

Operating Temperature

-30°C to +70°C

Installation Temperature Minimum

0°C

DC Resistance at 20°C

7.41 Ω/km

AC Resistance at 70°C

2.5 Ω/km

Inductance

0.318 mH/km

Voltage Drop (Single Phase AC)

19 mV/A/m

Voltage Drop (Three Phase AC)

16 mV/A/m

Weight

245 kg/km

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
