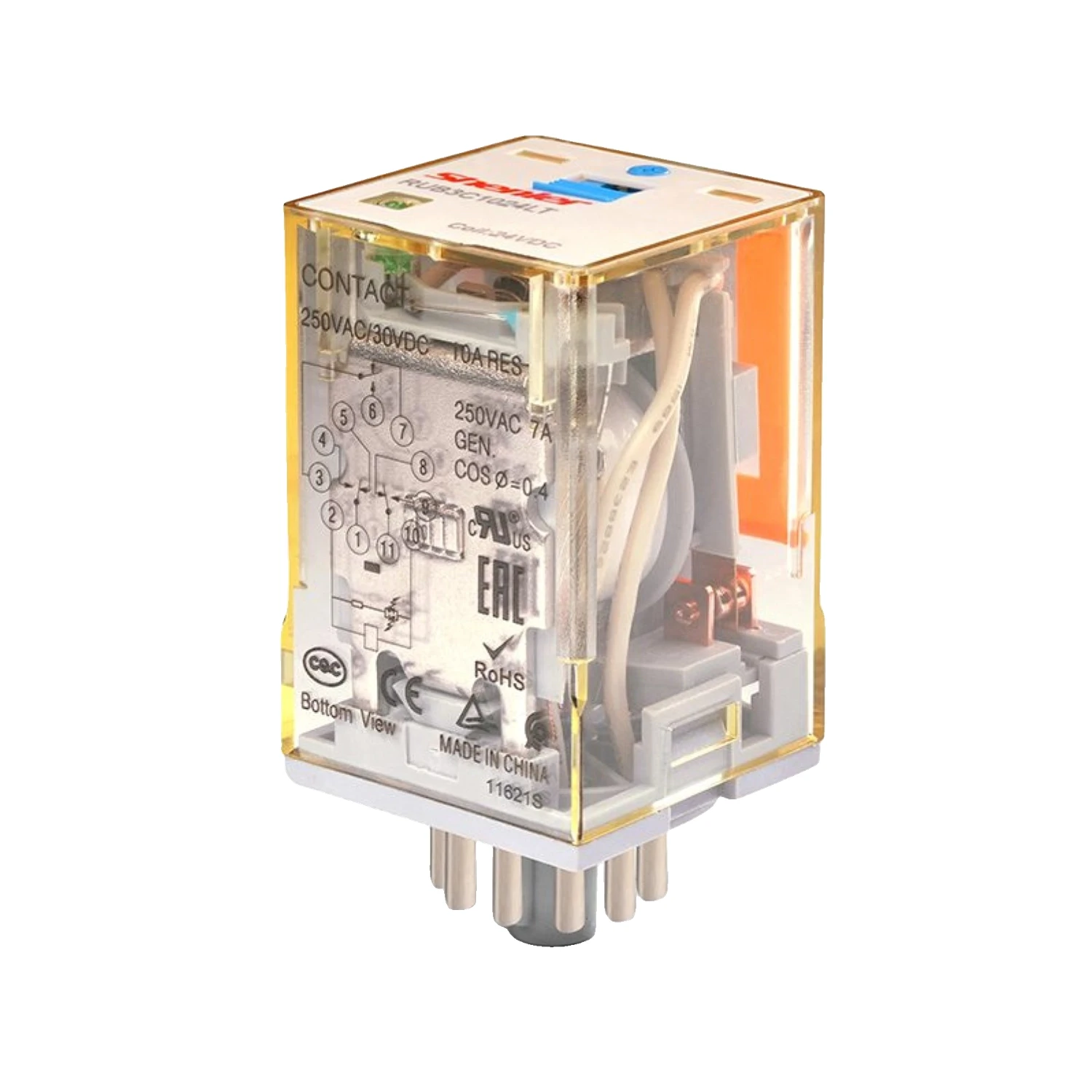

Shenler RUB3C5 48VDC 11-Pin 3CO General Purpose Relay IP20 250VAC
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
11P48VDC
GTIN
—
Stock status:
In stock
priced individually
Net price: £14.97
Gross price
£17.96
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
11-pin plug-in control relay with a 48VDC coil and 3 changeover contacts. Fits standard 11-pin relay bases. Rated for general-purpose switching in industrial control panels.
Silver alloy contacts, lockable test button, non-polarity LED indicator (blue for DC), and inspection window. Coil draws approx. 1.5W at rated voltage.
- Contact rating: 10A resistive at 250VAC / 30VDC
- Max switching capacity: 2500VA resistive, 7A inductive at 250VAC
- Pick-up voltage: ≤80% of rated coil voltage
- Operating temp: -10 to +55°C
- Certifications: UL, CE, UKCA, RoHS
