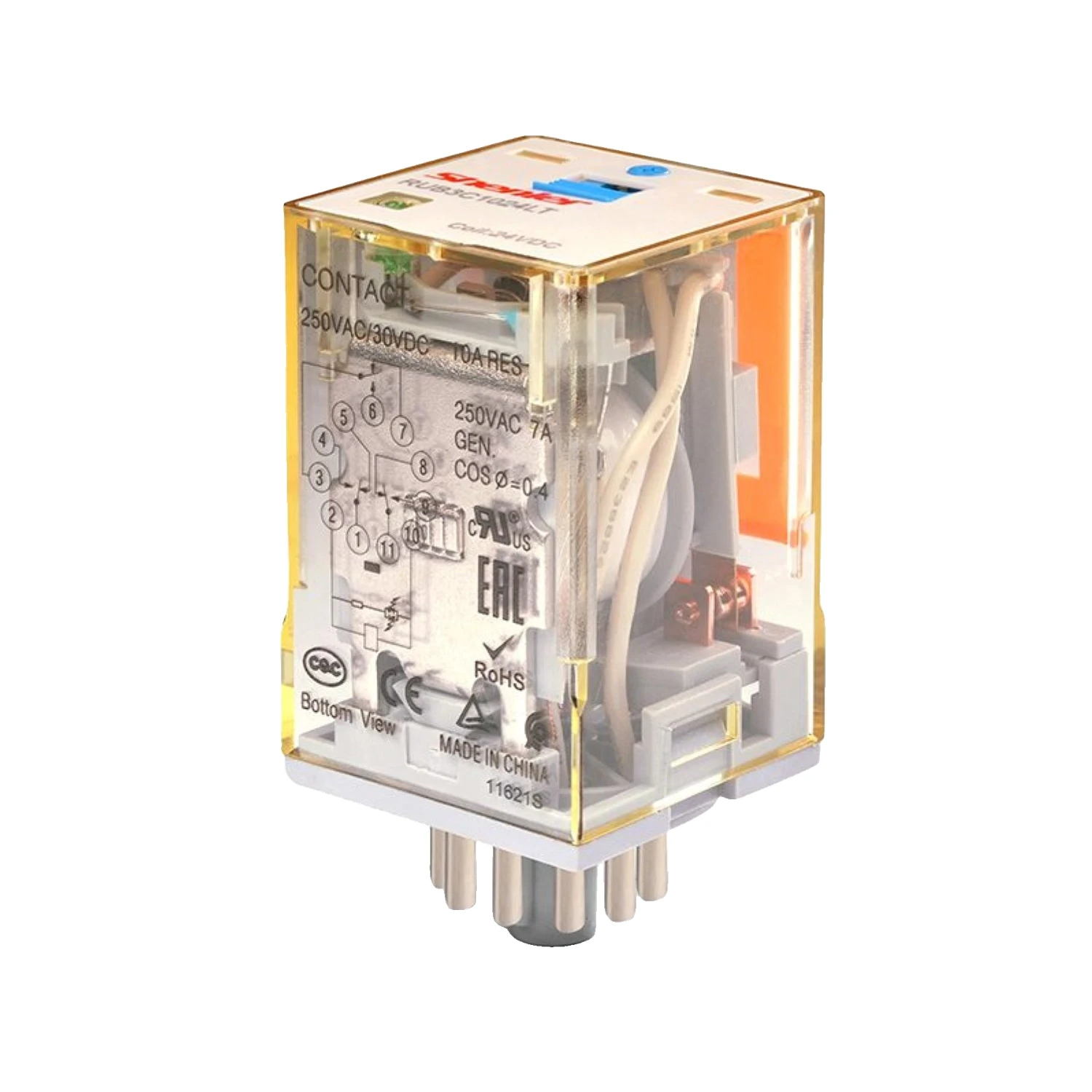

General Purpose Relay 230V AC 11 Pin 3CO 10A IP20 11P230VAC

Photo is representative

General Purpose Relay 230V AC 11 Pin 3CO 10A IP20 11P230VAC

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11P230VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £17.87

Gross price

£21.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

11-pin plug-in general purpose relay for industrial control panels. 230V AC coil, 3CO (3 changeover) contacts. Plugs into standard 11-pin relay sockets.

Built-in non-polarity LED and lockable test button with inspection window. Silver alloy contacts rated at 2500 VA resistive. Suits motor control, HVAC, and general switching applications.

  • Coil: 230V AC / 220V DC
  • Contacts: 3CO, 10A, 250V AC / 30V DC
  • Max switching: 2500 VA resistive
  • Operating temp: -10 to +55°C
  • Certifications: UL, CE, UKCA, RoHS
Specifications

Coil Voltage (AC)

230 V

Coil Voltage (DC)

220 V

Contact Configuration

3CO (3 changeover)

Rated Current

10 A

Rated Voltage (AC)

250 V AC

Rated Voltage (DC)

30 V DC

Max Switching Capacity (Resistive)

2500 VA / 300 W

Contact Material

Ag alloy

Initial Contact Resistance

≤50 mΩ

Electrical Durability

≥10⁶ Cycles at 1800 ops/h

Operate Time

≤30 ms

Release Time

≤20 ms

Protection Level

IP20

Working Temperature

-10 to +55°C

Mounting

Plug-in (11-pin)

Weight

approx. 85 g

Certifications

UL, CE, UKCA, EAC, RoHS
