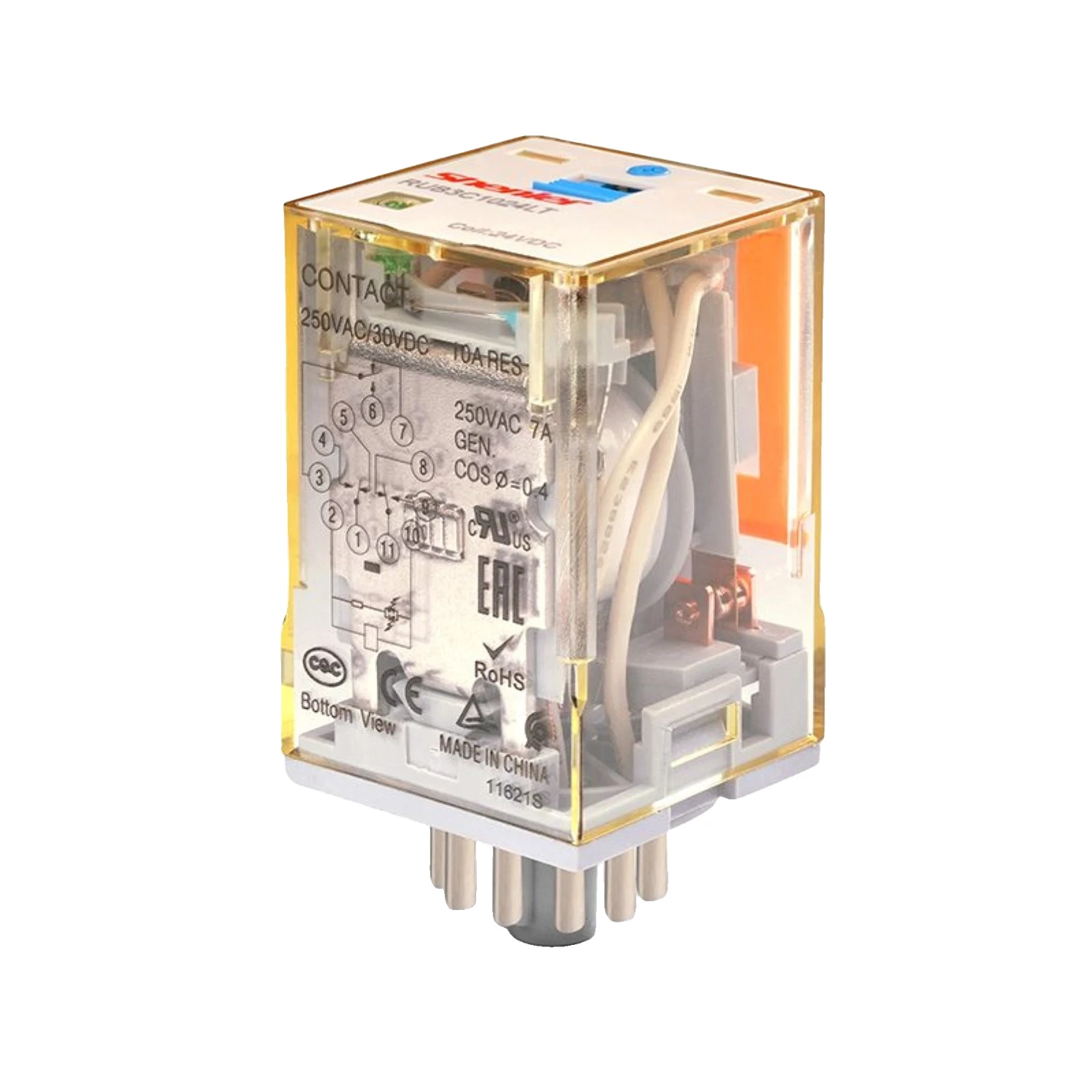

Shenler RUB3C5 110V DC 11 Pin 10A General Purpose Relay IP20

Photo is representative

Shenler RUB3C5 110V DC 11 Pin 10A General Purpose Relay IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11P110VDC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £16.94

Gross price

£20.33

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Plug-in general purpose relay for industrial control panels. 110V DC coil, 11-pin base mount, 3 changeover (3CO) contacts.

Silver alloy contacts, non-polarity LED indicator, and lockable test button. Suits standard 11-pin relay sockets.

  • Coil: 110V DC, 7360Ω, approx. 1.5W
  • Contacts: 3CO, 10A resistive, 250VAC / 30VDC
  • Max switching: 2500VA / 300W
  • Operate time: ≤30ms | Release time: ≤20ms
  • Working temp: -10 to +55°C
Specifications

Coil Voltage

110V DC

Coil Resistance

7360Ω

Coil Operating Power (DC)

approx. 1.5W

Contact Configuration

3 changeover (3CO)

Rated Current

10A

Rated Voltage (Resistive)

250VAC / 30VDC

Max Switching Capacity

2500VA / 300W (resistive)

Contact Material

Ag alloy

Initial Contact Resistance

≤50mΩ

Pin Configuration

11 pin, plug-in

Pick-up Voltage

≤80% of rated (at 23°C)

Drop-out Voltage (DC)

≥10% of rated (at 23°C)

Impulse Withstand Voltage

4000V (1.2/50μs, 2000m altitude)

Insulation Resistance

≥100MΩ at 500VDC

Operate Time

≤30ms

Release Time

≤20ms

IP Rating

IP20

Working Temperature

-10 to +55°C

Storage Temperature

-55 to +85°C

Electrical Durability

≥10⁶ cycles at 1800 ops/h

Mechanical Durability

≥2000 × 10⁶ cycles at 18000 ops/h

Unit Weight

approx. 85g

Certifications

UL, CE, UKCA, RoHS, CCC, EAC
