11 Pin DIN Rail Relay Base 300V 12A for RUB Relays SUB11E

Photo is representative

11 Pin DIN Rail Relay Base 300V 12A for RUB Relays SUB11E

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 11PB
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £7.70

Gross price

£9.23

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

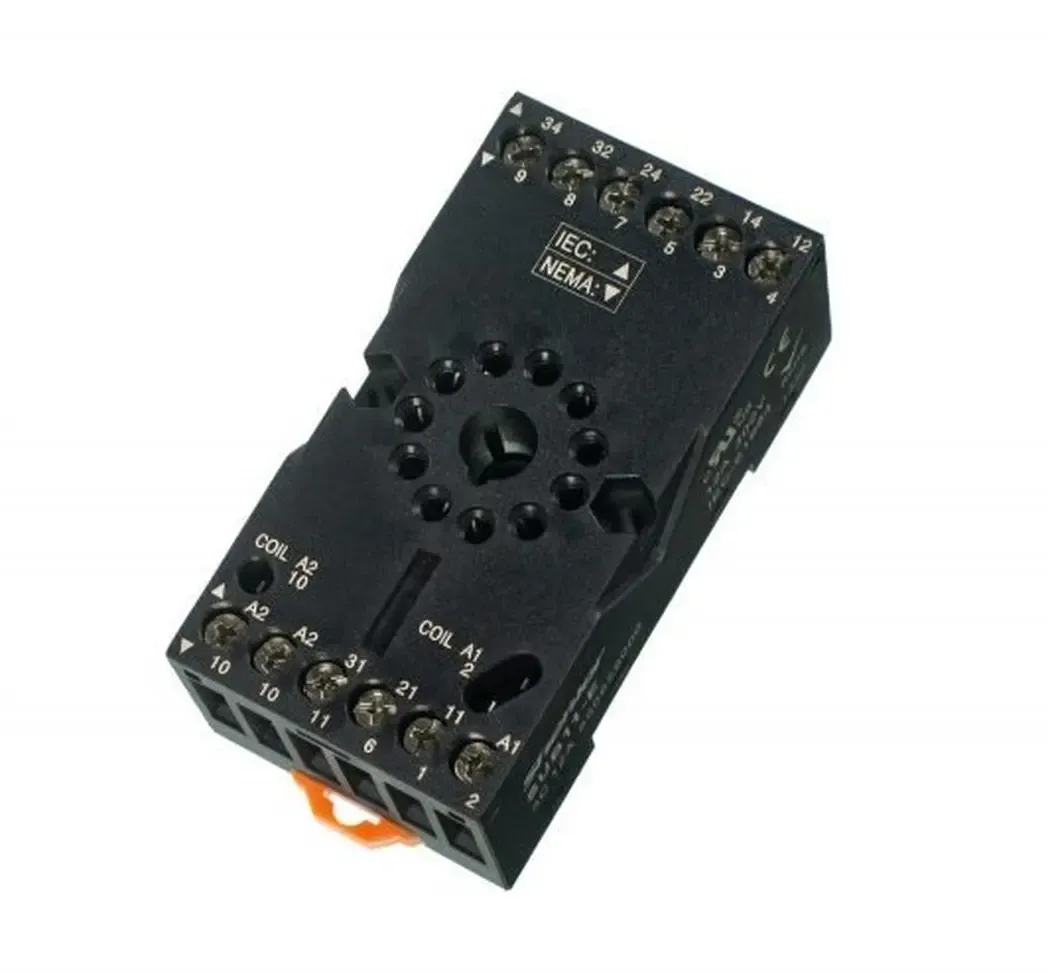

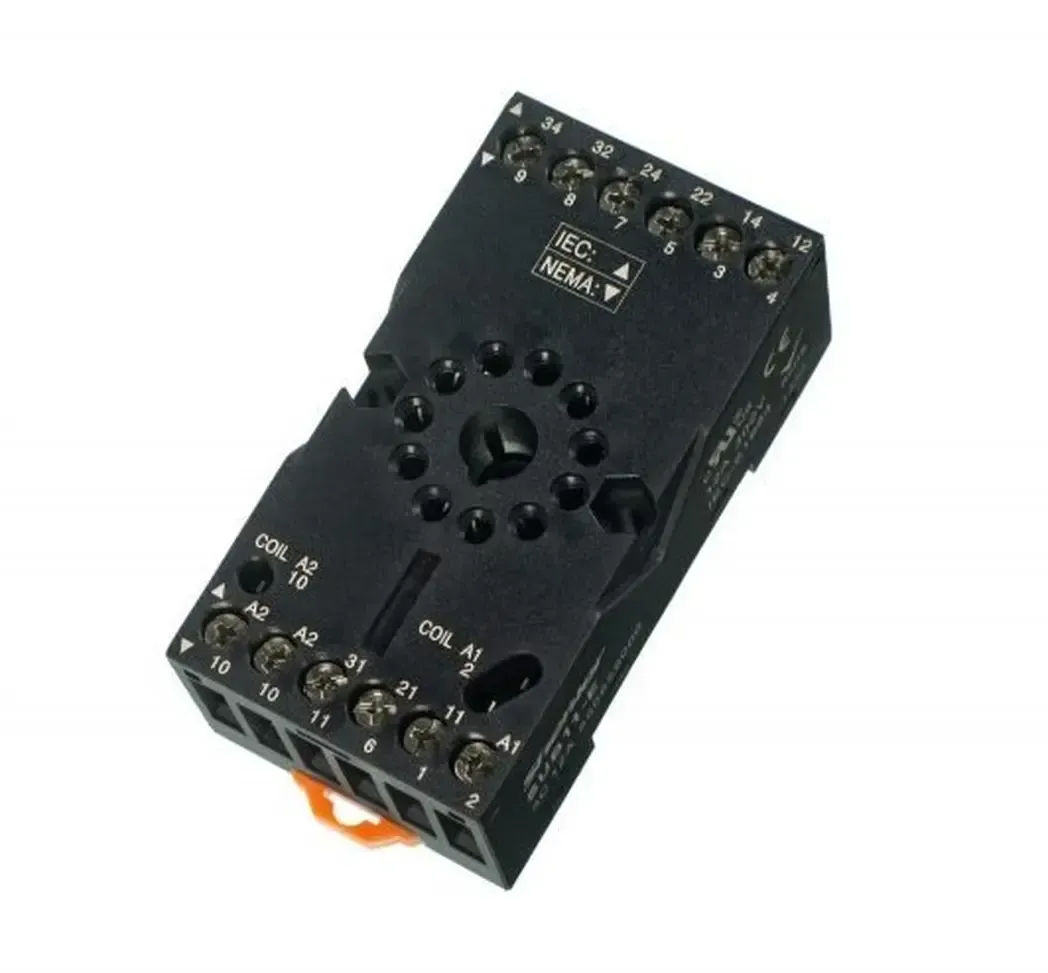

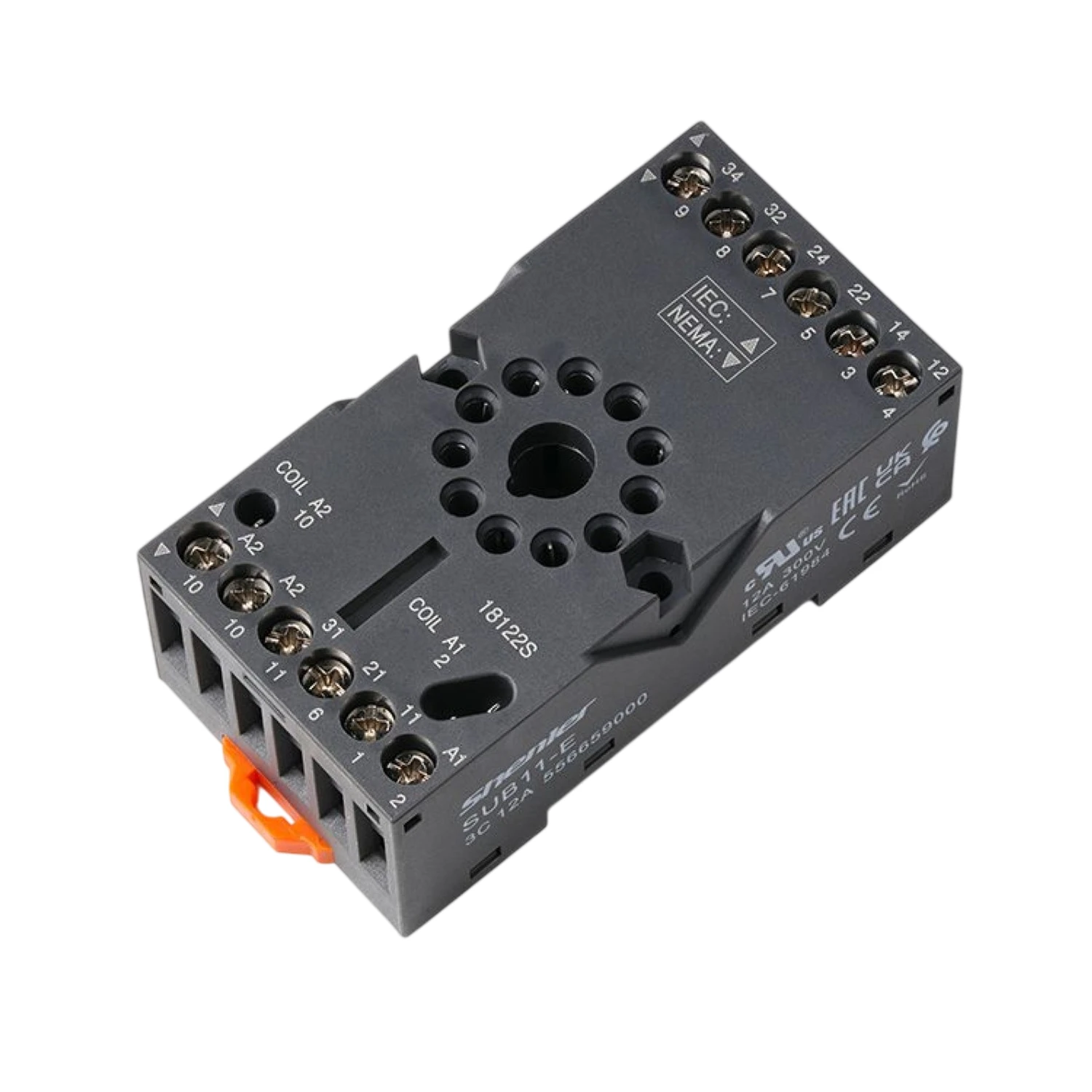

DIN rail socket base for 11-pin RUB series relays. Provides screw terminal connections for relay coil and contacts in panel builds.

  • Rated 300V, 12A
  • Dielectric strength: 2500V/min
  • Wire range: 0.5–2.5mm²
  • Max tightening torque: 1.0Nm
  • Operating temperature: -40°C to +85°C
Specifications

Voltage Rating

300V

Current Rating

12A

Dielectric Strength

2500 V/min

Max Tightening Torque

1.0 Nm

Wire Size

0.5–2.5mm²

Ambient Temperature

-40°C to +85°C

Pin Configuration

11 Pin

Mounting

DIN Rail
