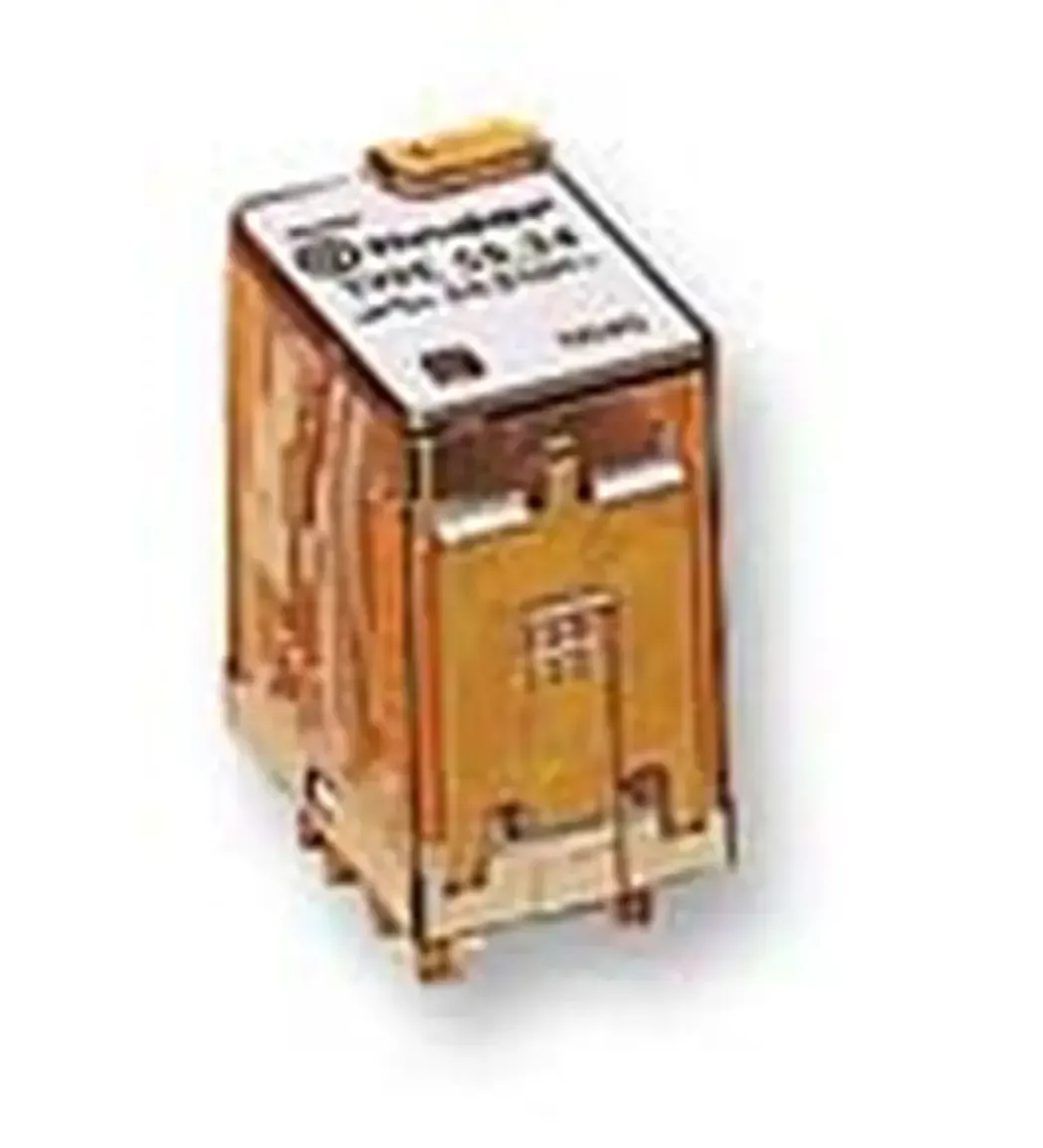

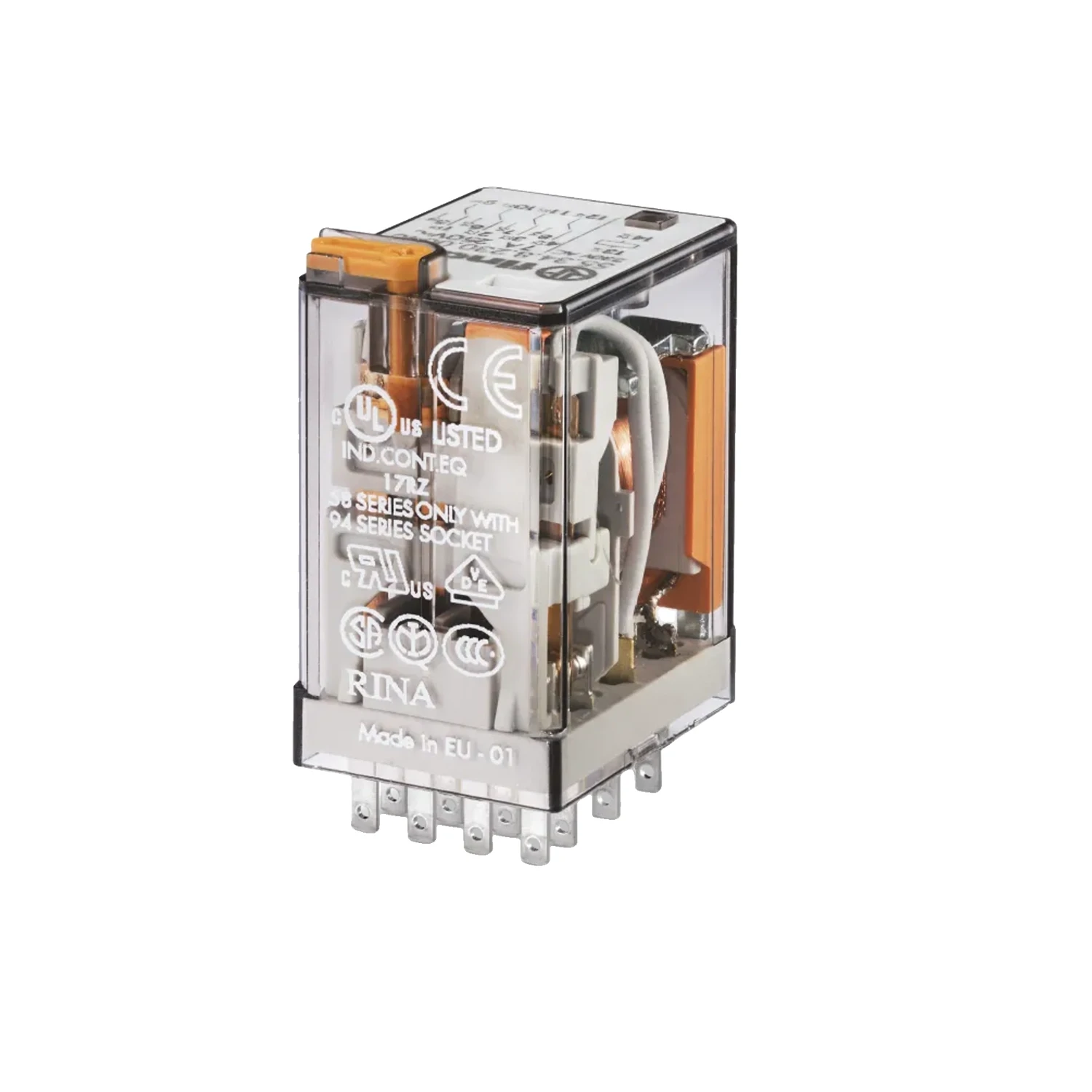

Finder 55.34 24V DC 4PDT 7A 14 Pin Mini General Purpose Plug-In Relay

Photo is representative

Finder 55.34 24V DC 4PDT 7A 14 Pin Mini General Purpose Plug-In Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 14PMR24VDC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £11.30

Gross price

£13.56

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Finder 55.34 series mini plug-in relay. 14-pin, 4-pole changeover, fits 94 Series sockets. Rated 7A at 250V AC.

Coil runs on 24V DC with an operating range of 19.2–26.4V. Available with optional lockable test button and mechanical indicator.

  • Contact rating: 7A, 250V AC
  • Coil voltage: 24V DC (19.2–26.4V range)
  • Insulation coil/contacts: 4kV
  • Electrical life: 150,000 cycles
  • Temp range: -40 to +85°C
Specifications

Nominal Coil Voltage

24V DC

Operating Voltage Range

19.2–26.4V DC

Coil Resistance

600 Ω

Coil Consumption

40 mA

Rated Power

1W

Holding Voltage

12V

Must Drop-out Voltage

2.4V

Contact Configuration

4PDT (4 pole changeover)

Contact Current Rating

7A

Rated Contact Voltage

250V AC

Insulation Coil/Contacts

4kV

Electrical Life

150,000 cycles

Ambient Temperature Range

-40 to +85°C

Dimensions

20.7 × 37.2 × 27.7 mm
