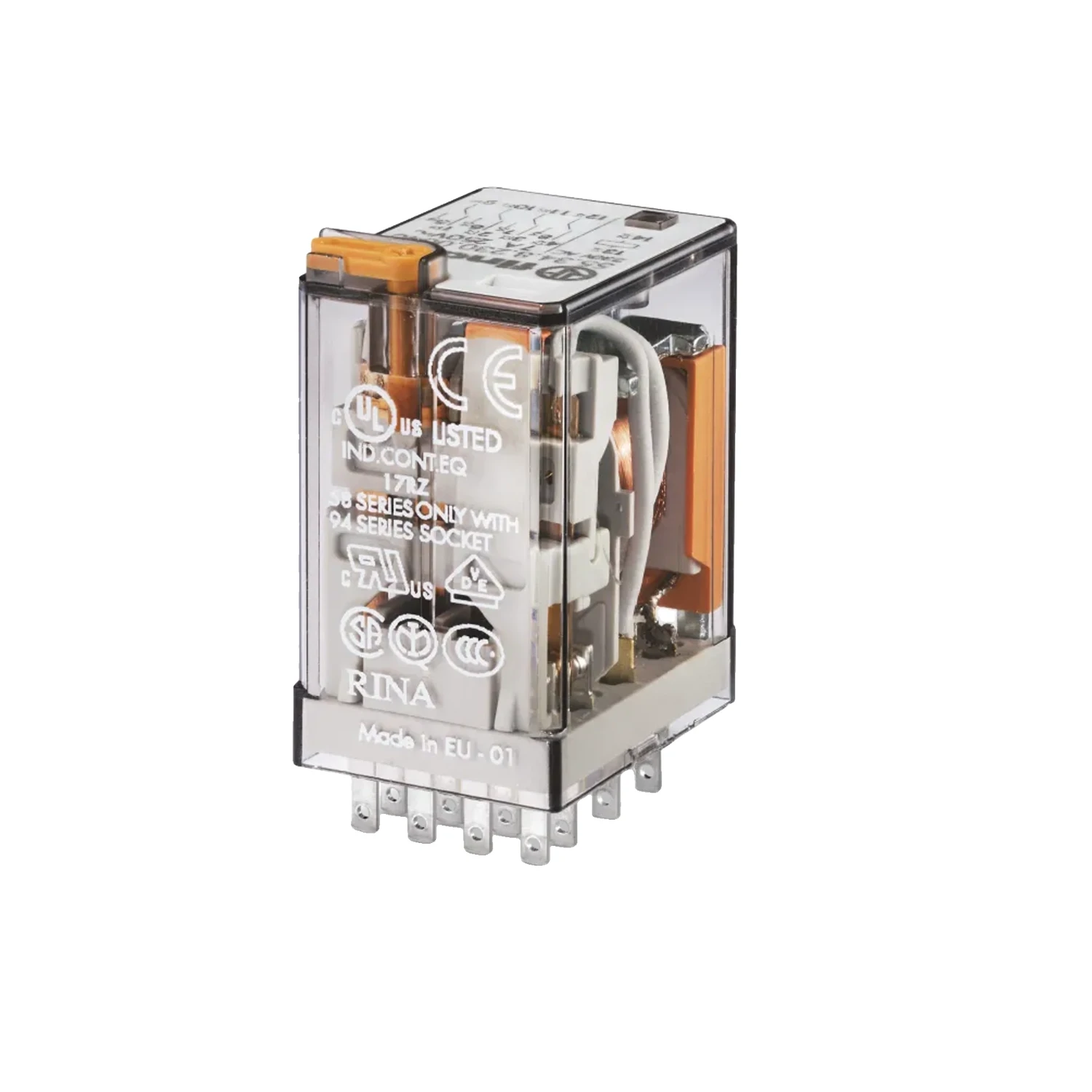

Finder 55.34.8.012.0040 12V AC 4CO 7A 14 Pin Mini General Purpose Relay

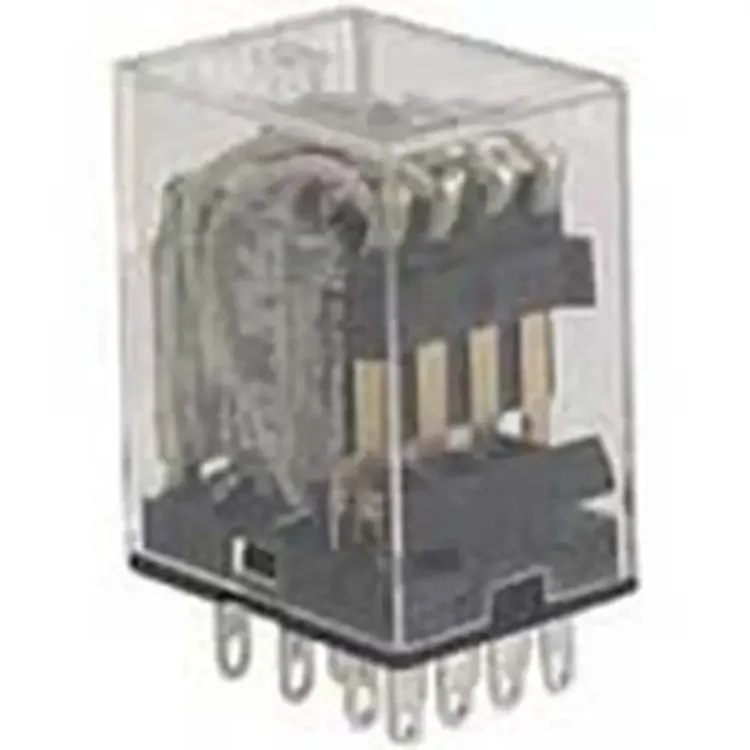

Photo is representative

Finder 55.34.8.012.0040 12V AC 4CO 7A 14 Pin Mini General Purpose Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 14PMR12VAC
GTIN —
Stock status: In stock

priced individually

Net price: £9.95

Gross price

£11.94

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Plug-in mini relay from Finder’s 55 Series. 14-pin format, designed for use with 94 Series sockets. Four changeover (4CO) contacts rated 7A at 250V AC.

AgNi contact material. AC coil at 12V nominal, operating range 9.6–13.2V. Options include lockable test button and mechanical indicator.

  • Contact rating: 7A / 250V AC
  • Coil voltage: 12V AC (9.6–13.2V operating range)
  • Insulation coil/contacts: 4 kV
  • Electrical life: 150,000 cycles
  • Operating temp: –40 to +85°C
Specifications

Contact Configuration

4CO (4 pole changeover)

Rated Contact Current

7 A

Rated Contact Voltage

250 V AC

Coil Voltage (Nominal)

12 V AC

Operating Voltage Range

9.6–13.2 V AC

Rated Power (AC)

1.5 VA

Coil Resistance

50 Ω

Coil Consumption

97 mA

Must Drop-out Voltage

2.4 V

Holding Voltage

9.6 V

Contact Material

AgNi

Insulation Coil/Contacts

4 kV

Electrical Life

150,000 cycles

Ambient Temperature Range

–40 to +85 °C

Dimensions

20.7 × 37.2 × 27.7 mm
