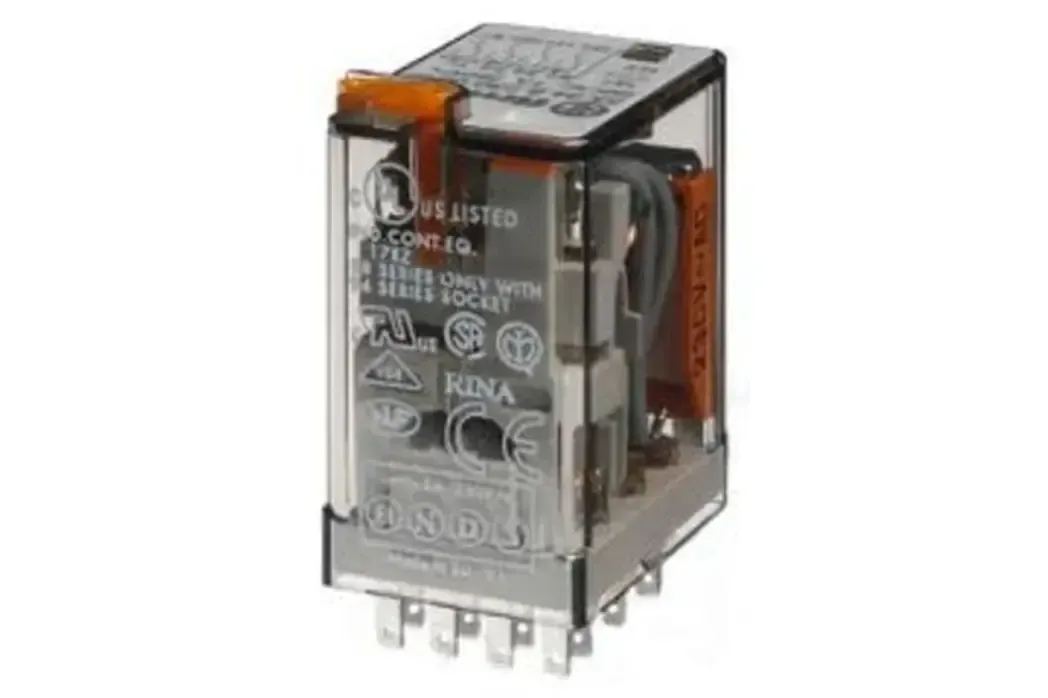

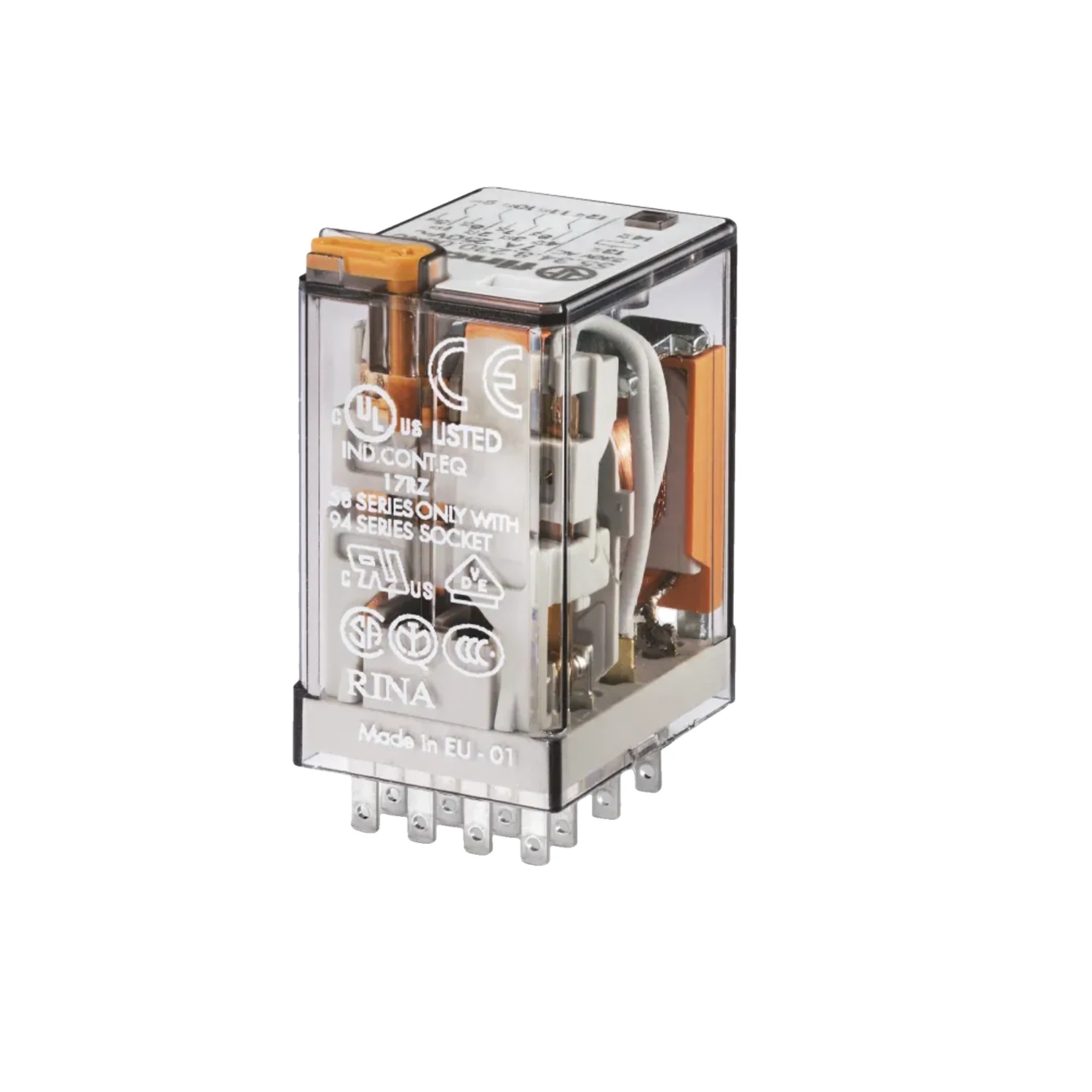

Finder 55.34.8.230.0040 240V AC 14 Pin 4PDT Mini Plug-In Relay 7A 250V

Photo is representative

Finder 55.34.8.230.0040 240V AC 14 Pin 4PDT Mini Plug-In Relay 7A 250V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 14PMR240VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £11.07

Gross price

£13.28

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

14-pin mini plug-in relay from Finder’s 55 Series. Sits in a 94 Series socket — confirm socket is ordered separately. Four pole changeover contacts rated 7A at 250V AC, 230V AC coil.

Standard fit for general purpose control circuits. Coil insulation to contacts rated at 4 kV. Comes with lockable test button and mechanical indicator as standard.

  • Contact config: 4PDT (4CO), AgNi contacts
  • Coil voltage: 230V AC, operating range 184–253V
  • Contact rating: 7A at 250V AC
  • Electrical life: 150,000 cycles
  • Operating temp: −40 to +85°C
Specifications

Coil Voltage (Nominal)

230 V AC

Operating Voltage Range

184–253 V AC

Rated Power (AC Coil)

1.5 VA

Coil Consumption

6 mA

Coil Resistance

17000 Ω

Must Drop-Out Voltage

46 V

Holding Voltage

184 V

Contact Configuration

4PDT (4CO)

Contact Rating

7 A

Rated Contact Voltage

250 V AC

Contact Material

AgNi

Insulation Coil to Contacts

4 kV

Electrical Life

150,000 cycles

Dimensions (W x H x D)

20.7 × 37.2 × 27.7 mm

Operating Temperature

−40 to +85 °C
