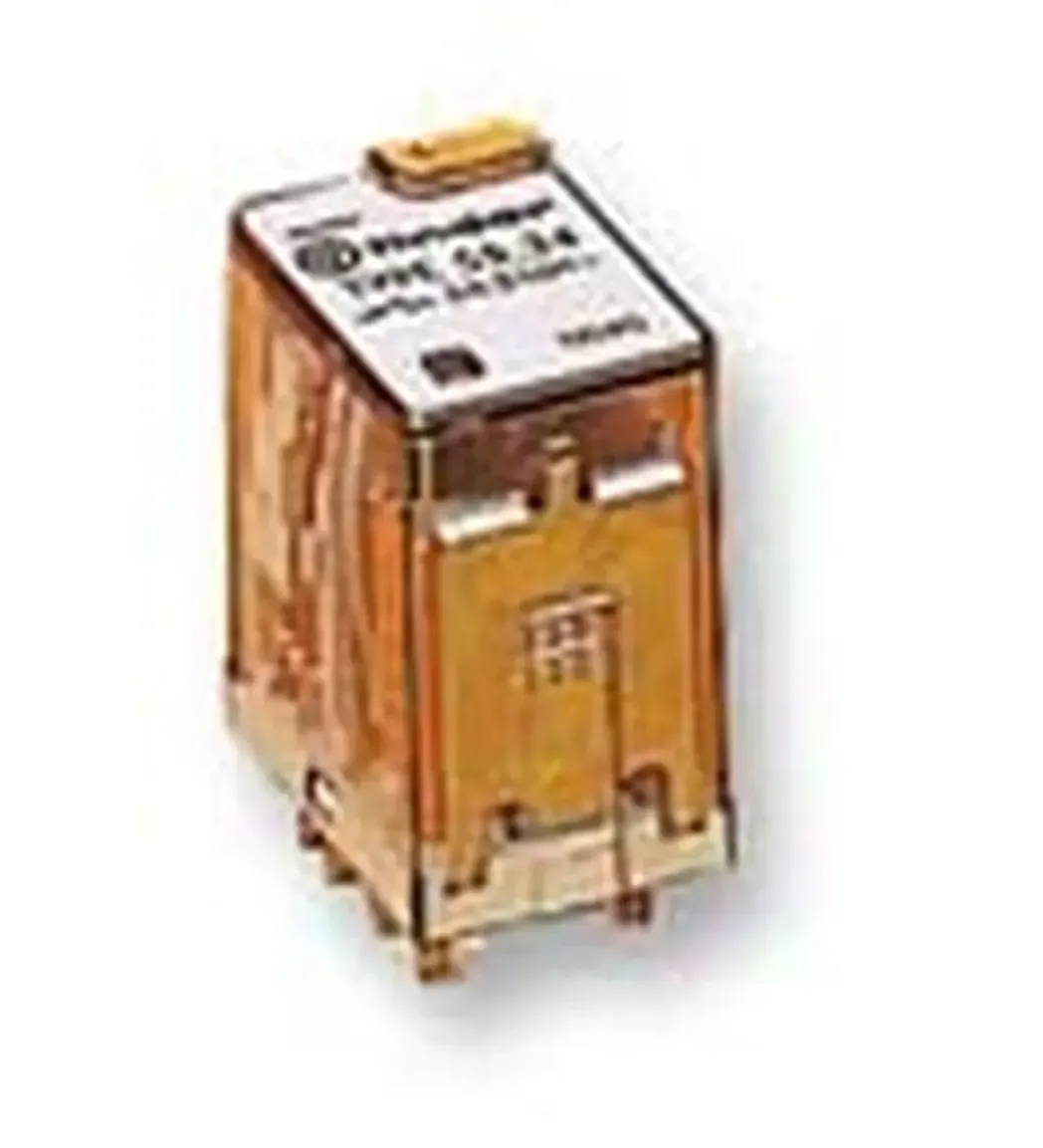

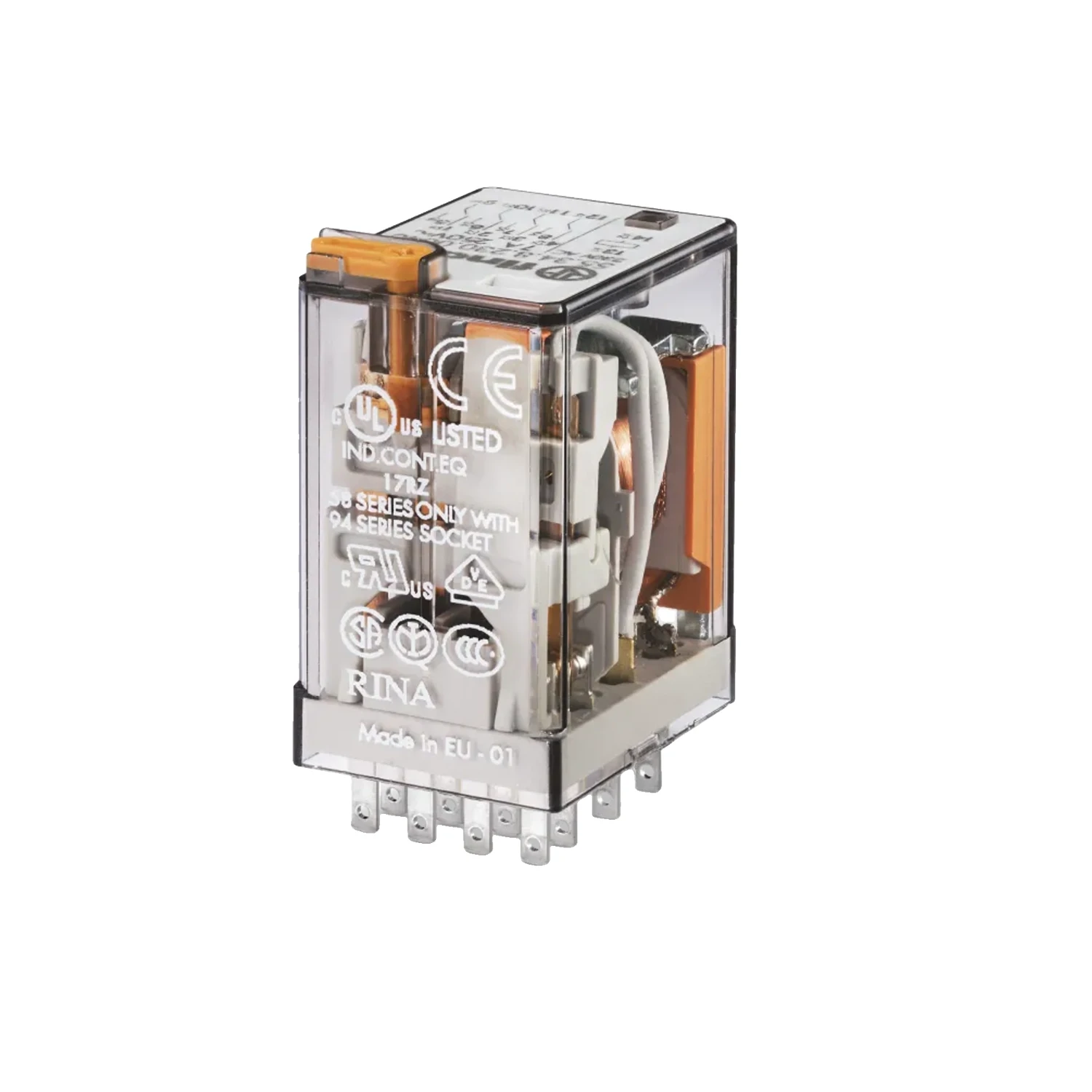

Finder 55.34.9.012.0040 12V DC 4CO 7A 14 Pin Mini General Purpose Plug-in Relay

Photo is representative

Finder 55.34.9.012.0040 12V DC 4CO 7A 14 Pin Mini General Purpose Plug-in Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 14PMR12VDC
GTIN —
Stock status: In stock

priced individually

Net price: £10.06

Gross price

£12.07

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Finder 55.34.9.012.0040 is a 14-pin mini plug-in relay for use with Finder 94 Series sockets. 4-pole CO configuration rated at 7A. Designed for general purpose control circuit switching.

Comes with mechanical indicator as standard and lockable test button option.

  • Coil voltage: 12V DC (operating range 9.6–13.2V DC)
  • Contact rating: 7A, 250V AC
  • Coil resistance: 140Ω, coil consumption: 86mA
  • Electrical life: 150,000 cycles
  • Ambient temp: -40 to +85°C
Specifications

Contact Configuration

4CO (4 pole changeover)

Rated Contact Current

7 A

Rated Contact Voltage

250 V AC

Nominal Coil Voltage

12 V DC

Operating Voltage Range

9.6–13.2 V DC

Holding Voltage

6 V

Must Drop-out Voltage

1.2 V

Rated Coil Power

1 W

Coil Resistance

140 Ω

Coil Consumption

86 mA

Insulation Coil/Contacts

4 kV

Contact Material

AgNi

Electrical Life

150,000 cycles

Ambient Temperature Range

-40 to +85 °C

Dimensions

20.7 x 37.2 x 27.7 mm

Socket Compatibility

94 Series sockets

Certifications

CE, EAC, CSA, UL, UKCA, CCC, RoHS, RIFA
