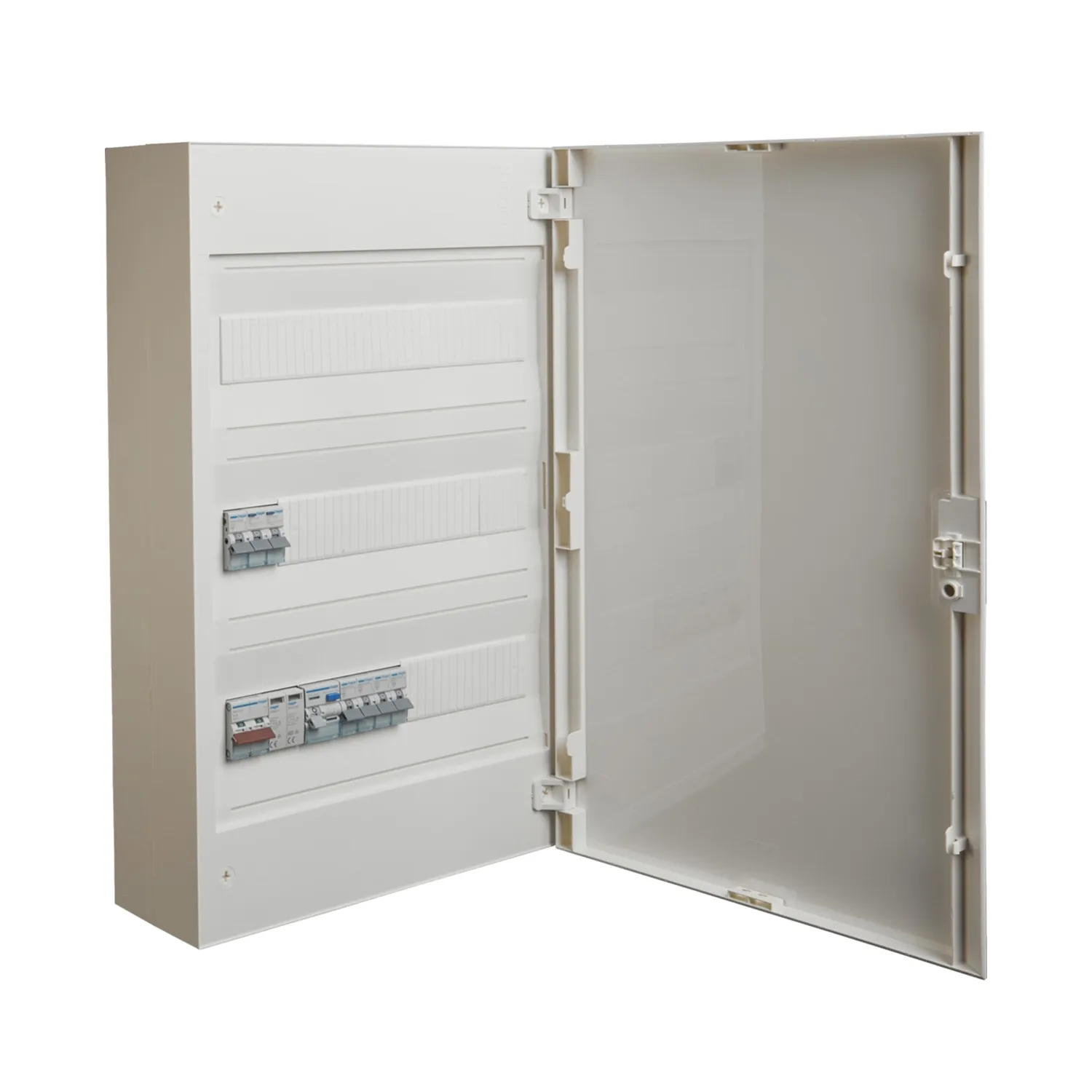

Hager VB9101PSPD Consumer Unit 63A 3Row 54Mod Surface SPD RCBO RCD

Photo is representative

Hager VB9101PSPD Consumer Unit 63A 3Row 54Mod Surface SPD RCBO RCD

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VB9101PSPD
GTIN —
Stock status: 8 in stock

priced individually

More arriving soon

Net price: £282.35

Gross price

£338.82

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager VB9101PSPD is a surface-mounted 3-row consumer unit with 54-module capacity. Comes pre-wired with SPD overvoltage protection, one 4-pole 20A RCD, two 6A lighting RCBOs, and one 32A MCB. 63A main rated.

  • 63A rated current, 54 modules across 3 rows
  • Surface mounted, IP40, IK07 impact resistance
  • Pre-installed SPD, 1× RCD Type A, 2× 6A RCBOs, 1× 32A MCB
  • 600mm H × 370mm W × 145mm D
  • Plain interlock door, pure white polystyrene enclosure
Specifications

Product Code

VB9101PSPD

Brand

Hager

Type

Consumer Unit - 3 Row

Rated Current

63A

Module Capacity

54

Mounting

Surface

IP Rating

IP40

Impact Resistance

IK07

Overvoltage Protection

Yes (SPD)

RCD Type A Included

1 × 4-pole 20A

RCBO Included

2 × 6A Lighting

MCB Included

1 × 32A

Height

600mm

Width

370mm

Depth

145mm

Door

Plain, interlock-able

Colour

Pure white (RAL 9010)

Material

Polystyrene (PS)

What's included

1x SBR280 - 2P 80A Isolator Switch

1x CDA263U - 2P 63A RCD

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

2x ADA306G - B6 6kA RCBO 1M

Surge Protection: 1x SPB015, 1x SPB015N

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs
