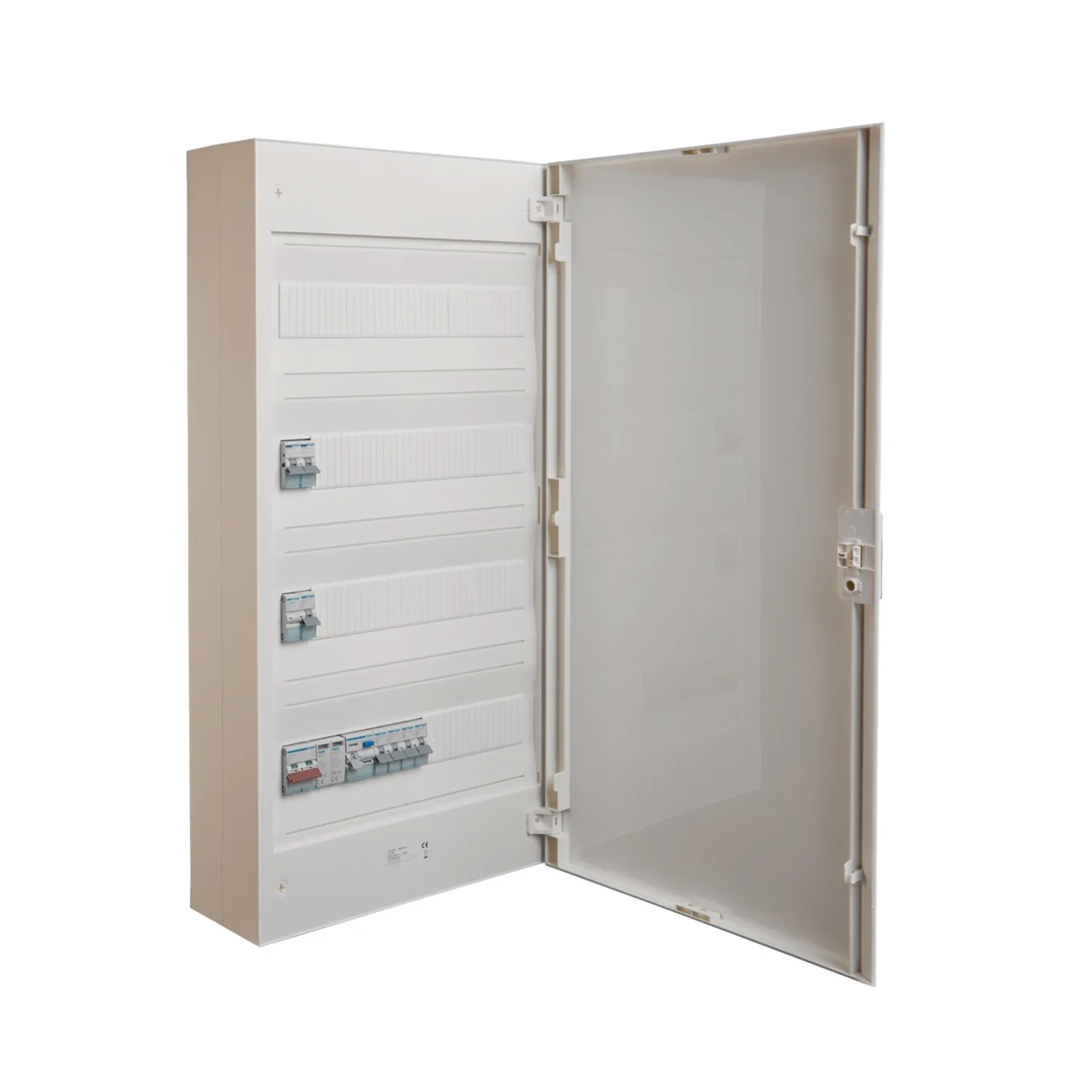

Hager Vega 4-Row 72-Module Consumer Unit 63A SPD RCD RCBO IP40

Photo is representative

Hager Vega 4-Row 72-Module Consumer Unit 63A SPD RCD RCBO IP40

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VB10101PSPD
GTIN —
Stock status: 9 in stock

priced individually

More arriving soon

Net price: £332.87

Gross price

£399.44

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager Vega 4-row surface-mount consumer unit pre-wired and fitted. 72 modules across 4 rows, 63A main switch rated. Comes with SPD overvoltage protection, 1x RCD, and 2x 6A lighting RCBOs already installed. Expandable for additional MCBs and RCBOs.

  • 72-module capacity, 4 rows, 63A main rated
  • SPD fitted, 1x RCD type A, 2x 6A RCBOs pre-installed
  • Surface mount, pure white polystyrene enclosure
  • IP40, IK07 impact resistant, interlock plain white door
  • Dimensions: 750H × 370W × 145D mm
Specifications

Product Code

VB10101PSPD

Module Capacity

72 modules

Number of Rows

4

Main Rated Current

63A

Protection: RCD

1x RCD type A fitted

Protection: RCBOs

2x 6A lighting RCBOs

Overvoltage Protection

SPD fitted

Enclosure Material

Polystyrene (PS), RAL 9010 pure white

IP Rating

IP40

Impact Resistance

IK07

Door

Interlock plain

Dimensions (H×W×D)

750 × 370 × 145 mm

Sidewall Thickness

2.50 mm

Expandable

Yes

What's included

1x SBR280 - 2P 80A Isolator Switch

1x CDA263U - 2P 63A RCD

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

2x ADA306G - B6 6kA RCBO 1M

Surge Protection

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs

Board Accessories & Supplementary Protection
