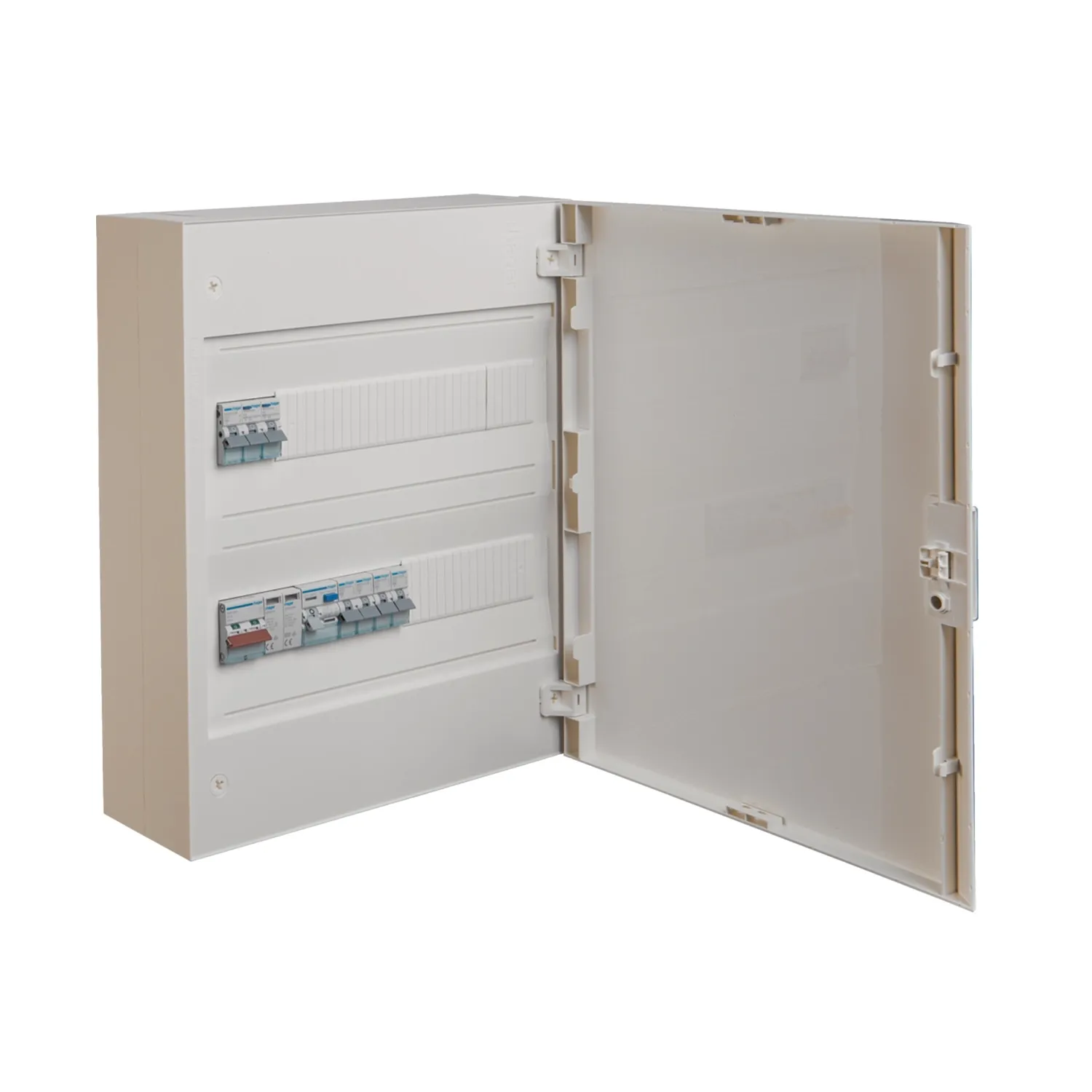

Hager VB8101PSPD 63A Consumer Unit 2-Row 36M Surface SPD RCD RCBO

Photo is representative

Hager VB8101PSPD 63A Consumer Unit 2-Row 36M Surface SPD RCD RCBO

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VB8101PSPD
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £250.54

Gross price

£300.65

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager VB8101PSPD is a 63A rated 2-row surface-mounted consumer unit with 36 modules. Comes factory-fitted with overvoltage protection (SPD), 1x RCD, and 2x 6A lighting RCBOs plus 1x 32A MCB. IP40 rated, pure white polystyrene case with interlock­able plain white door. Suitable for domestic and light commercial installations.

  • 63A main rated capacity
  • 36 modules across 2 rows
  • Pre-populated: 1 RCD, 2x 6A RCBOs, 1x 32A MCB, SPD
  • IP40, surface-mounted
  • 400mm × 475mm × 146mm deep
Specifications

Rated Current

63A

Module Capacity

36 modules

Number of Rows

2

Mounting Type

Surface

IP Rating

IP40

Impact Resistance

IK07

Overvoltage Protection

Yes (SPD)

Pre-Fitted RCD

1x RCD Type A

Pre-Fitted RCBOs

2x 6A Lighting

Pre-Fitted MCB

1x 32A

Width

400mm (18 units)

Height

475mm

Depth

146mm

Colour

Pure white (RAL 9010)

Material

Polystyrene (PS)

Door

Interlock­able, plain

Suitable for Outdoor Use

No

Accessible Phases

1

What's included

1x SBR280 - 2P 80A Isolator Switch

1x CDA263U - 2P 63A RCD

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

2x ADA306G - B6 6kA RCBO 1M

Surge Protection: 1x SPB015, 1x SPB015N

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs
