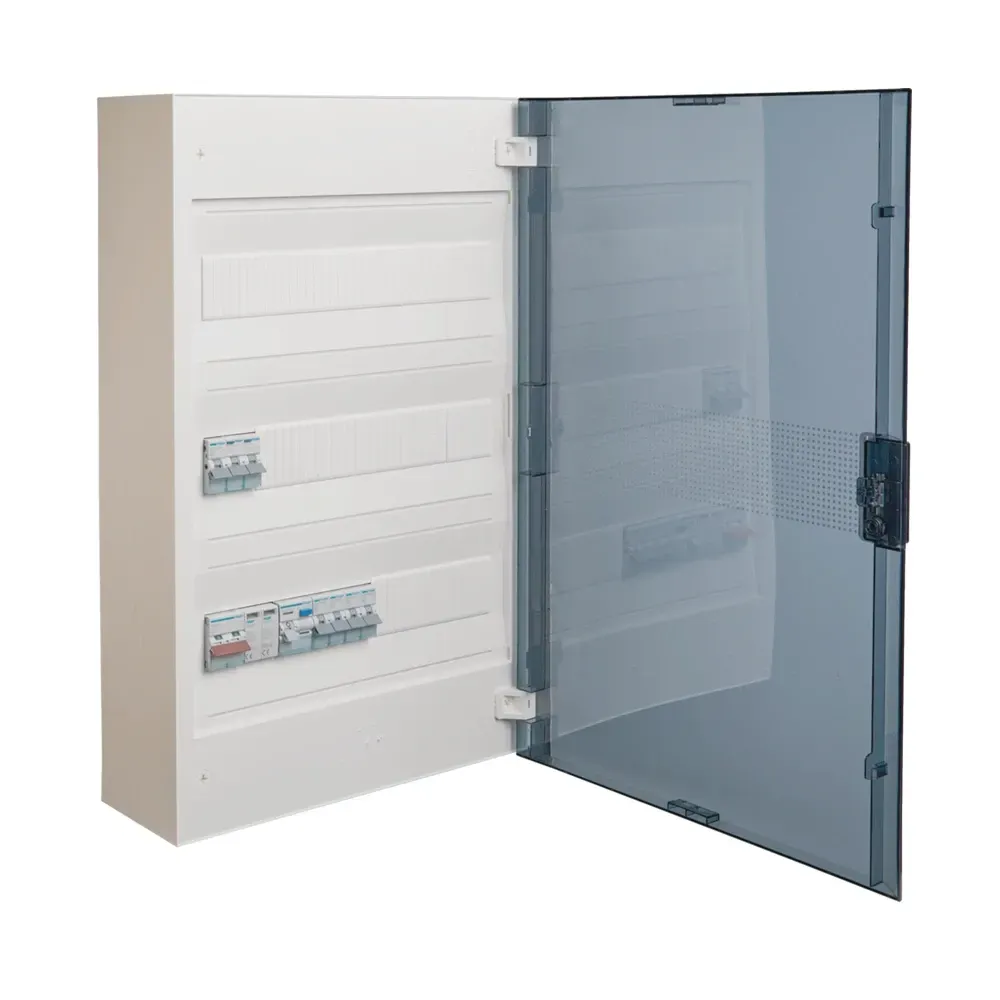

Photo is representative
Hager 3 Row Consumer Board | 63A | 54 Module | Surface Mount SPD Protected
Pre-wired Vega series consumer unit featuring integrated surge protection and dual RCBO circuits. Large capacity surface-mount enclosure ideal for comprehensive residential or light commercial installations.
Configuration:
- 1x 63A RCD (30mA Type AC)
- 1x Type 2 SPD
- 1x 32A MCB (Type B)
- 4x 20A MCB (Type B)
- 2x 6A RCBO (30mA Type B)
Technical Details:
- 54 module capacity (18 modules per row)
- 63A rated current
- No main switch included - separate isolator required
- IP40 / IK07 rated polystyrene enclosure
- Transparent interlockable door
- Surface mount installation
- Pre-wired neutral and earth terminal blocks
- Dimensions: 600H x 370W x 145D mm
- RAL 9010 (Pure white)
Note: This unit does not include a main isolation switch. For compliant installation, consider adding a 63A or 100A main switch (see frequently bought together).
Product Information
Product Features
Box Content
- 1 x Surge Protection
- 1 x RCD 63A
- 2 x 6A RCBO
- 4 x 20A MCB
- 1 x 32A MCB
Documents
Applications & Uses
Commercial Distribution
Ideal for commercial buildings needing organized multi-circuit management, this 3 row consumer board supports safe and clear electrical distribution over multiple areas.
Residential Upgrades
Suitable for larger domestic properties and light commercial installations
Installation Guidelines
Surface Mounting
Ensure a secure, level mounting on a solid wall surface. Allow for adequate space (600x370x145mm) and access to all connection points for future maintenance.
Circuit Configuration
Plan module distribution across the 3 rows to accommodate RCBOs, main switch, SPD, and ensure cable management aligns with regulations.
Standards & Compliance
IP40 Rated
Offers a high degree of protection against solid objects, ensuring compliance with professional installation standards for internal environments.
IK07 Impact Resistance
Tested to withstand mechanical impact, this unit meets IK07 rating, making it suitable for areas where accidental touching or knocks may happen.
Frequently Asked Questions
-
What is the maximum current rating for this Hager 3 row consumer board?
The maximum rated current for this Hager board is 63A, making it suitable for most medium to large residential and commercial distribution requirements.
-
Does this consumer board provide built-in surge protection?
Yes, this Hager consumer board includes integrated overvoltage protection via a built-in Surge Protection Device (SPD) for additional circuit safety.
-
How many modules and rows does this board support?
This unit offers 54 module spaces distributed across 3 rows, providing versatility for complex circuit distribution setups.
-
Is the door transparent, and does it have an interlock feature?
Yes, the consumer board door is transparent for easy visual inspection, and it is interlockable for enhanced safety during maintenance.
-
What are the physical dimensions and mounting requirements?
Dimensions are 600mm (height) x 370mm (width) x 145mm (depth). The board is designed for secure surface mounting only.
