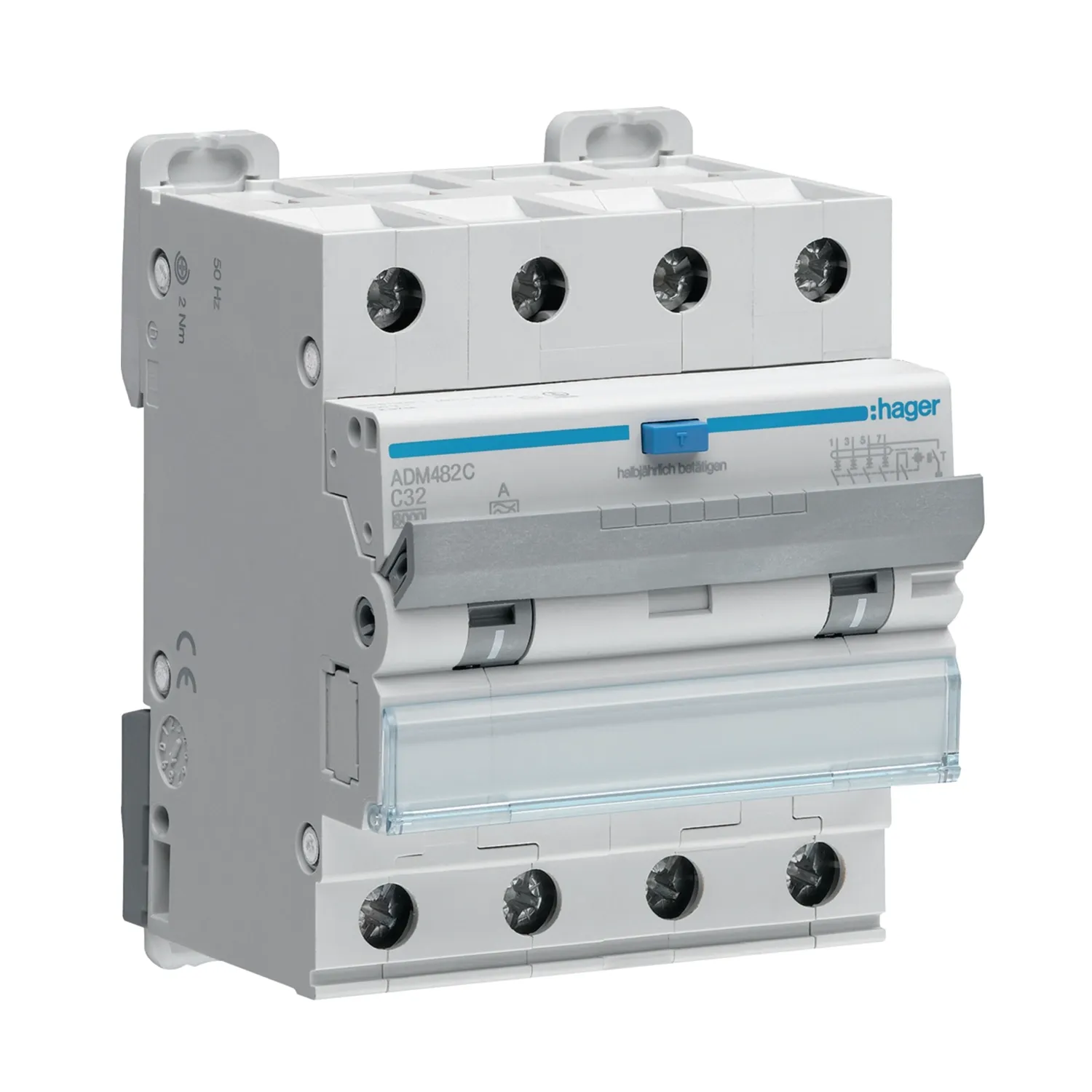

Hager RCBO 4P 32A 30mA C Curve Type A

Photo is representative

Hager RCBO 4P 6kA C-32A 30mA Type A 4 Module - 230-400V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ADM482C
GTIN 3250611020332
Stock status: 9 in stock

priced individually

More arriving soon

Net price: £107.94

Gross price

£129.52

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager 4P RCBO for combined overload and earth leakage protection. Straight swap into domestic and commercial distribution boards. Clips onto DIN rail, takes up 4 modules.

  • 32A C-curve trip characteristic
  • 30mA Type A residual current protection
  • 6kA breaking capacity to IEC 60898-1
  • 230-400V AC rated voltage
  • IP20 enclosure rating
Specifications

Type

RCBO

Poles

4P

Protected Poles

4

Trip Curve

C

Current Rating

32 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

230-400 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

4 modules

Power Loss

14.60 W

Overvoltage Category

III (IEC 60947-1)

Energy Limitation Class

I²t Class 3

360° Mounting

Yes

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1-16 mm²

Rigid Conductor

1-25 mm²

Tightening Torque

2 Nm

Height

84 mm

Width

71 mm

Depth

70 mm

Operating Temperature

-25 to +40 °C

RoHS

Yes

Documents

datasheet Hager ADM482C Datasheet
