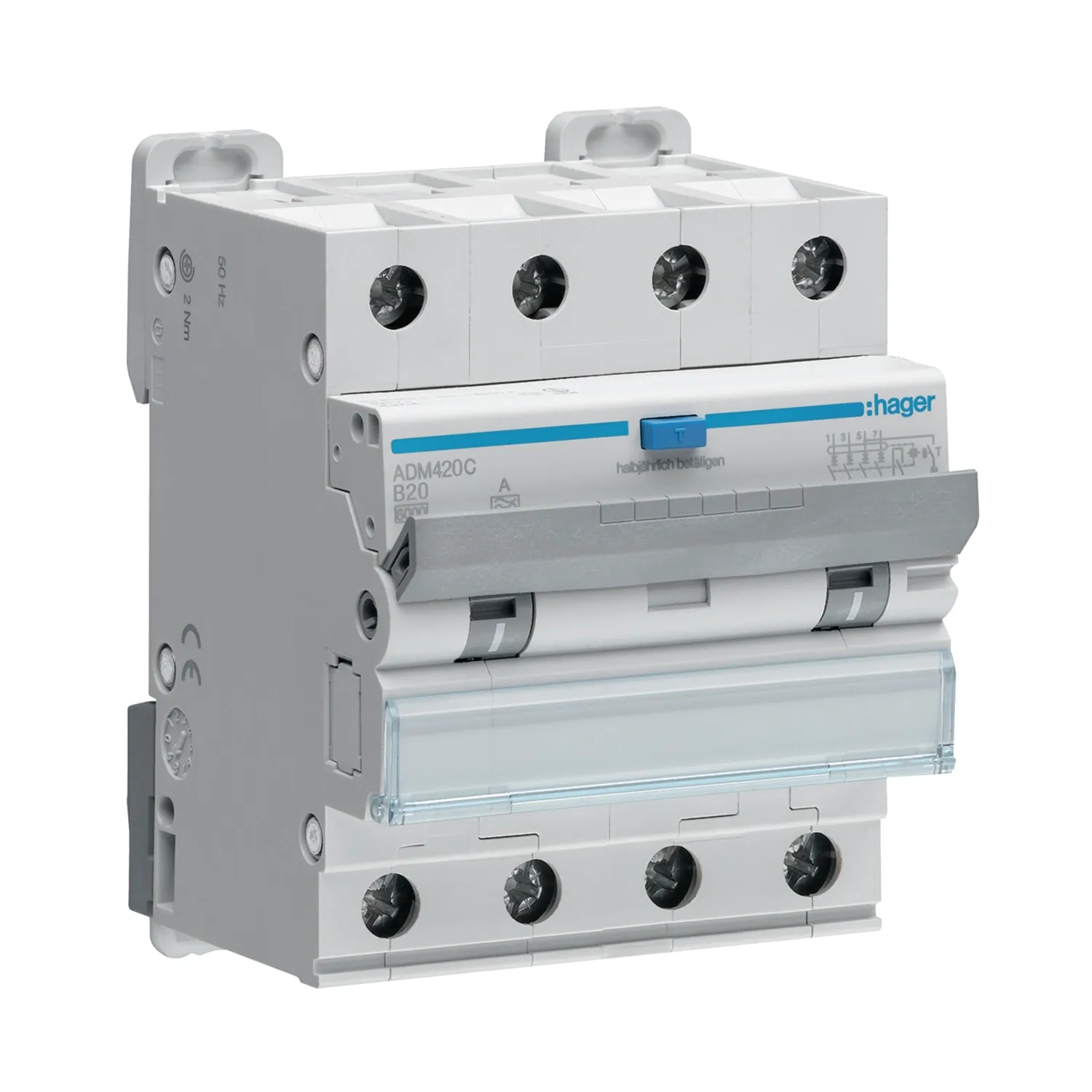

Hager RCBO 4P 20A 30mA B Curve Type A

Photo is representative

Hager RCBO 4P 20A B-curve 30mA Type A 6kA 230-400V AC IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ADM420C
GTIN 3250611020233
Stock status: In stock

priced individually

More arriving soon

Net price: £107.94

Gross price

£129.52

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager ADM420C 4P RCBO with B-curve trip and 30mA Type A protection. Solid RCBO for final circuits requiring 4-pole residual current protection. Clips onto DIN rail, takes up 4 modules.

  • 6kA breaking capacity to IEC 60898-1
  • 230-400V AC rated voltage
  • Operating range: -25°C to +40°C
  • IP20 enclosure rating
  • 360° mounting capability
Specifications

Type

RCBO

Poles

4P

Protected Poles

4

Curve

B

Current Rating

20 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Rated Voltage

230-400 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

4 modules

Power Loss

11.70 W

Overvoltage Category

III (IEC 60947-1)

360° Mounting

Yes

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1-16 mm²

Rigid Conductor

1-25 mm²

Tightening Torque

2 Nm

Height

84 mm

Width

71 mm

Depth

70 mm

Operating Temperature

-25 to +40 °C

RoHS

Yes

Documents

datasheet Hager ADM420C Datasheet
