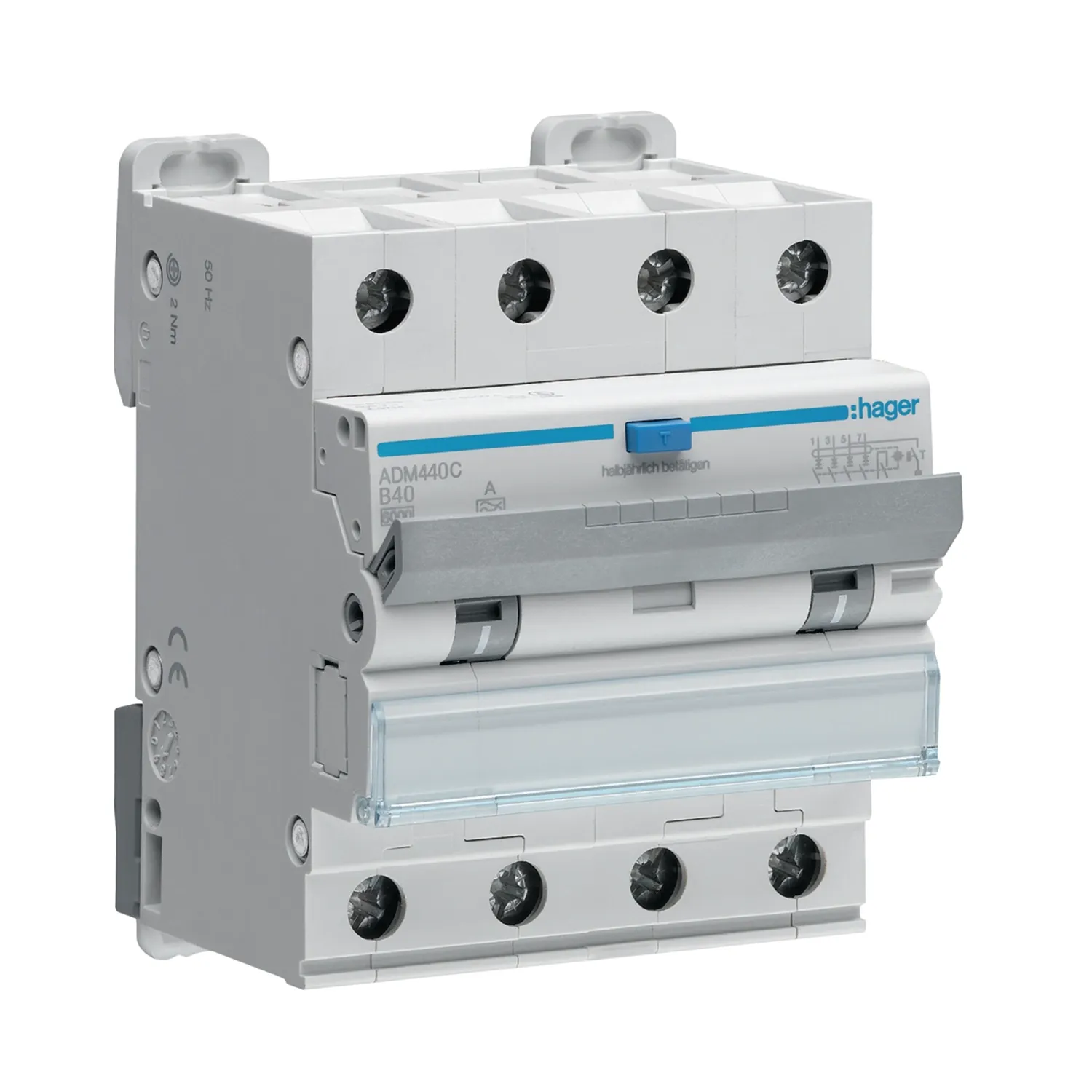

Hager RCBO 4P 40A 30mA B Curve Type A

Photo is representative

Hager RCBO 4P 6kA B-40A 30mA Type A 4 Module IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ADM440C
GTIN 3250611020264
Stock status: In stock

priced individually

Net price: £107.93

Gross price

£129.52

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager ADM440C 4-pole RCBO. 40A B-curve with 30mA Type A residual current protection. Fits standard consumer units, clips onto DIN rail.

  • 6kA breaking capacity to IEC 60898-1
  • 230-400V AC rated voltage
  • 4 modules wide, 360° mounting compatible
  • Screw terminal top, Biconnect bottom
  • Operating range: -25°C to +40°C
Specifications

Type

RCBO

Poles

4P

Protected Poles

4

Curve

B

Current Rating

40 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

230–400 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

4 modules

Power Loss

17.70 W

Overvoltage Category

III (IEC 60947-1)

Energy Limitation Class

I²t Class 3

360° Mounting

Yes

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2 Nm

Height

84 mm

Width

71 mm

Depth

70 mm

Operating Temperature

-25 to +40 °C

RoHS

Yes

Documents

datasheet Hager ADM440C Datasheet
