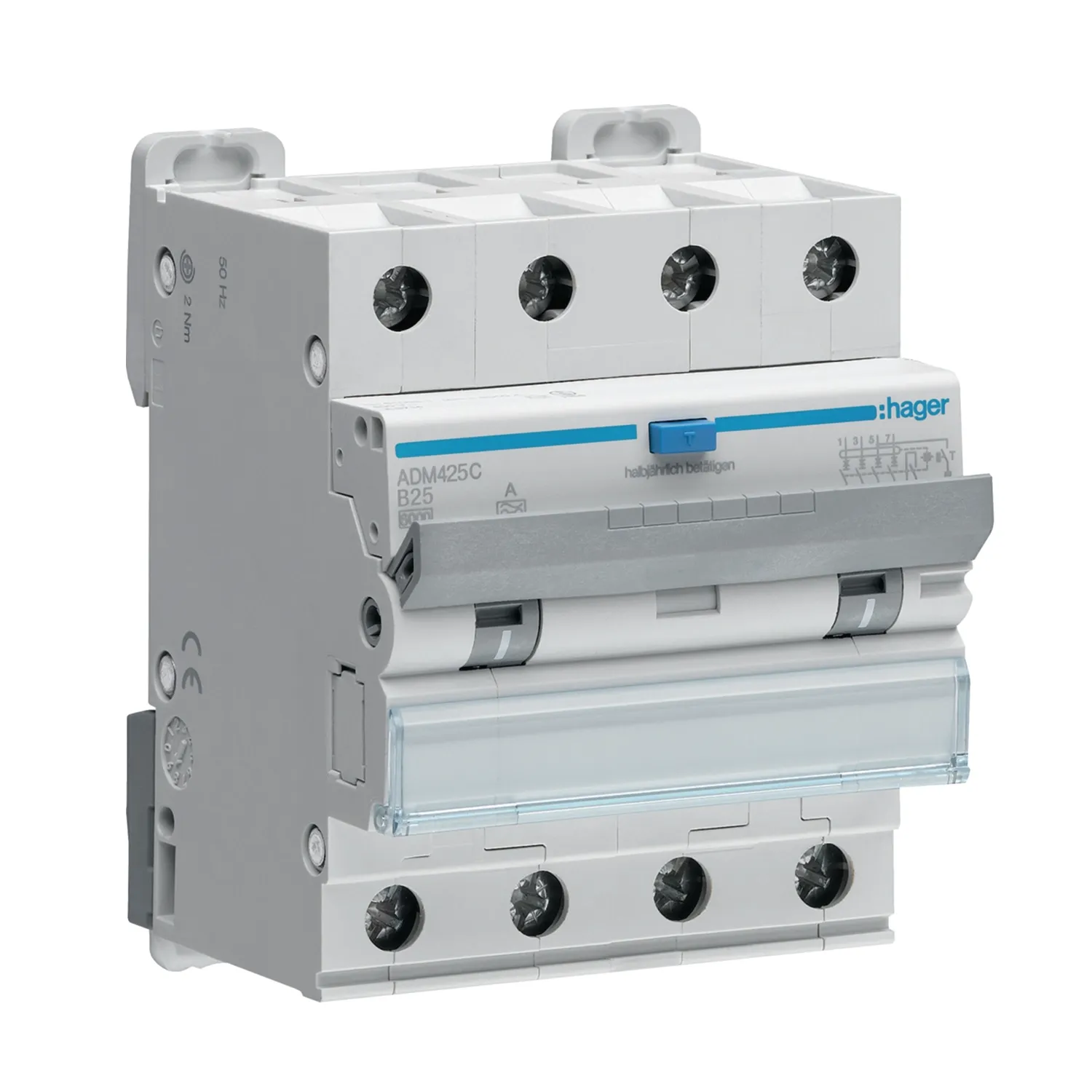

Hager RCBO 4P 25A 30mA B Curve Type A

Photo is representative

Hager RCBO 4P 6kA B-25A 30mA Type A 4 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code ADM425C
GTIN 3250611020240
Stock status: In stock

priced individually

Net price: £105.30

Gross price

£126.36

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager ADM425C 4-pole RCBO for three-phase circuits with earth leakage protection. Straight swap for 4-module space on DIN rail. Top screw terminals, bottom Biconnect.

  • 25A B-curve with 30mA Type A residual current protection
  • 6kA breaking capacity to IEC 60898-1
  • 230-400V AC rated, IP20 enclosure
  • Takes 1-25mm² conductors, 2Nm torque
  • Operating range: -25°C to +40°C
Specifications

Type

RCBO

Poles

4P

Protected Poles

4

Curve

B

Current Rating

25 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

230–400 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

4 modules

Power Loss

12.30 W

Overvoltage Category

III (IEC 60947-1)

360° Mounting

Yes

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2 Nm

Height

84 mm

Width

71 mm

Depth

70 mm

Operating Temperature

-25 to +40 °C

RoHS

Yes

Documents

datasheet Hager ADM425C Datasheet
