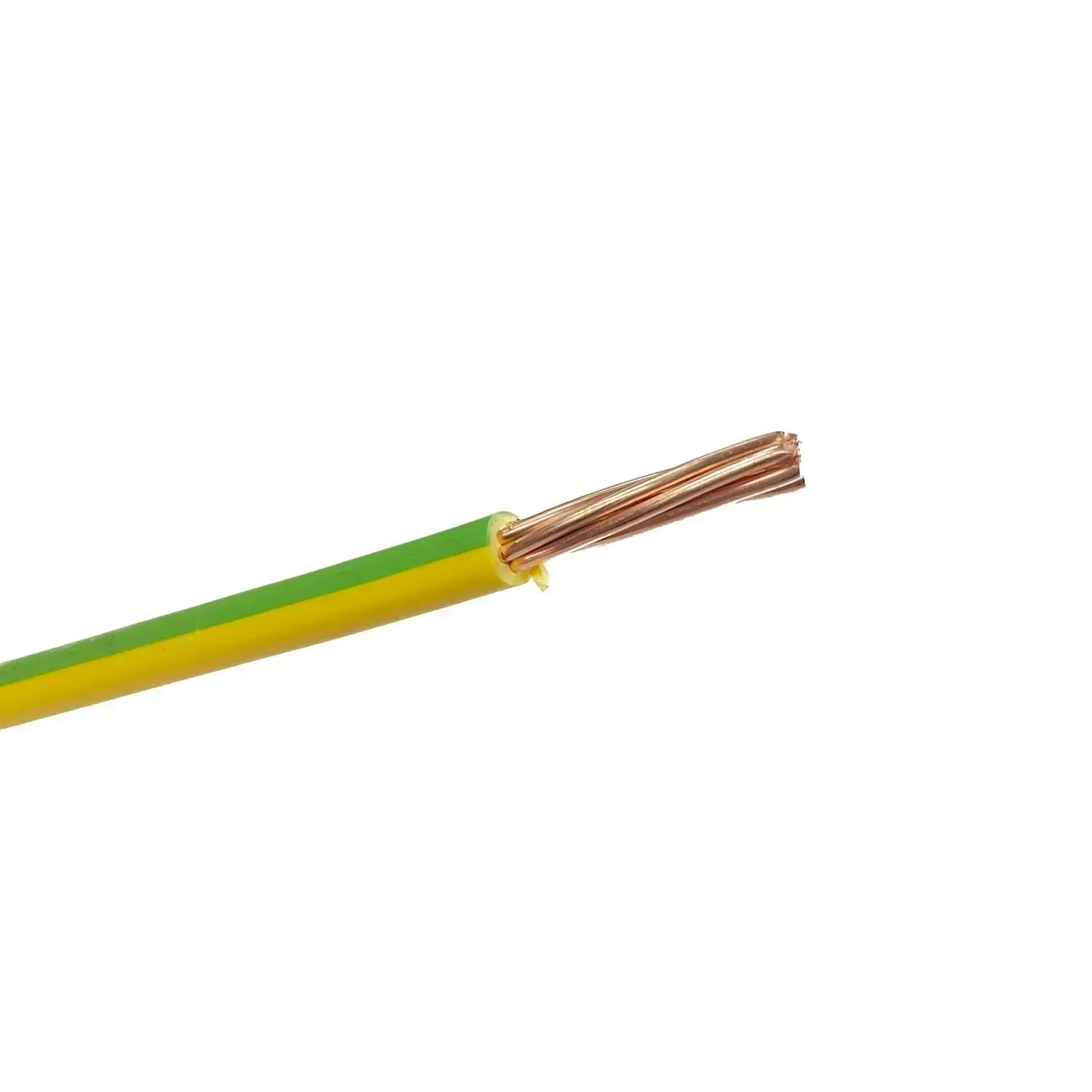

Photo is representative

6491B H07Z-R LSZH Single Core 95mm² Earth Cable Yellow Green 450 750V

6491B H07Z-R LSZH Single Core 95mm² Earth Cable Yellow Green 450 750V

95mm

6491B H07Z-R 2.5mm Single Core Earth LSZH Cable Yellow Green 450 750V

2.5mm

View 6491B H07Z-R 2.5mm Single Core Earth LSZH Cable Yellow Green 450 750V
4mm Single Core Earth Cable LSZH Yellow Green 450V 750V H07Z-R 100m

4mm

View 4mm Single Core Earth Cable LSZH Yellow Green 450V 750V H07Z-R 100m
6491B H07Z-R Single Core 6mm² Earth LSZH Yellow Green 450 750V

6mm

View 6491B H07Z-R Single Core 6mm² Earth LSZH Yellow Green 450 750V
6491B 10mm Single Core LSZH Earth Cable Yellow Green 450 750V

10mm

View 6491B 10mm Single Core LSZH Earth Cable Yellow Green 450 750V
6491B H07Z-R 16mm Single Core Earth LSZH Cable Yellow Green 450 750V

16mm

View 6491B H07Z-R 16mm Single Core Earth LSZH Cable Yellow Green 450 750V
6491B Single Core 25mm² LSZH Earth Cable H07Z-R Yellow Green 450 750V

25mm

View 6491B Single Core 25mm² LSZH Earth Cable H07Z-R Yellow Green 450 750V
6491B H07Z-R 35mm Single Core LSZH Earth Cable Yellow Green 450 750V

35mm

View 6491B H07Z-R 35mm Single Core LSZH Earth Cable Yellow Green 450 750V
6491B Single Core LSZH 50mm2 Earth Cable 450 750V Yellow Green

50mm

View 6491B Single Core LSZH 50mm2 Earth Cable 450 750V Yellow Green
6491B H07Z-R 70mm² Single Core LSZH Earth Cable Yellow Green 450 750V

70mm

View 6491B H07Z-R 70mm² Single Core LSZH Earth Cable Yellow Green 450 750V
6491B Single Core LSZH 1.5mm2 Earth Cable 450 750V Yellow Green

1.5mm

View 6491B Single Core LSZH 1.5mm2 Earth Cable 450 750V Yellow Green
6491B H07Z-R 120mm Single Core LSZH Earth Cable Yellow Green 450 750V

120mm

View 6491B H07Z-R 120mm Single Core LSZH Earth Cable Yellow Green 450 750V

Product Information

Stock Code 95PVCEARTH5
GTIN —
Stock status: In stock

priced per metre

Net price: £16.54

Gross price

£19.85

This item is not available to order online. Contact us to arrange supply.

Single core LSZH earth cable to H07Z-R standard. 95mm² class 2 stranded copper conductor in yellow/green. Suited for conduit and fixed protection installations — lighting, switchgear, and control gear.

LSZH sheath meets BS EN 60332-1-2 flame retardancy. Not for use in flexible or trailing applications.

  • Conductor: 95mm² class 2 stranded copper, 19⁄2.52
  • Voltage rating: 450/750V
  • Temp range: 0°C to +90°C
  • OD: 15.6mm, min bending radius (fixed): 6 × OD
  • Standards: H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1⁄2, BS EN/IEC 60332-1-2
Specifications

Conductor Size

95 mm²

Number of Cores

1

Core Colour

Yellow/Green

Conductor Type

Class 2 stranded copper

Stranding

19/2.52

Voltage Rating

450/750V

Temperature Range

0°C to +90°C

Overall Diameter

15.6 mm

Weight

990 kg/km

Min Bending Radius (Fixed)

6 × overall diameter

Sheath Material

Low Smoke Zero Halogen (LSZH)

Flame Retardancy

BS EN 60332-1-2

Standard

H07Z-R

Standards Conformance

BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
