6491B 10mm Single Core LSZH Earth Cable Yellow Green 450 750V

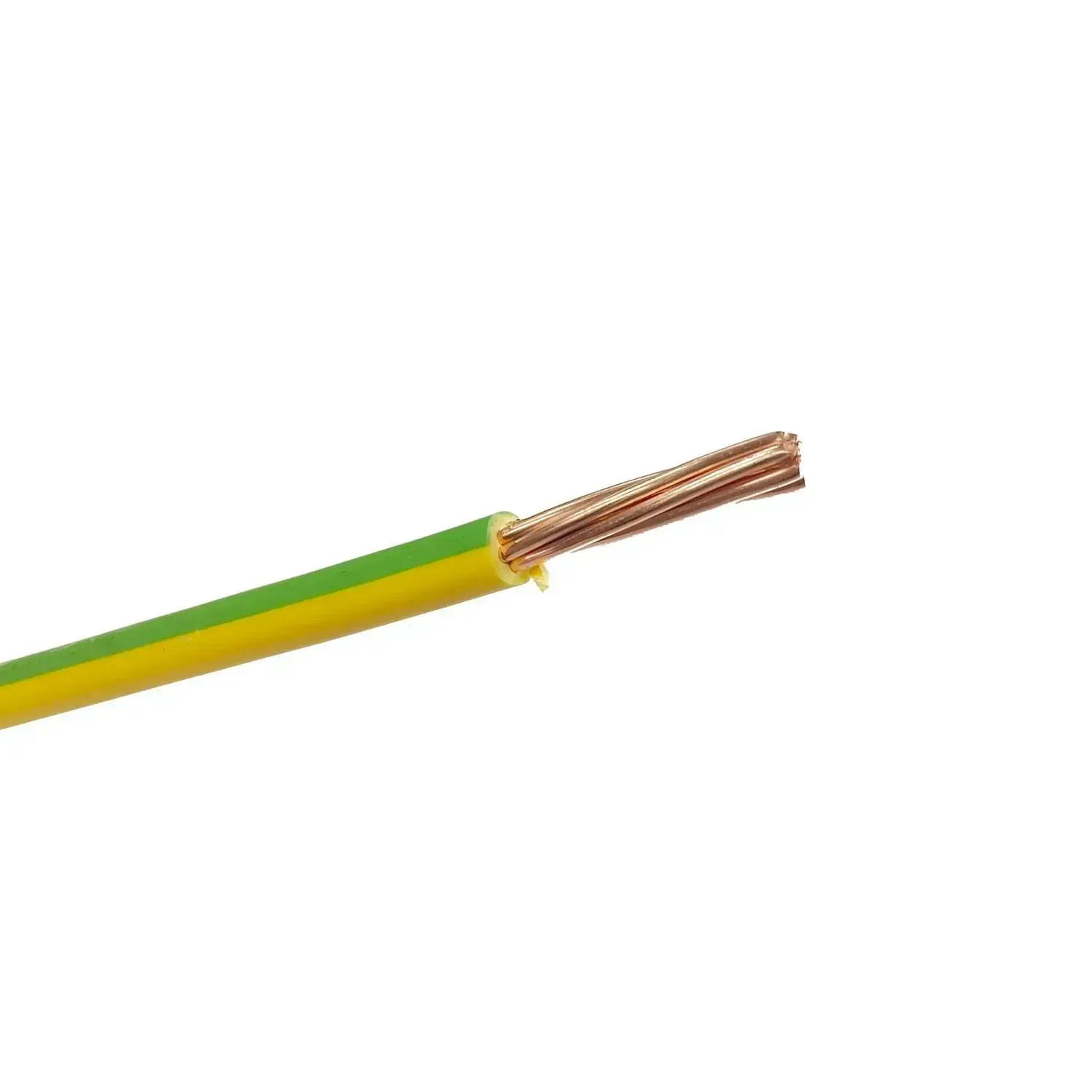

Photo is representative

6491B 10mm Single Core LSZH Earth Cable Yellow Green 450 750V

6491B 10mm Single Core LSZH Earth Cable Yellow Green 450 750V

10mm

6491B H07Z-R 2.5mm Single Core Earth LSZH Cable Yellow Green 450 750V

2.5mm

View 6491B H07Z-R 2.5mm Single Core Earth LSZH Cable Yellow Green 450 750V
4mm Single Core Earth Cable LSZH Yellow Green 450V 750V H07Z-R 100m

4mm

View 4mm Single Core Earth Cable LSZH Yellow Green 450V 750V H07Z-R 100m
6491B H07Z-R Single Core 6mm² Earth LSZH Yellow Green 450 750V

6mm

View 6491B H07Z-R Single Core 6mm² Earth LSZH Yellow Green 450 750V
6491B Single Core LSZH 1.5mm2 Earth Cable 450 750V Yellow Green

1.5mm

View 6491B Single Core LSZH 1.5mm2 Earth Cable 450 750V Yellow Green
6491B H07Z-R 16mm Single Core Earth LSZH Cable Yellow Green 450 750V

16mm

View 6491B H07Z-R 16mm Single Core Earth LSZH Cable Yellow Green 450 750V
6491B Single Core 25mm² LSZH Earth Cable H07Z-R Yellow Green 450 750V

25mm

View 6491B Single Core 25mm² LSZH Earth Cable H07Z-R Yellow Green 450 750V
6491B H07Z-R 35mm Single Core LSZH Earth Cable Yellow Green 450 750V

35mm

View 6491B H07Z-R 35mm Single Core LSZH Earth Cable Yellow Green 450 750V
6491B Single Core LSZH 50mm2 Earth Cable 450 750V Yellow Green

50mm

View 6491B Single Core LSZH 50mm2 Earth Cable 450 750V Yellow Green
6491B H07Z-R 70mm² Single Core LSZH Earth Cable Yellow Green 450 750V

70mm

View 6491B H07Z-R 70mm² Single Core LSZH Earth Cable Yellow Green 450 750V
6491B H07Z-R LSZH Single Core 95mm² Earth Cable Yellow Green 450 750V

95mm

View 6491B H07Z-R LSZH Single Core 95mm² Earth Cable Yellow Green 450 750V
6491B H07Z-R 120mm Single Core LSZH Earth Cable Yellow Green 450 750V

120mm

View 6491B H07Z-R 120mm Single Core LSZH Earth Cable Yellow Green 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 10PVCEARTH1
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.07

Gross price

£2.49

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core 10mm² CPC cable with LSZH sheath. Yellow/green core, Class 2 stranded copper. H07Z-R type.

Suited to conduit and fixed protection installations. LSZH sheath keeps smoke, emissions, and toxic fumes down in the event of fire — use it where that matters: plant rooms, public buildings, confined spaces.

  • 450/750V rated
  • 7⁄1.35mm stranding, 6.15mm OD
  • 0°C to +90°C operating temp
  • Flame retardancy to BS EN 60332-1-2
  • Complies with H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1⁄2
Specifications

Cable Type

H07Z-R

Conductor Size

10 mm²

Number of Cores

1

Core Colour

Yellow/Green

Voltage Rating

450/750V

Conductor

Class 2 stranded copper

Stranding

7/1.35 mm

Overall Diameter

6.15 mm

Weight

116 kg/km

Sheath Material

Low Smoke Zero Halogen (LSZH)

Temperature Range

0°C to +90°C

Minimum Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
