6491B H07Z-R 70mm² Single Core LSZH Earth Cable Yellow Green 450 750V

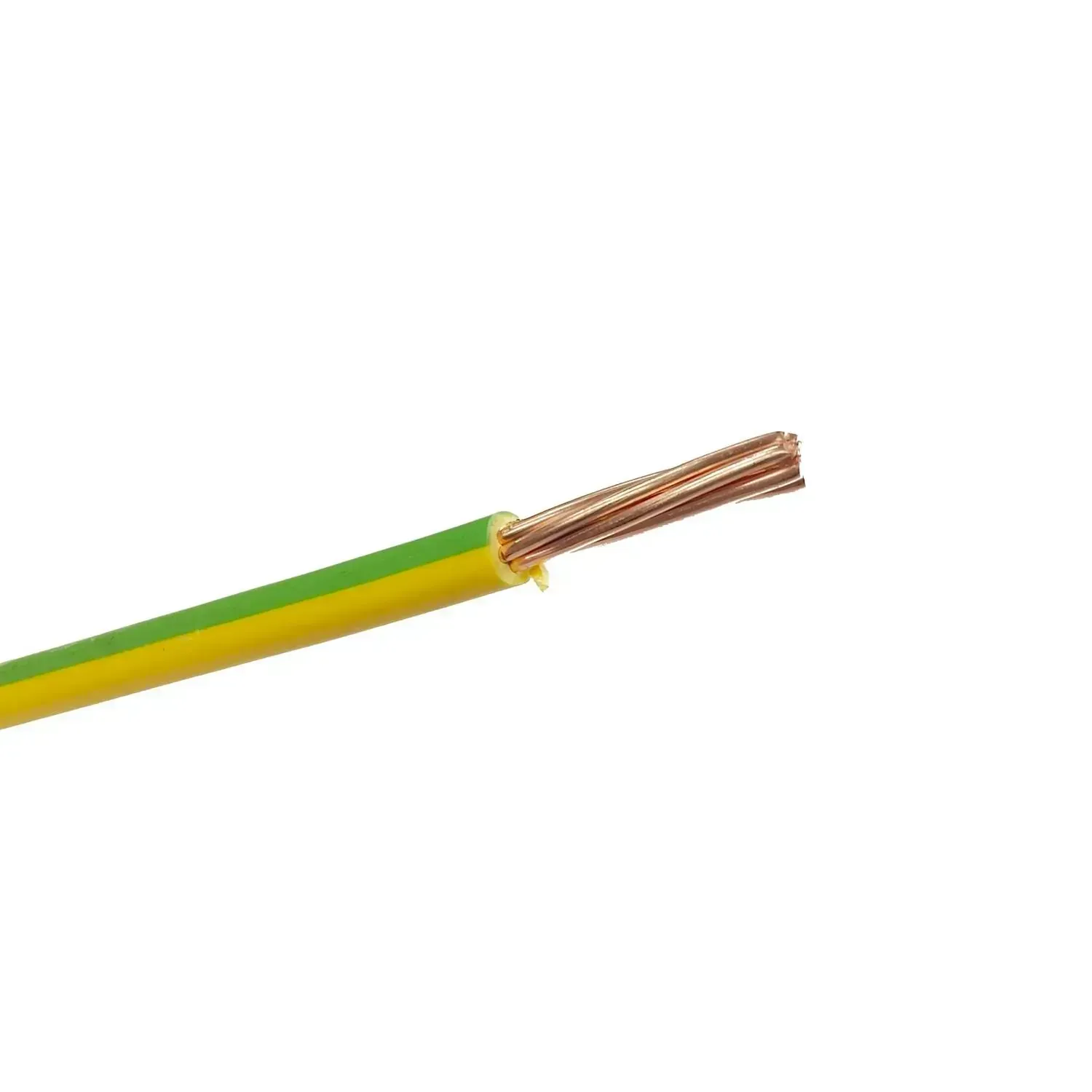

Photo is representative

Single core 70mm² earth cable to H07Z-R standard. Yellow/green LSZH sheathed, suited for conduit and fixed protection installations. Also rated for use in lighting, switchgear, and appliances.

LSZH sheath reduces smoke, halogen emissions, and toxic fumes in the event of fire — required where fire safety risk is a factor.

  • 70mm² Class 2 stranded copper, 192.14 stranding
  • 450/750V rated
  • LSZH sheath, 0°C to +90°C operating range
  • OD: 13.35mm, min. bending radius (fixed): 6 x OD
  • Flame retardant to BS EN 60332-1-2
Specifications

Standard

H07Z-R

Conductor Size

70 mm²

Number of Cores

1

Core Colour

Yellow/Green

Voltage Rating

450/750V

Conductor Type

Class 2 stranded copper

Stranding

19/2.14

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

13.35 mm

Weight

715 kg/km

Temperature Range

0°C to +90°C

Min. Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Conforms To

BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
