Product Information

Stock Code 50PVCEARTH5
GTIN —
Stock status: In stock

priced per metre

Net price: £8.06

Gross price

£9.67

This item is not available to order online. Contact us to arrange supply.

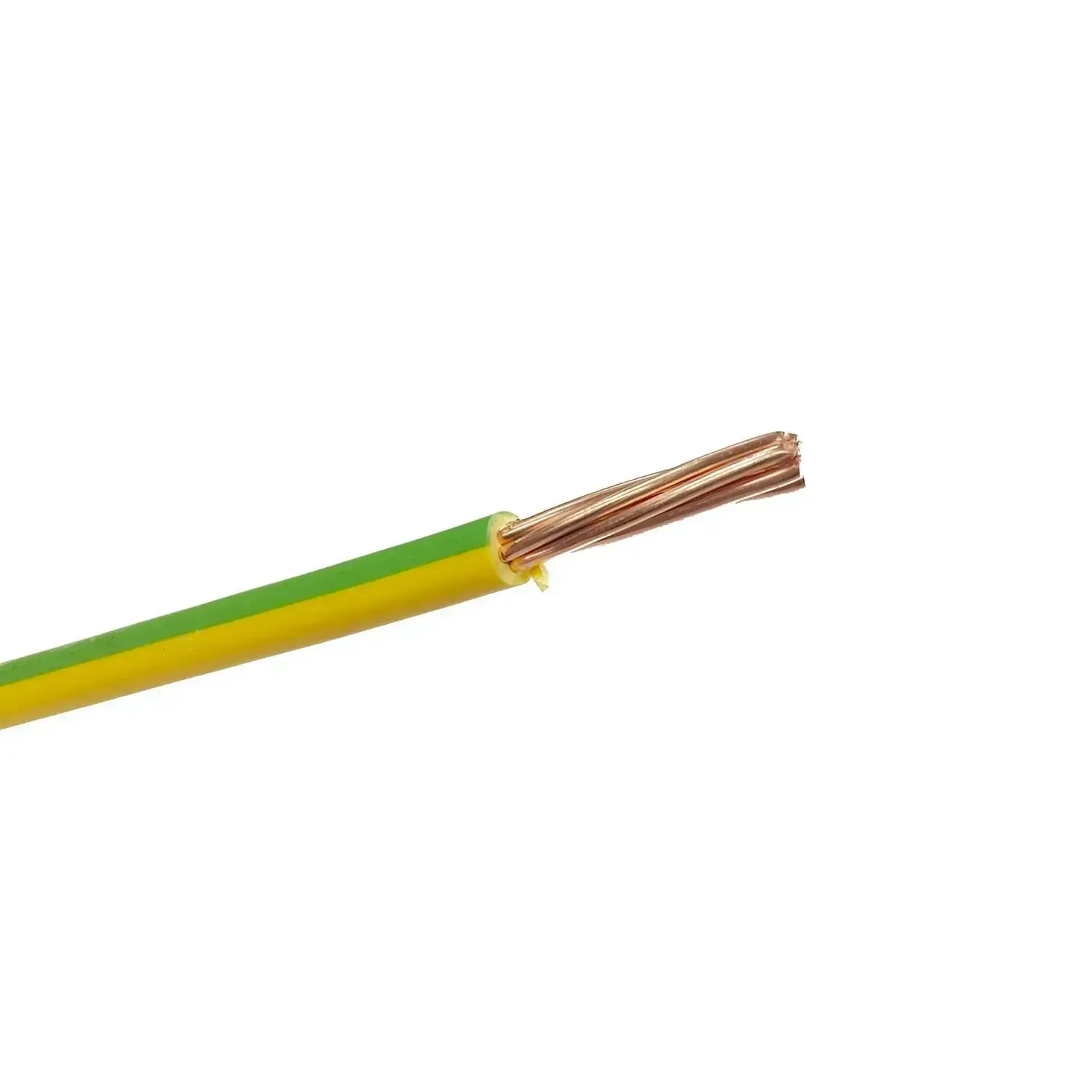

Single core 6491B LSZH earth cable in 50mm² yellow/green. Rated 450/750V with a Class 2 stranded copper conductor. Built for conduit and fixed protection installs where fire risk, smoke, and toxic fumes are a concern — lighting circuits, switchgear, and control gear.

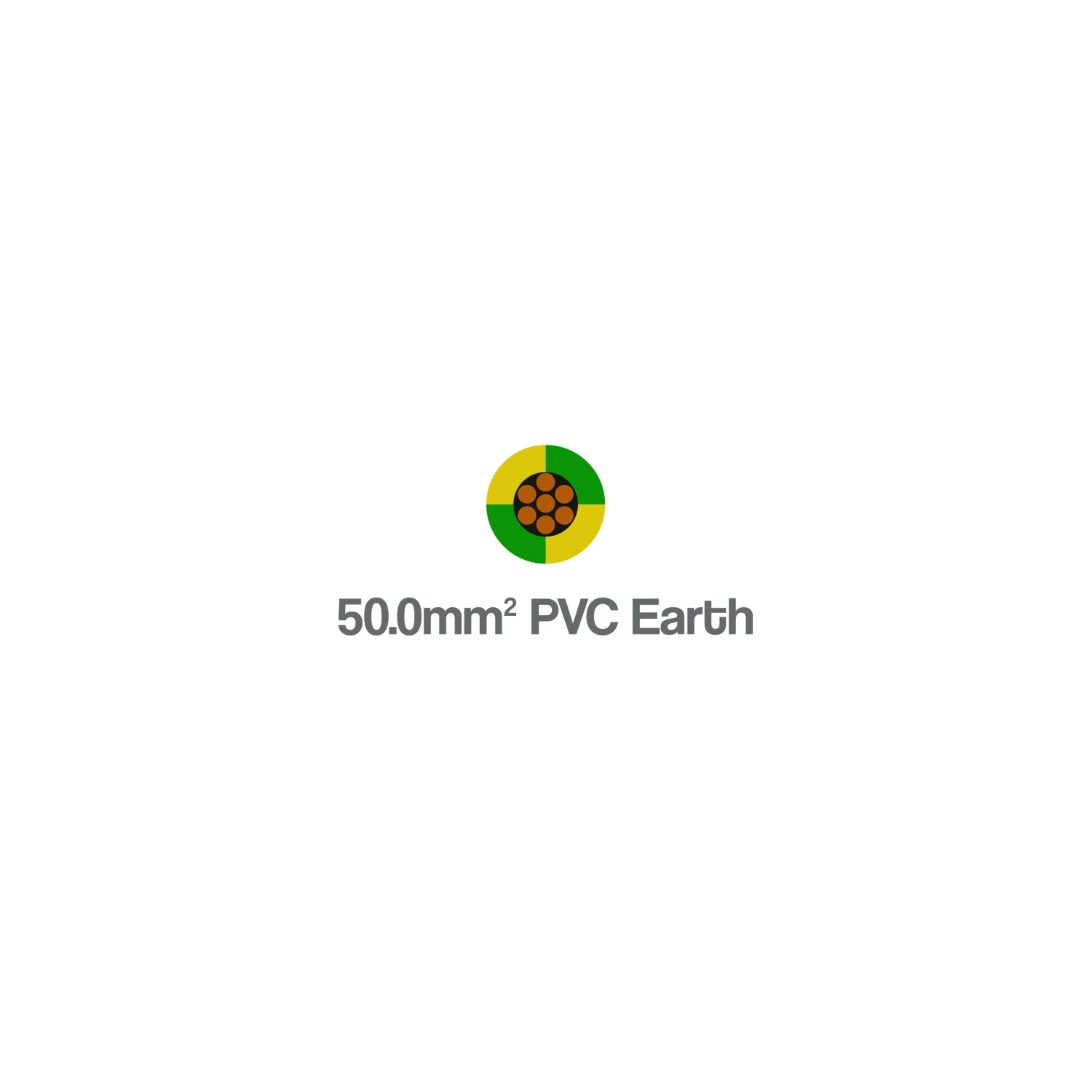

  • 50mm² Class 2 stranded copper (19⁄1.78mm)
  • LSZH sheath, 0°C to +90°C operating range
  • OD 11.7mm, fixed bend radius 6 × OD
  • Flame retardant to BS EN 60332-1-2
  • H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1⁄2
Specifications

Voltage Rating

450/750V

Conductor Size

50mm²

Number of Cores

1

Core Colour

Yellow/Green

Conductor Type

Class 2 stranded copper

Stranding

19/1.78mm

Sheath Material

LSZH

Overall Diameter

11.7mm

Weight

510 kg/km

Temperature Range

0°C to +90°C

Minimum Bending Radius (Fixed)

6 × overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
