6491B H07Z-R LSZH Single Core 6mm Brown 450 750V Cable

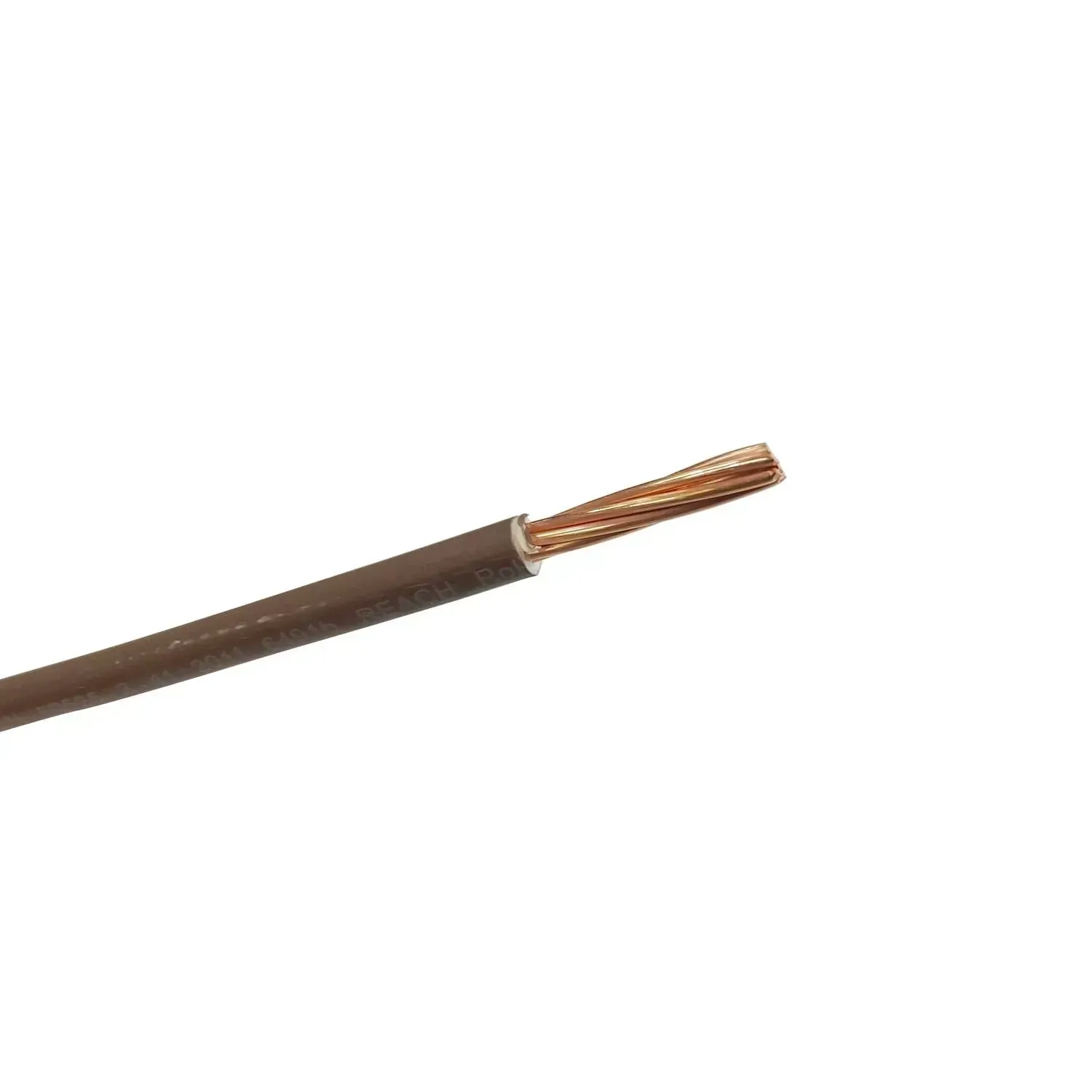

Photo is representative

6491B H07Z-R LSZH Single Core 6mm Brown 450 750V Cable

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 6PVCBROWN1
GTIN —
Stock status: Out of stock

priced per meter

More arriving soon

Net price: £1.36

Gross price

£1.63

Single core 6mm² LSZH cable to H07Z-R. Rated 450/750V with a Class 2 stranded copper conductor — 7⁄1.04mm stranding. Suited for conduit and fixed protection installations including lighting, switchgear, and appliance wiring where low smoke and zero halogen properties are required.

  • 6mm² Class 2 stranded copper, 7⁄1.04mm
  • LSZH sheath, 450/750V, +90°C max operating temp
  • OD 4.75mm, min fixed bend radius 6 × OD
  • Flame retardant to BS EN 60332-1-2
Specifications

Conductor Size

6 mm²

Conductor Type

Class 2 stranded copper

Stranding

7/1.04 mm

Number of Cores

1

Core Colour

Brown

Voltage Rating

450/750 V

Temperature Range

0°C to +90°C

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

4.75 mm

Min Bending Radius (Fixed)

6 × overall diameter

Weight

69 kg/km

Flame Retardancy

BS EN 60332-1-2

Standard Compliance

H07Z-R, BS EN 50525-3-41, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
