6491B H07Z-R 4mm Single Core LSZH Cable 450 750V Brown 100m

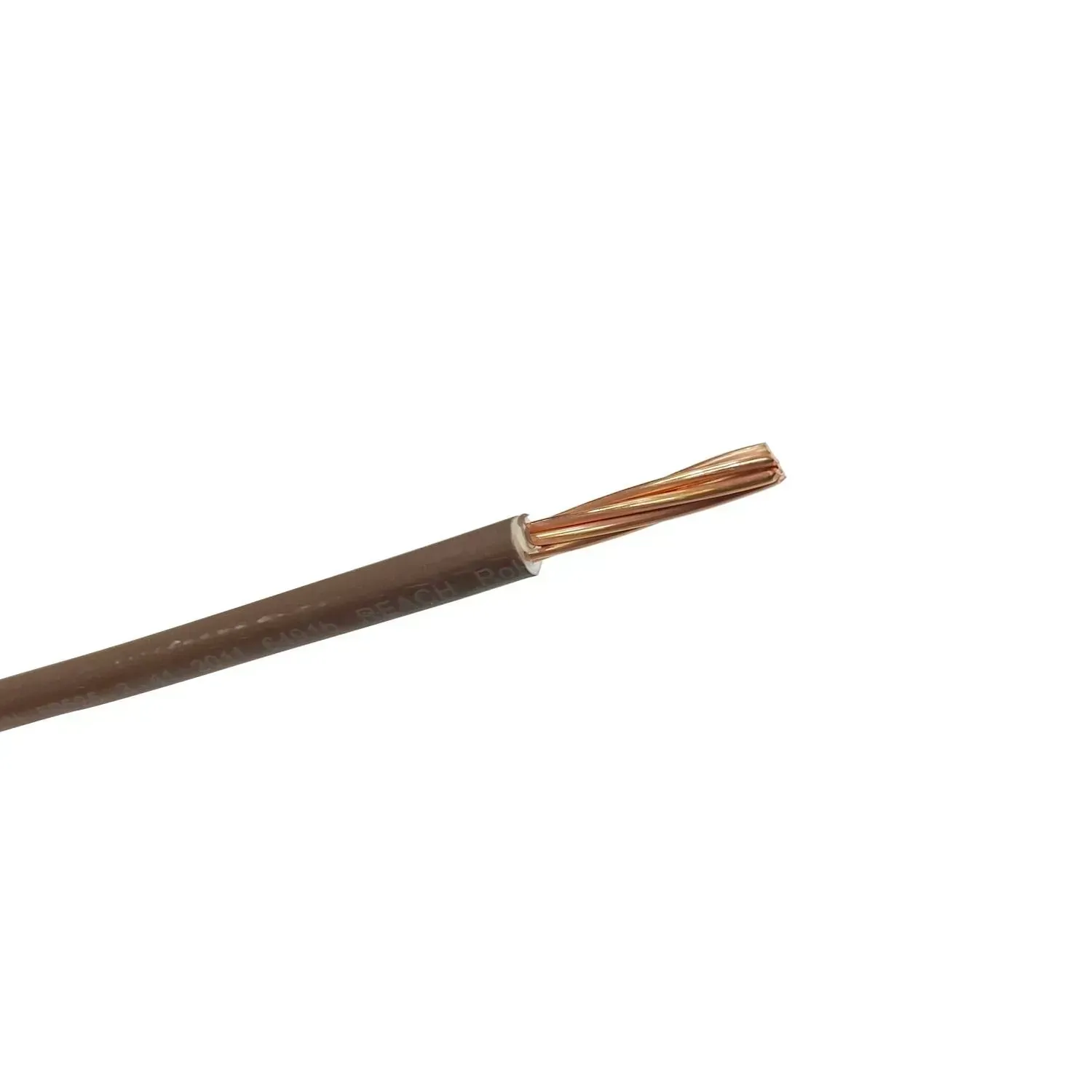

Photo is representative

6491B H07Z-R 4mm Single Core LSZH Cable 450 750V Brown 100m

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4PVCBROWN1
GTIN —
Stock status: In stock

priced per meter

Net price: £0.73

Gross price

£0.88

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

6491B single core LSZH cable, 4mm², brown. Suited for conduit and fixed protection installations where low smoke and zero halogen performance is required.

LSZH sheath reduces toxic fume and smoke emission in the event of fire — use where people, ventilation, or sensitive equipment make standard PVC unacceptable.

  • 450/750V rated
  • Class 2 stranded copper, 7⁄0.85mm stranding
  • OD: 4.2mm, min bend radius (fixed): 6 x OD
  • Temp range: 0°C to +90°C
  • Flame retardant to BS EN 60332-1-2
Specifications

Conductor Size

4 mm²

Number of Cores

1

Voltage Rating

450/750 V

Conductor Type

Class 2 stranded copper

Stranding

7/0.85 mm

Sheath Material

Low Smoke Zero Halogen (LSZH)

Core Colour

Brown

Overall Diameter

4.2 mm

Minimum Bending Radius (Fixed)

6 x overall diameter

Temperature Range

0°C to +90°C

Weight

49 kg/km

Flame Retardancy

BS EN 60332-1-2

Standard Compliance

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
