6491B Single Core LSZH Cable 1.5mm2 Brown H07Z-R 450 750V 100m

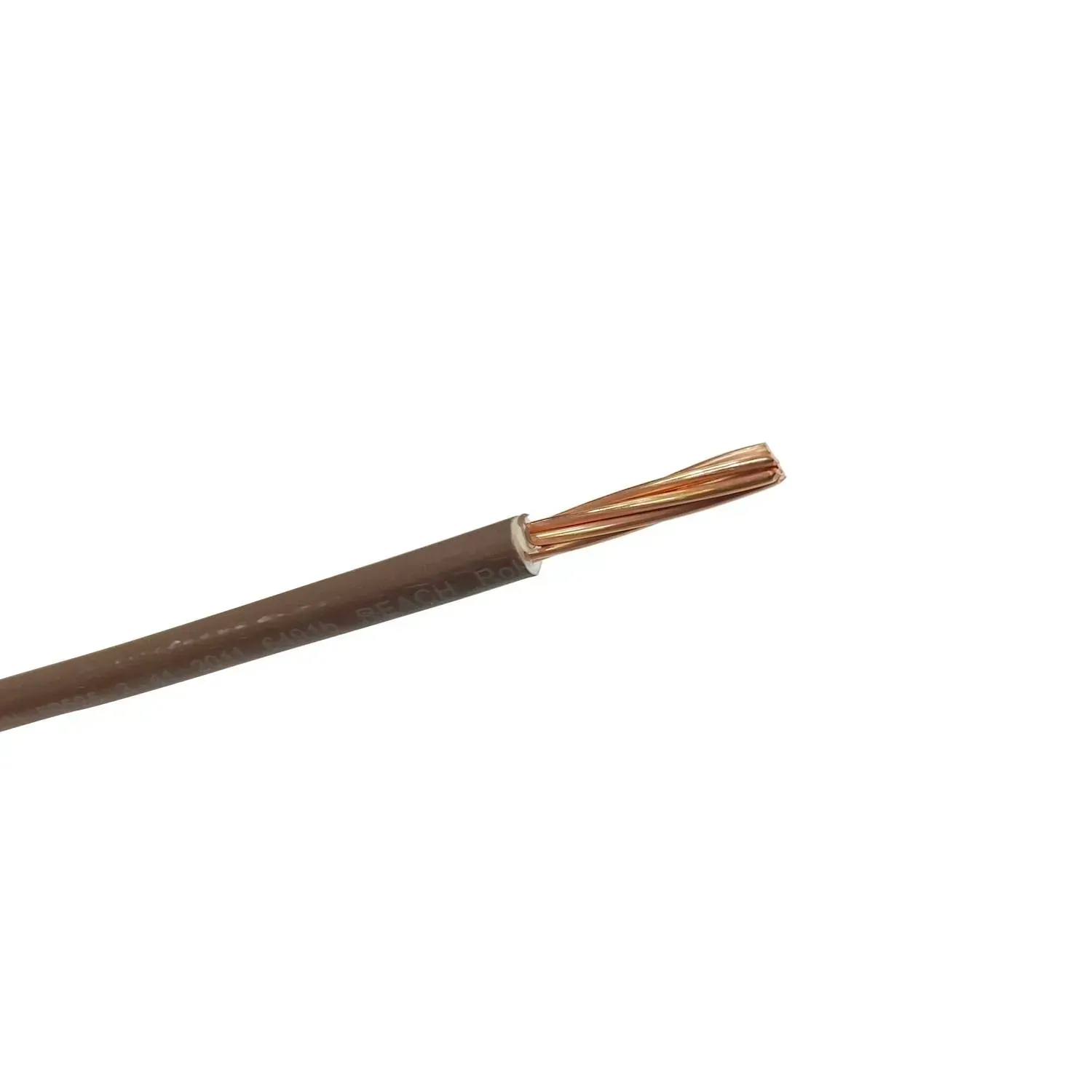

Photo is representative

6491B Single Core LSZH Cable 1.5mm2 Brown H07Z-R 450 750V 100m

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 15PVCBROWN1
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £0.35

Gross price

£0.41

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core LSZH cable to H07Z-R spec. 1.5mm² brown, 450/750V rated. Suited for conduit installations, fixed wiring, lighting circuits, and switchgear connections.

LSZH sheath keeps smoke and halogen output low — relevant where occupant safety matters. Flame retardant to BS EN 60332-1-2.

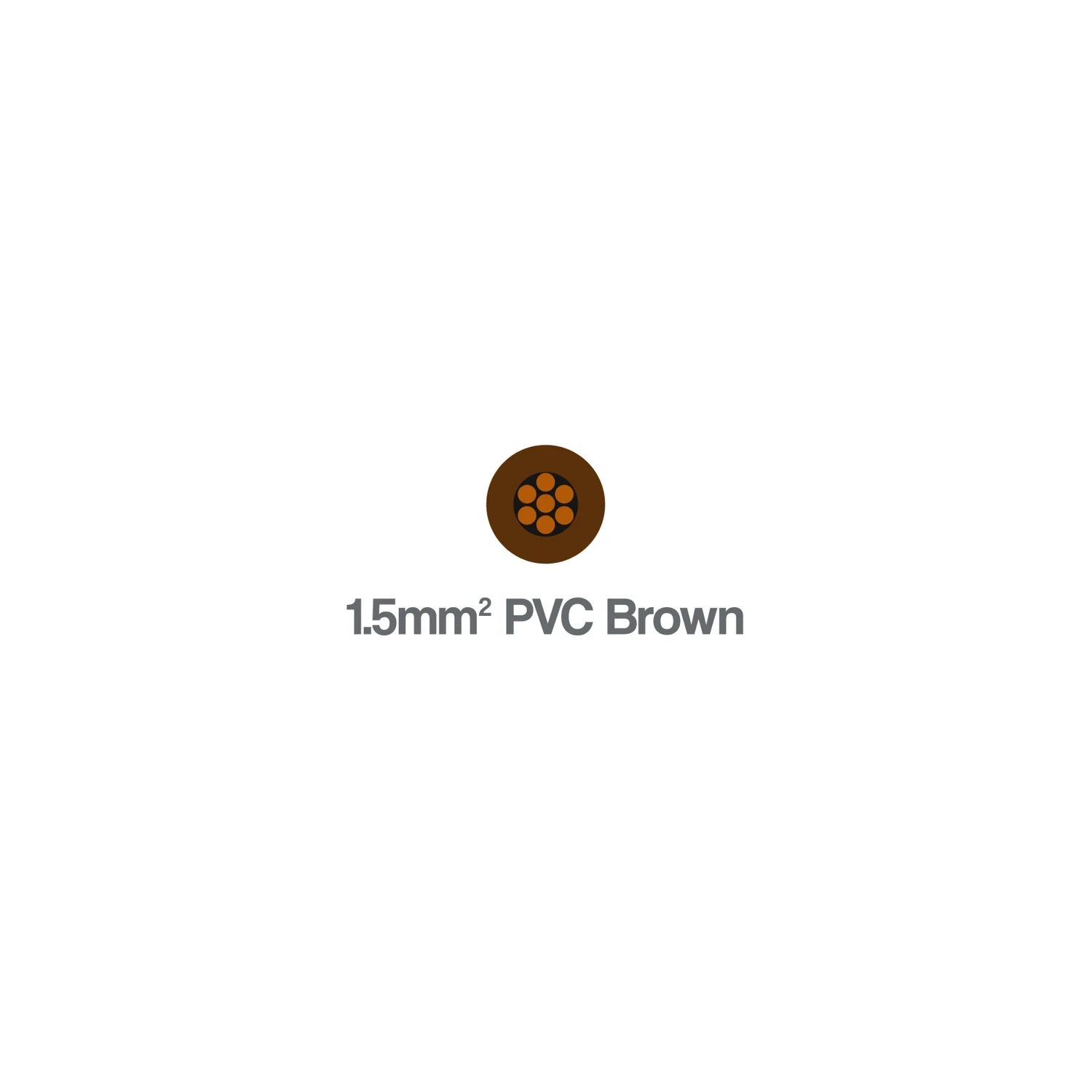

  • 1.5mm² Class 2 stranded copper — 7⁄0.53mm
  • 450/750V rated
  • OD: 3mm
  • Temp range: 0°C to +90°C
  • Min bending radius (fixed): 6 x OD
Specifications

Conductor Size

1.5 mm²

Number of Cores

1

Conductor Type

Class 2 stranded copper

Stranding

7/0.53 mm

Voltage Rating

450/750 V

Sheath Material

Low Smoke Zero Halogen (LSZH)

Core Colour

Brown

Overall Diameter

3 mm

Weight

22 kg/km

Temperature Range

0°C to +90°C

Min Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
