H07RN-F TRS 5 Core 6mm2 Flexible Rubber Cable Black 0.6 1kV

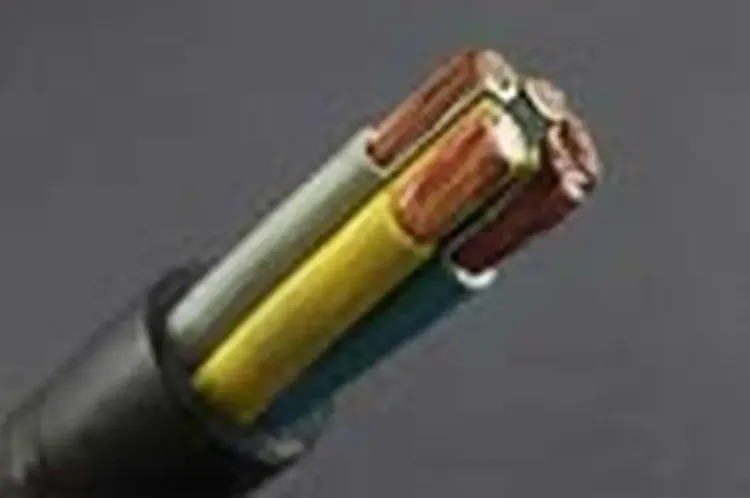

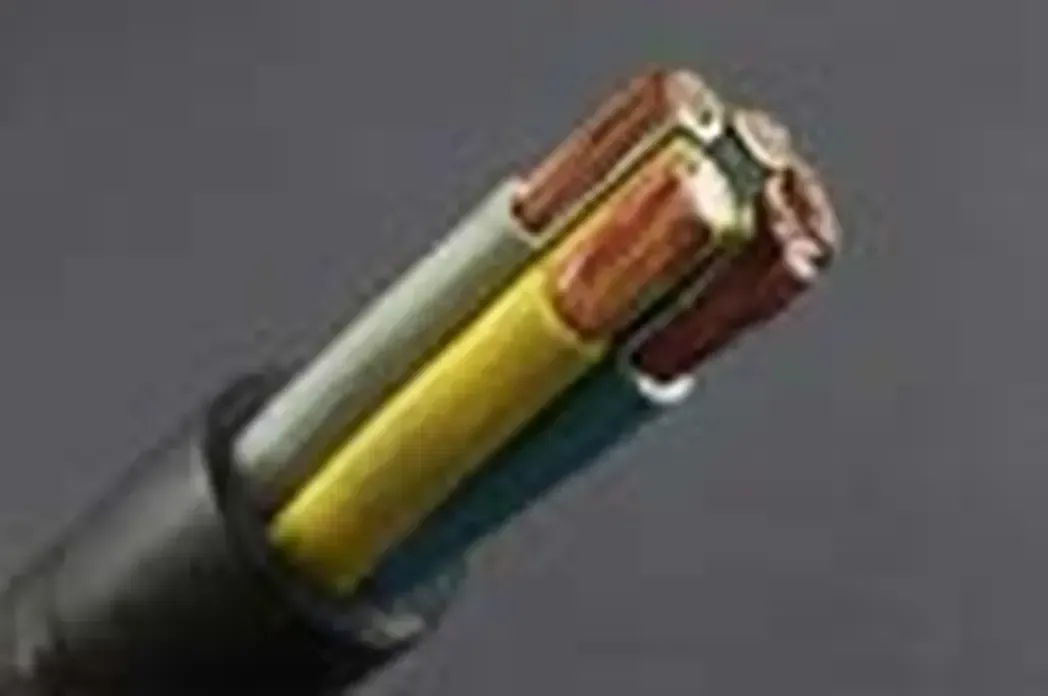

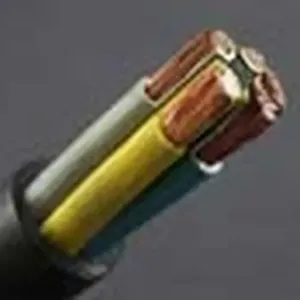

Photo is representative

H07RN-F TRS 5 Core 6mm2 Flexible Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 56TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £9.64

Gross price

£11.57

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

H07RN-F rated flexible rubber cable, 5 core 6mm². Built for site supplies, mobile plant, ports, and heavy industrial use where mechanical stress and movement are constant.

Class 5 stranded copper conductors with EPR insulation and a polychloroprene rubber outer sheath. Handles fixed and flexing applications across a wide temperature range.

  • Conductor: 84⁄0.30 Class 5 flexible stranded copper
  • OD: 17.5–22.9 mm
  • Temp range: -30°C to +90°C fixed / -15°C to +90°C flexing
  • Flame retardant to IEC/EN 60332-1-2

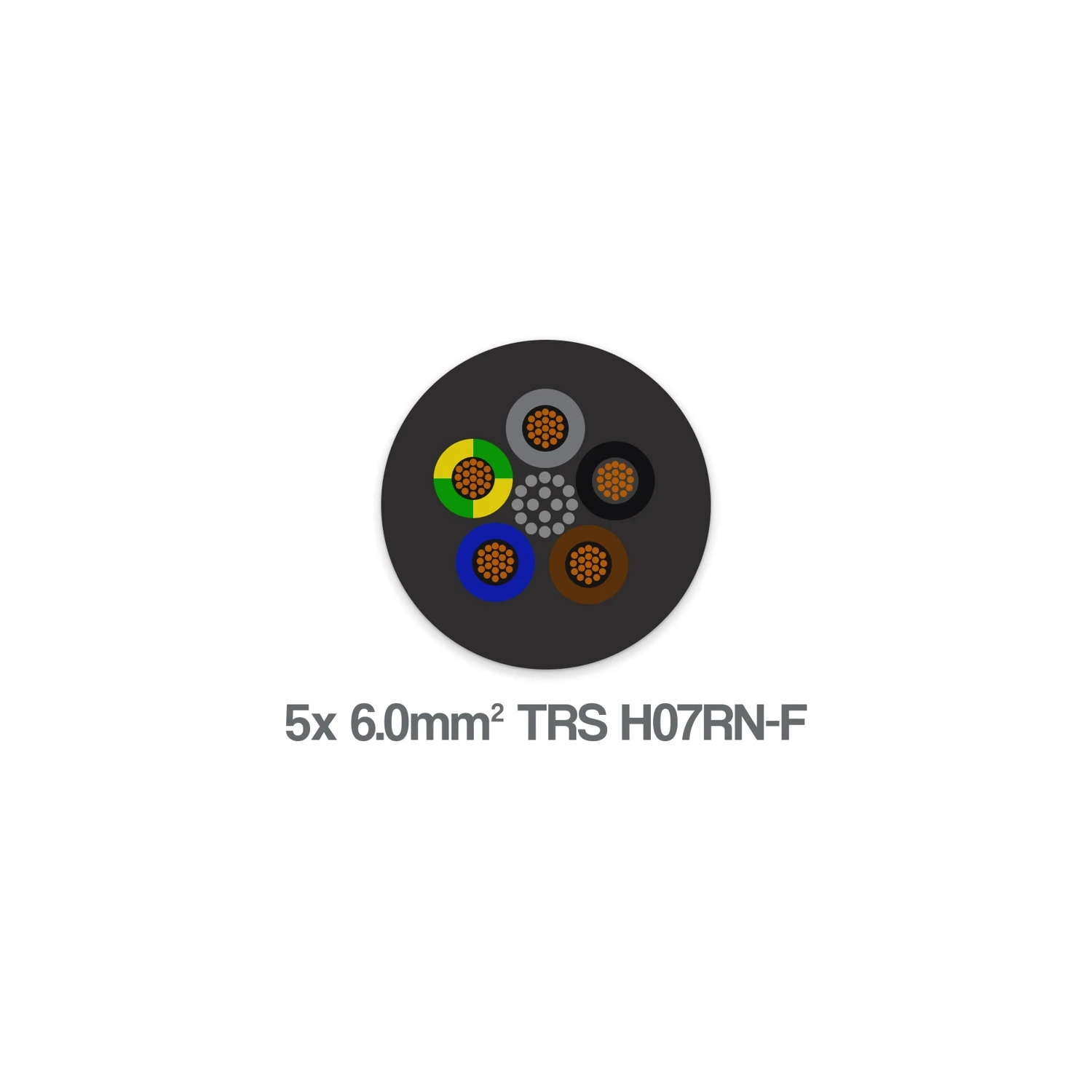

  • Core colours: Brown, Black, Grey, Blue, Green/Yellow
Specifications

Conductor Size

6 mm²

Number of Cores

5

Stranding

84/0.30

Conductor Type

Class 5 flexible stranded copper

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Voltage Rating

0.6/1kV (fixed) / 450/750V (flexing)

Overall Diameter

17.5–22.9 mm

Weight

760 kg/km

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Min Bending Radius (Fixed)

4 x overall diameter

Min Bending Radius (Flexing)

6 x overall diameter

Standard

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228

Core Colours

Brown, Black, Grey, Blue, Green/Yellow
