H07RN-F 5 Core 2.5mm2 Flexible Rubber Cable Black TRS EPR CR Sheath 0.6 1kV

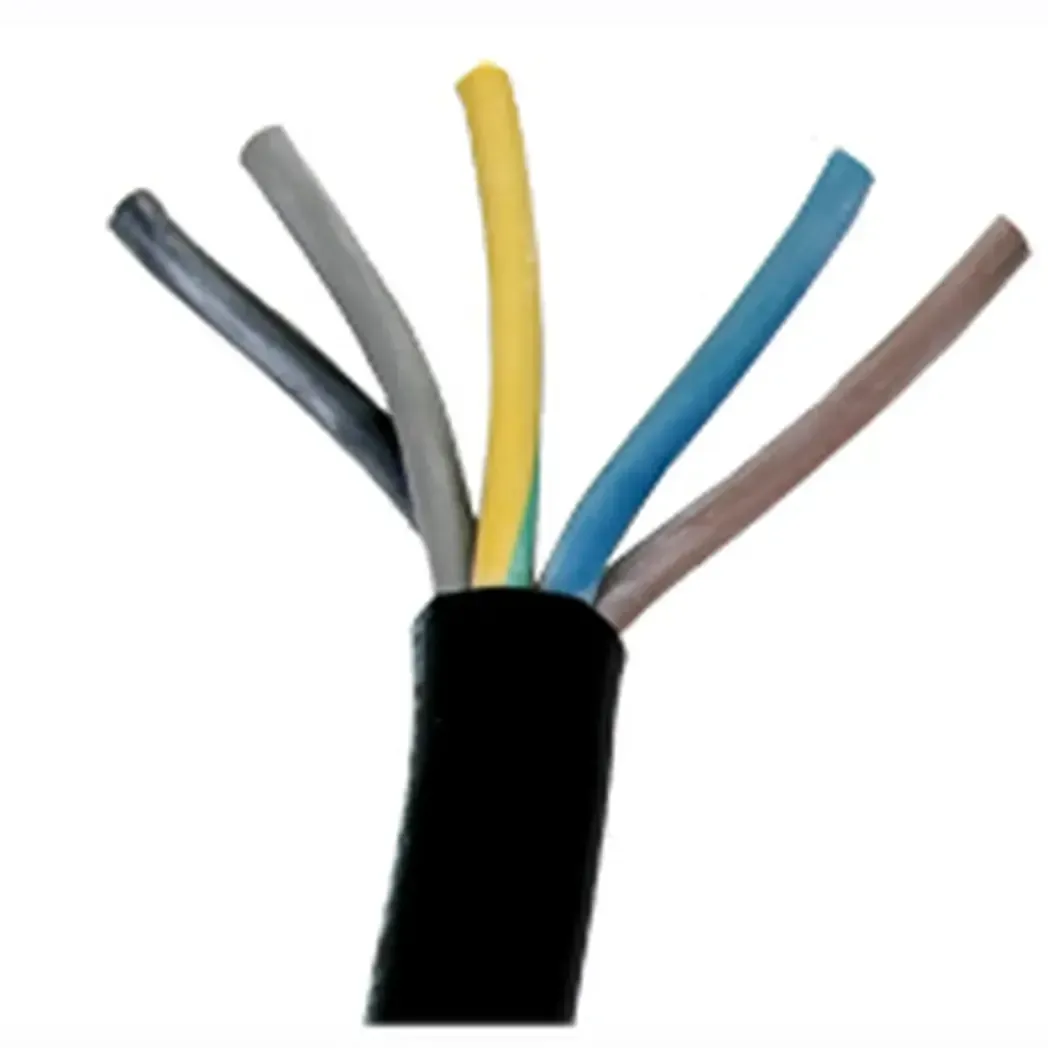

Photo is representative

H07RN-F 5 Core 2.5mm2 Flexible Rubber Cable Black TRS EPR CR Sheath 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 5X2.5TRS7
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £4.64

Gross price

£5.57

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Flexible H07RN-F mains and control cable. 5 core 2.5mm², Class 5 stranded copper, EPR insulated, polychloroprene (CR) outer sheath.

Built for tough environments — work sites, mobile power supplies, ports, water treatment, sewage, and extreme temperature locations. Handles mechanical stress, water, and weather.

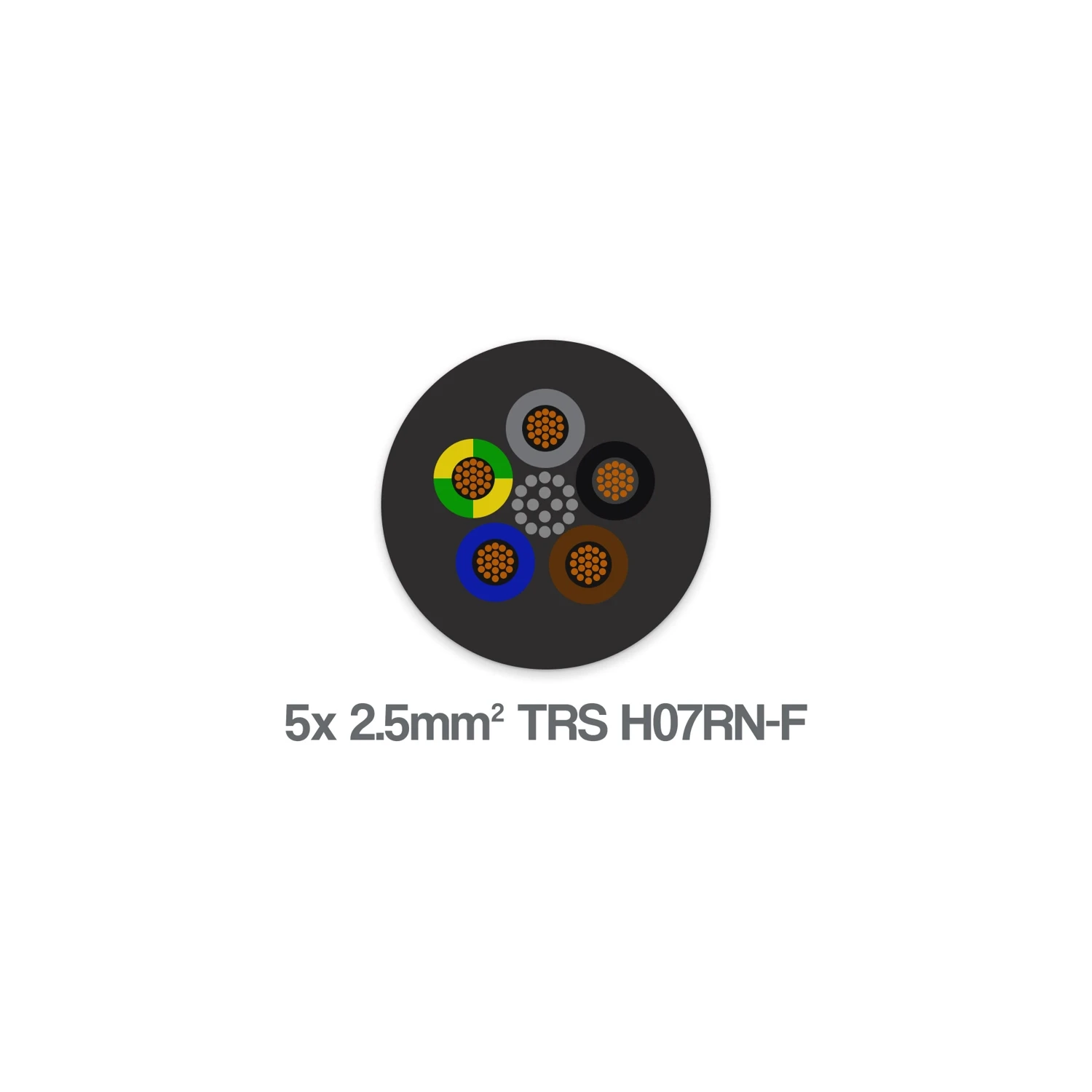

  • Cores: Brown, Black, Grey, Blue, Green/Yellow
  • OD: 13.3–17 mm
  • Temp range (flexing): –15°C to +90°C
  • Temp range (fixed): –30°C to +90°C
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

2.5 mm²

Number of Cores

5

Stranding

50/0.25

Conductor Type

Class 5 flexible stranded copper

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Voltage Rating

0.6/1kV (fixed), 450/750V (flexing)

Overall Diameter

13.3–17 mm

Weight

345 kg/km

Min Bending Radius (Fixed)

4 × overall diameter

Min Bending Radius (Flexing)

6 × overall diameter

Temperature Range (Fixed)

–30°C to +90°C

Temperature Range (Flexing)

–15°C to +90°C

Core Colours

Brown, Black, Grey, Blue, Green/Yellow

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
