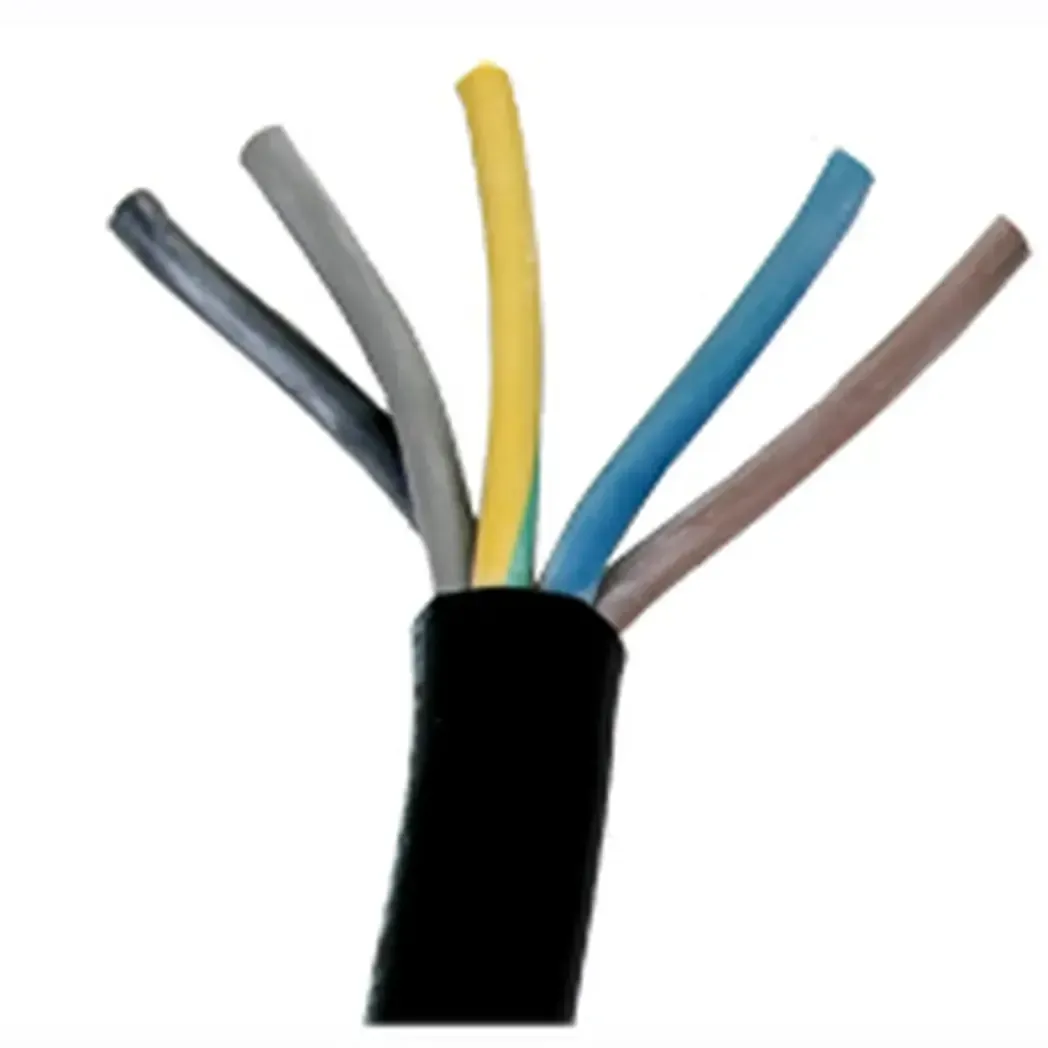

H07RN-F 5 Core 1.5mm² Flexible Rubber Cable EPR PCP Black 0.6 1kV

Photo is representative

H07RN-F 5 Core 1.5mm² Flexible Rubber Cable EPR PCP Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 515TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.67

Gross price

£3.20

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

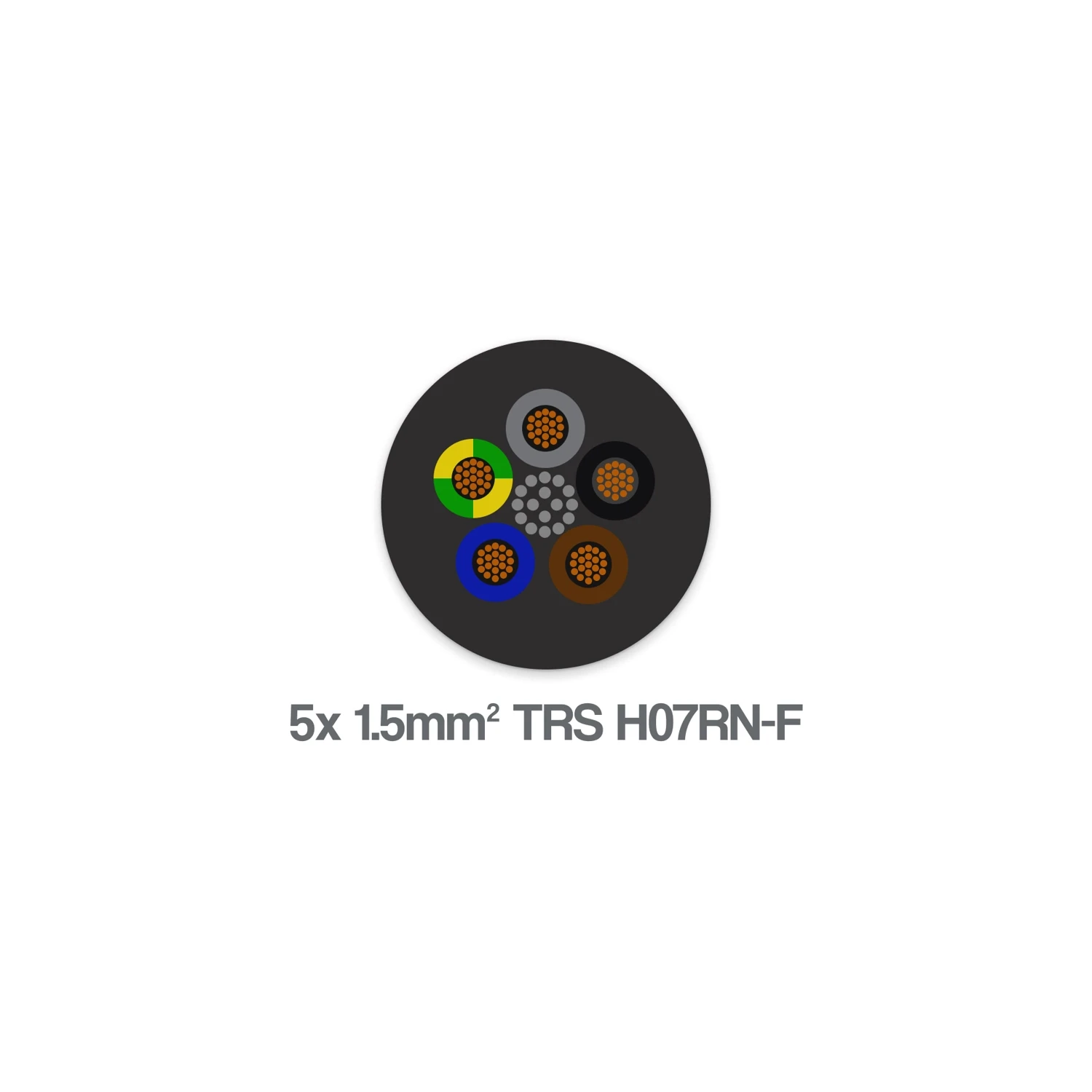

H07RN-F flexible rubber cable, 5 core 1.5mm². EPR insulated, PCP sheathed, black. Built for work sites, industrial machinery, portable power supplies, and harsh environments including ports and water treatment plants.

Class 5 stranded copper conductors throughout. Rated for both fixed and flexing applications.

  • Voltage: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: -30°C to +90°C fixed, -15°C to +90°C flexing
  • Bend radius: 4 × OD fixed, 6 × OD flexing
  • OD: 11.2–14.4 mm
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

1.5 mm²

Number of Cores

5

Conductor Type

Class 5 flexible stranded copper

Stranding

30/0.25 mm

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Minimum Bend Radius (Fixed)

4 × overall diameter

Minimum Bend Radius (Flexing)

6 × overall diameter

Overall Diameter

11.2–14.4 mm

Weight

240 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standard

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
