H07RN-F 5 Core 16mm² Flexible Rubber Cable TRS Black 0.6 1kV

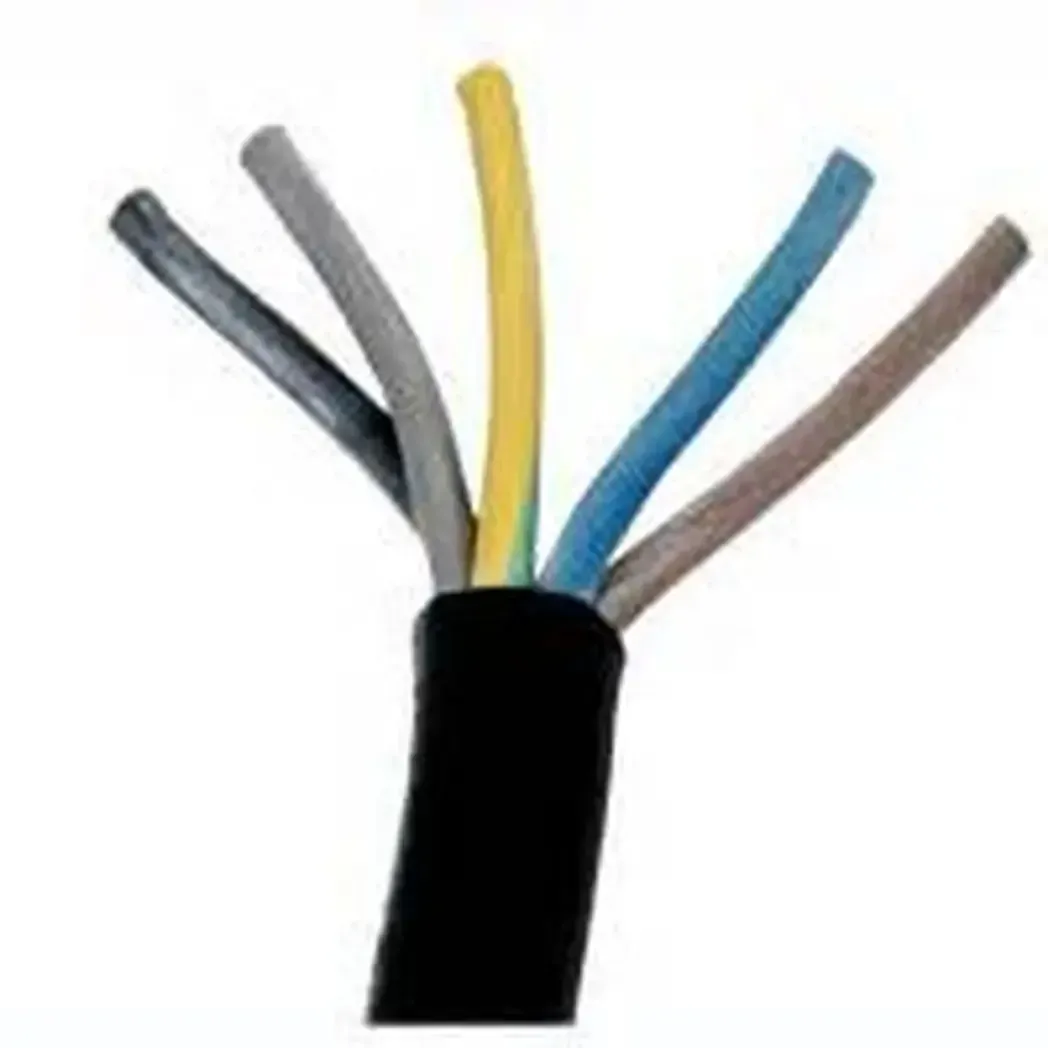

Photo is representative

H07RN-F 5 Core 16mm² Flexible Rubber Cable TRS Black 0.6 1kV

Product Information

Stock Code 516TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £25.72

Gross price

£30.86

This item is not available to order online. Contact us to arrange supply.

H07RN-F flexible cable, 5-core 16mm². EPR insulation, polychloroprene (CR) outer sheath, black. Built for mobile supplies, site distribution, ports, water treatment and harsh industrial use.

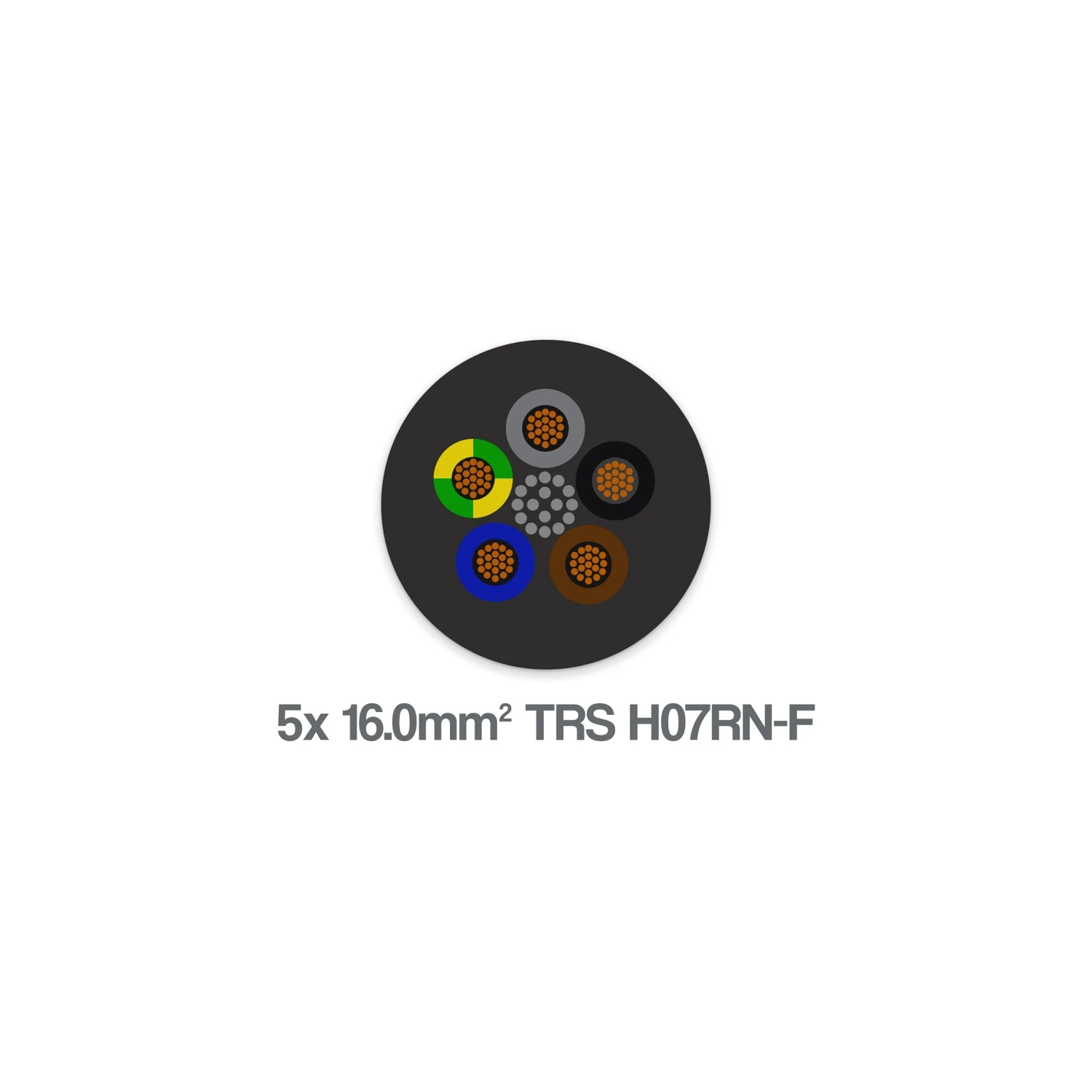

Class 5 stranded copper conductors (126⁄0.40). Core colours: Brown, Black, Grey, Blue, Green/Yellow.

  • Voltage rating: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: -30°C to +90°C fixed; -15°C to +90°C flexing
  • Min bend radius: 4× OD fixed, 6× OD flexing
  • OD: 26.4–33.3 mm
  • Standards: BS EN 50525-2-21, IEC 60228, IEC 60332-1-2
Specifications

Conductor Size

16 mm²

Number of Cores

5

Conductor Type

Class 5 flexible stranded copper

Stranding

126/0.40

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Black, Grey, Blue, Green/Yellow

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Min Bending Radius (Fixed)

4 × overall diameter

Min Bending Radius (Flexing)

6 × overall diameter

Overall Diameter

26.4–33.3 mm

Weight

1680 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
