H07RN-F 4 Core 1.5mm2 Flexible EPR PCP Cable 0.6 1kV Black

Photo is representative

H07RN-F 4 Core 1.5mm2 Flexible EPR PCP Cable 0.6 1kV Black

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 415TRS7
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.21

Gross price

£2.65

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

H07RN-F flexible cable, 4-core 1.5mm². EPR insulated, polychloroprene (PCP) sheathed. Built for site supplies, mobile equipment, ports, water treatment and other harsh industrial environments where mechanical stress, weather and water exposure are a factor.

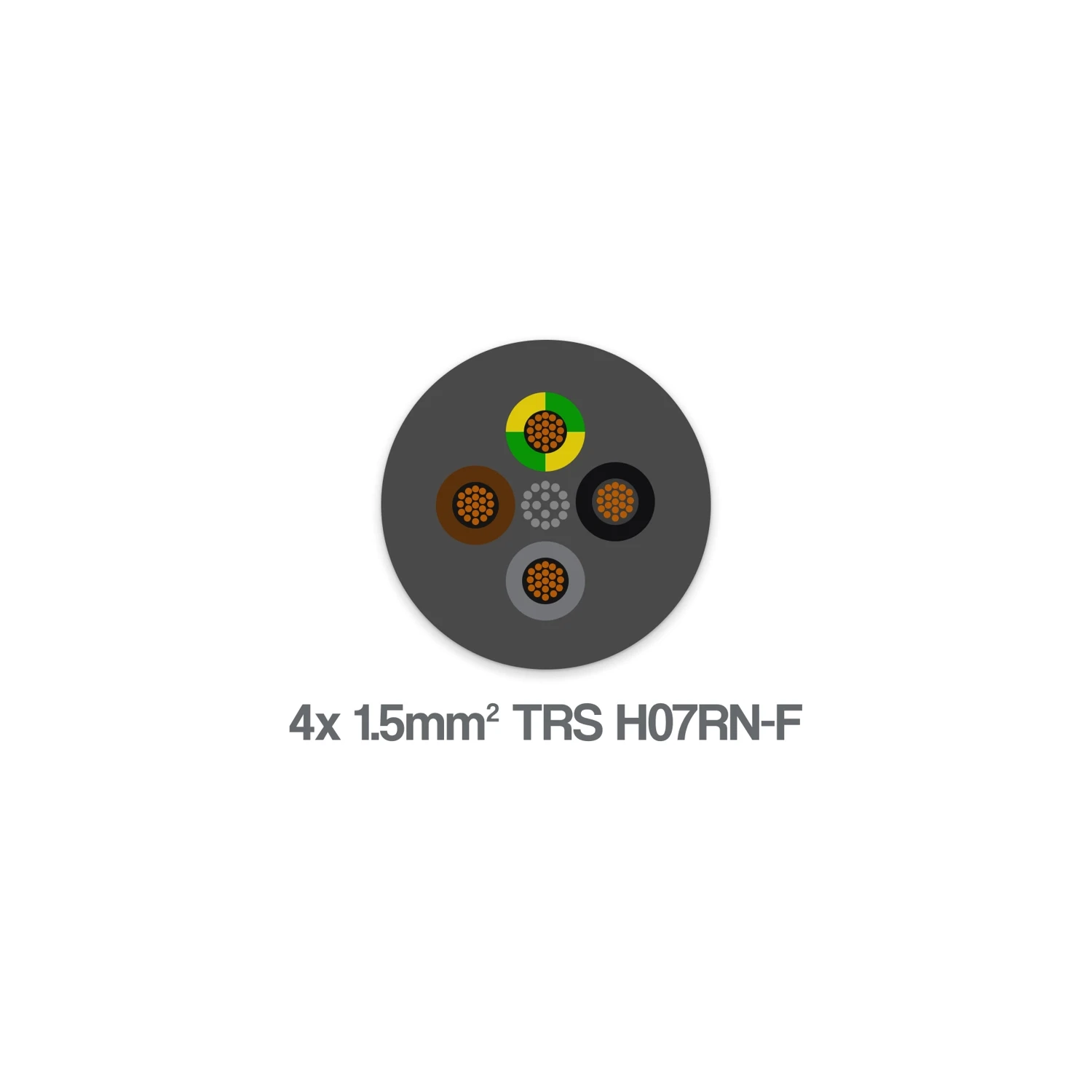

Class 5 stranded copper conductors — 30⁄0.25mm stranding. Core colours: Brown, Black, Grey, Green/Yellow.

  • Voltage: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: -30°C to +90°C fixed, -15°C to +90°C flexing
  • OD: 9–11.6mm
  • Flame retardant: IEC/EN 60332-1-2
Specifications

Conductor Size

1.5 mm²

Number of Cores

4

Conductor Type

Class 5 flexible stranded copper

Stranding

30/0.25 mm

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Black, Grey, Green/Yellow

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Overall Diameter

9–11.6 mm

Minimum Bend Radius (Fixed)

4 x overall diameter

Minimum Bend Radius (Flexing)

6 x overall diameter

Weight

200 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
