H05RN-F 4G 0.75mm2 Flexible Rubber Cable 300 500V Black

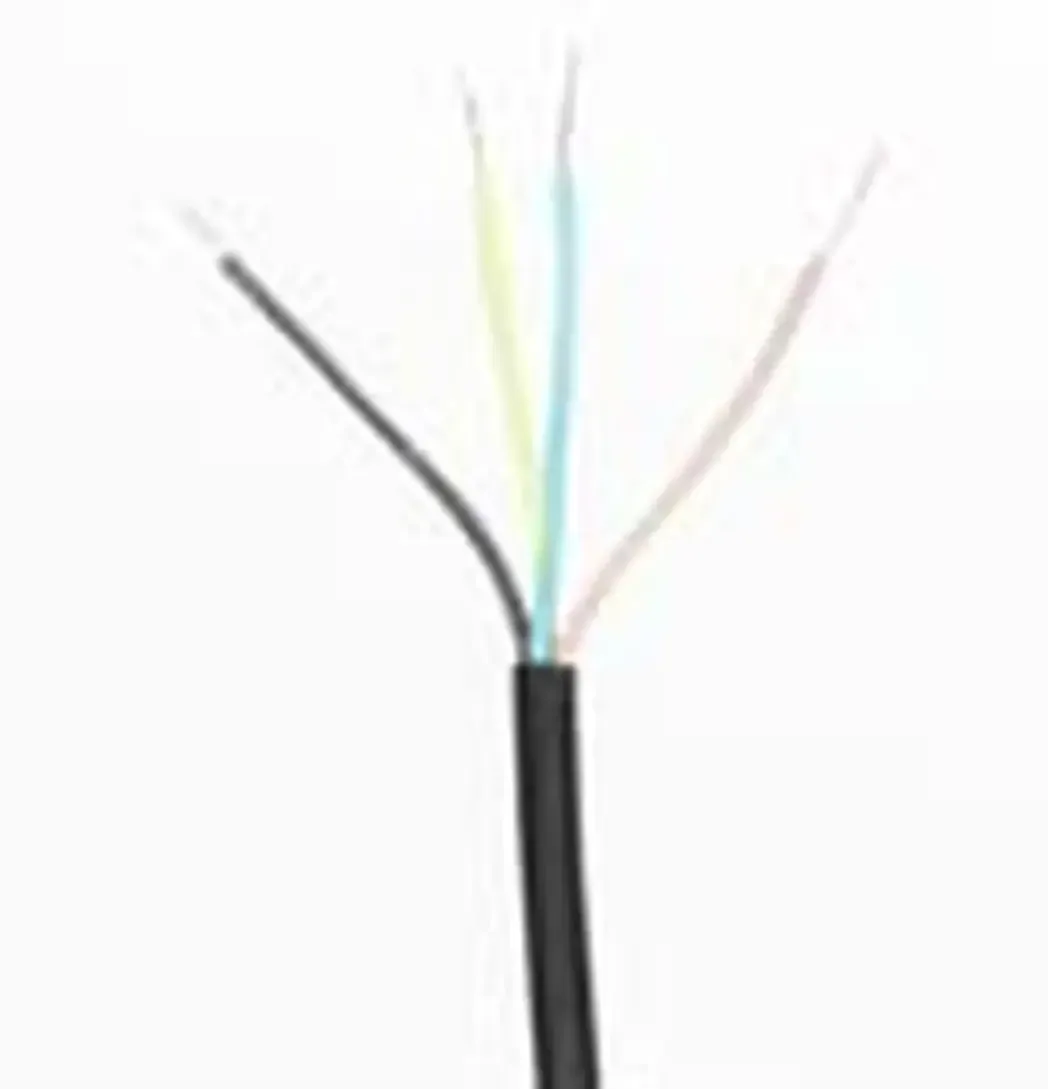

Photo is representative

H05RN-F 4G 0.75mm2 Flexible Rubber Cable 300 500V Black

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 475TRS
GTIN —
Stock status: In stock

priced per meter

Net price: £1.43

Gross price

£1.72

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

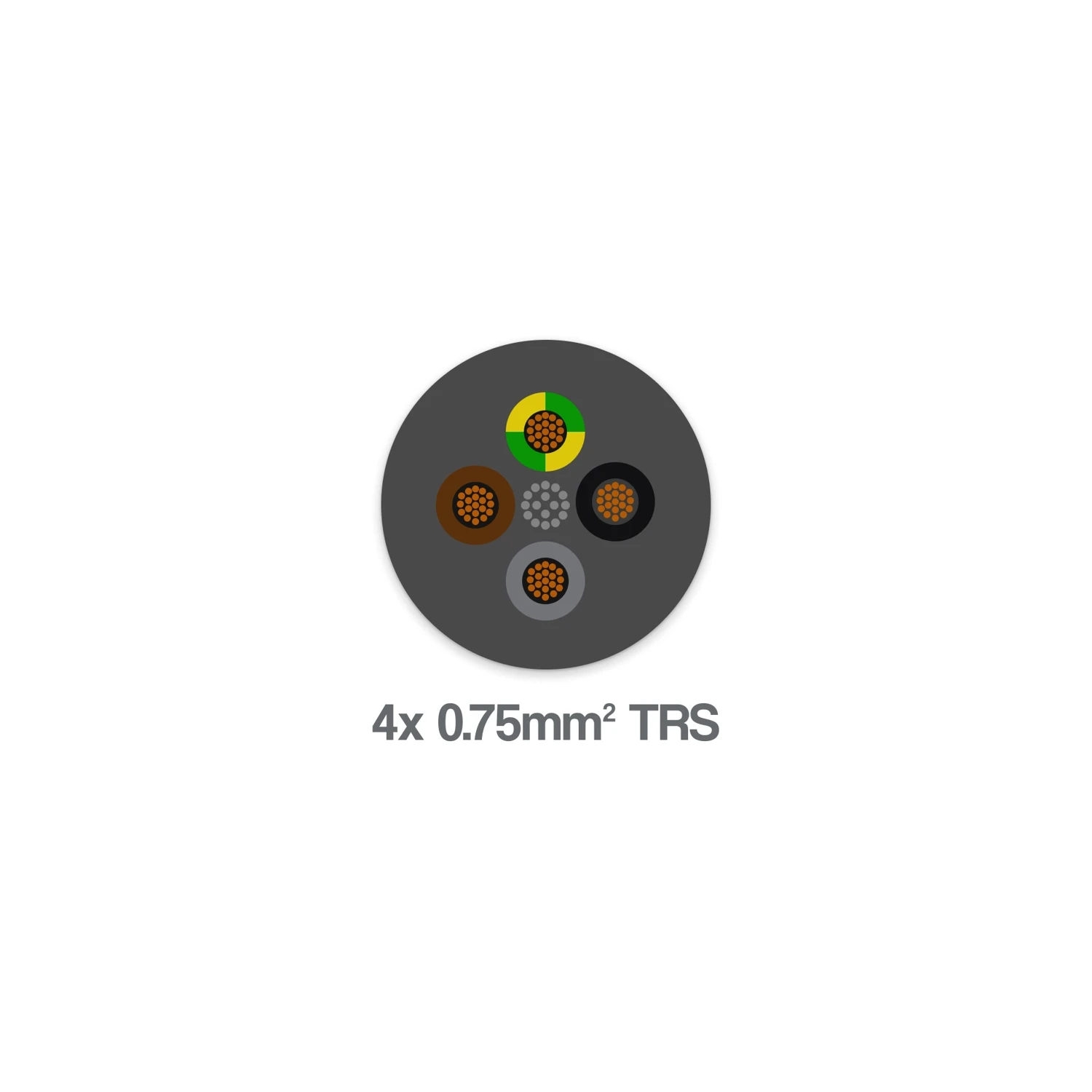

H05RN-F 4G 0.75mm² flexible rubber cable. Four cores including G/Y earth. Suited to light mechanical stress applications — portable tools, garden and kitchen appliances, hoovers. Rated for dry, damp, wet and outdoor environments.

  • Voltage: 300/500V (U₀/U)
  • Conductor: bare copper, finely stranded Class 5 per IEC 60228
  • Sheath: black rubber type EM2, weathering resistant
  • OD: 6.8–8.8mm
  • Flame-retardant: IEC 60332-1-2
Specifications

Cable Type

H05RN-F

Cores x Cross-Section

4 G 0.75 mm²

Nominal Voltage

300/500 V AC

Max Operating Voltage (AC L-E)

318 V

Max Operating Voltage (AC L-L)

550 V

Max Operating Voltage (DC L-E)

413 V

Max Operating Voltage (DC L-L)

825 V

Test Voltage Core/Core

2000 V

Conductor Temperature

+60°C

Temperature Range (Flexible)

-25°C to +60°C

Temperature Range (Fixed)

-30°C to +60°C

Conductor

Bare copper, finely stranded, Class 5 per IEC 60228

Core Insulation

Rubber compound type EI4 per DIN EN 50363-1

Outer Sheath

Rubber compound type EM2 per DIN EN 50363-2-1, black

Protective Conductor

Green-yellow (GN-YE), included

Outer Diameter

6.8–8.8 mm

Minimum Bending Radius

7.5 × outer diameter

Flame Retardant

IEC 60332-1-2 / DIN EN 60332-1-2

Certifications

HAR, EAC

Copper Weight

29.0 kg/km

Cable Weight

94.0 kg/km
