H07RN-F 4 Core 2.5mm2 Flexible Rubber Cable Black 0.6 1kV

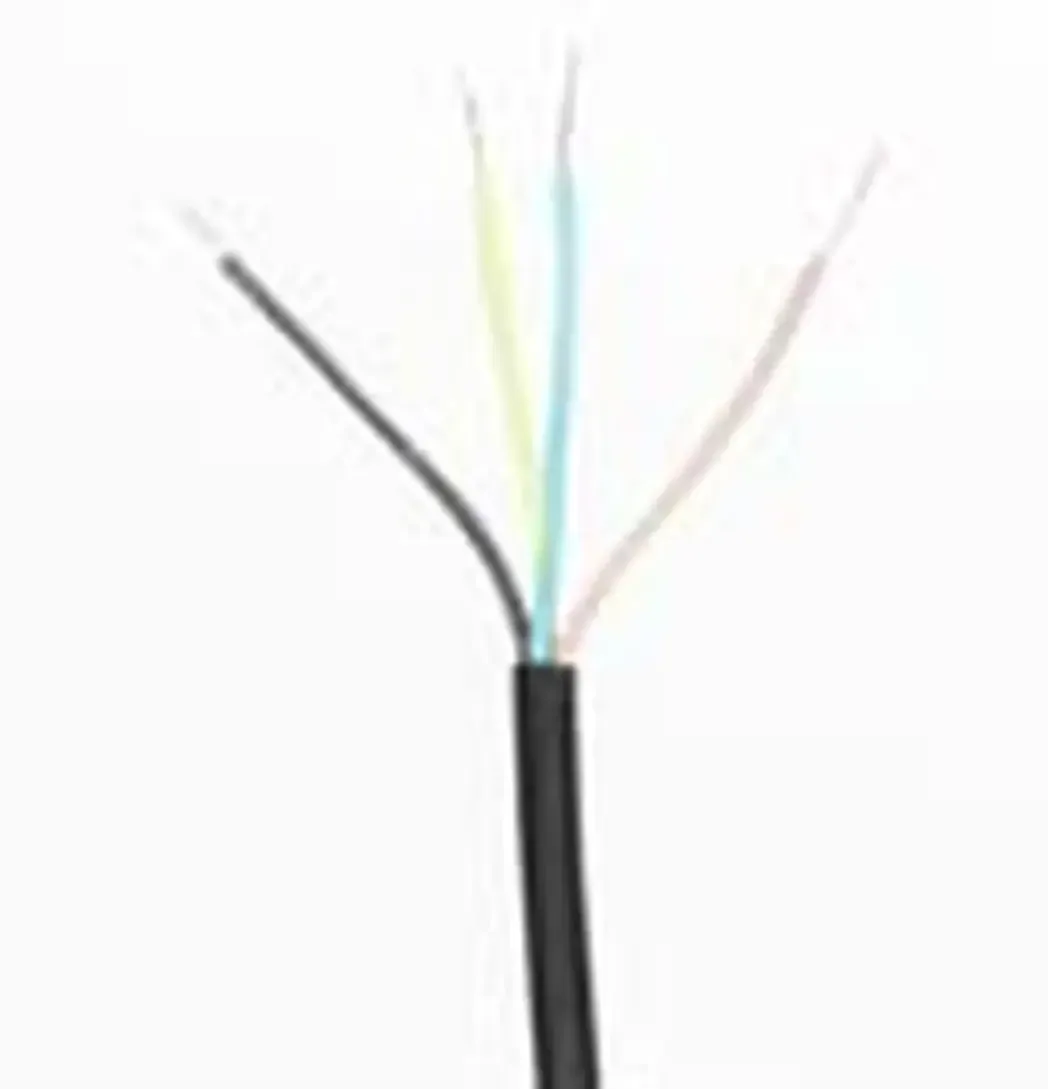

Photo is representative

H07RN-F 4 Core 2.5mm2 Flexible Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 425TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £3.67

Gross price

£4.41

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

H07RN-F flexible rubber cable, 4 core 2.5mm². Class 5 stranded copper conductors with EPR insulation and polychloroprene (CR) outer sheath. Suitable for work sites, mobile power supplies, ports and harbours, water treatment plants, and harsh industrial environments.

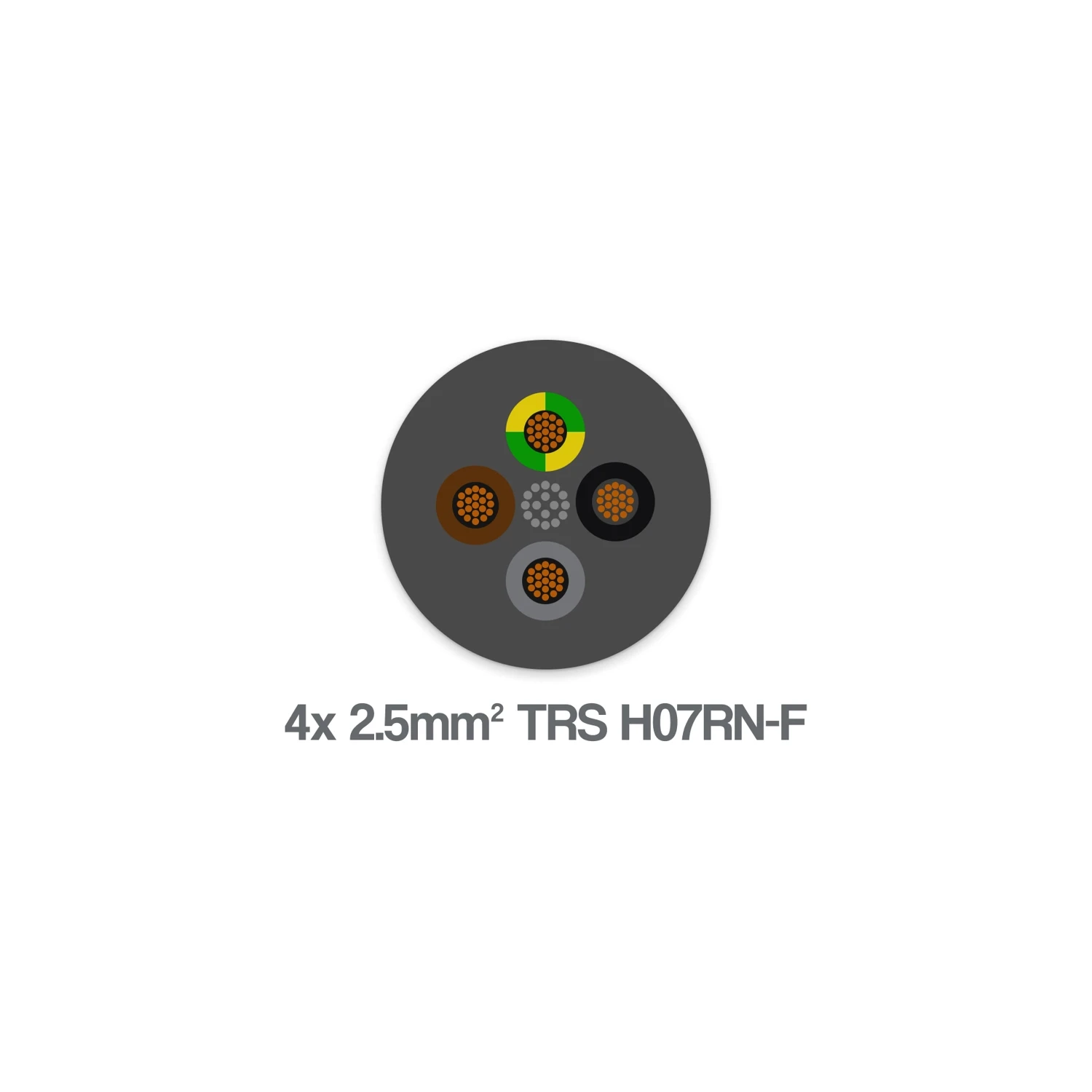

Core colours are Brown, Black, Grey, and Green/Yellow.

  • Voltage rating: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: -30°C to +90°C (fixed), -15°C to +90°C (flexing)
  • OD: 10.7–13.8mm
  • Standards: BS EN 50525-2-21, BS EN/IEC 60228, IEC/EN 60332-1-2
Specifications

Conductor Size

2.5 mm²

Number of Cores

4

Stranding

50/0.25

Conductor Type

Class 5 flexible stranded copper

Insulation

Ethylene Propylene Rubber (EPR)

Outer Sheath

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Black, Grey, Green/Yellow

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Min Bending Radius (Fixed)

4 × overall diameter

Min Bending Radius (Flexing)

6 × overall diameter

Overall Diameter

10.7–13.8mm

Weight

290 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60228, BS EN/IEC 60332-1-2
