H07RN-F TRS 4 Core 6mm2 Flexible Rubber Cable Black 0.6 1kV

Photo is representative

H07RN-F TRS 4 Core 6mm2 Flexible Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 46TRS7
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £7.57

Gross price

£9.08

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

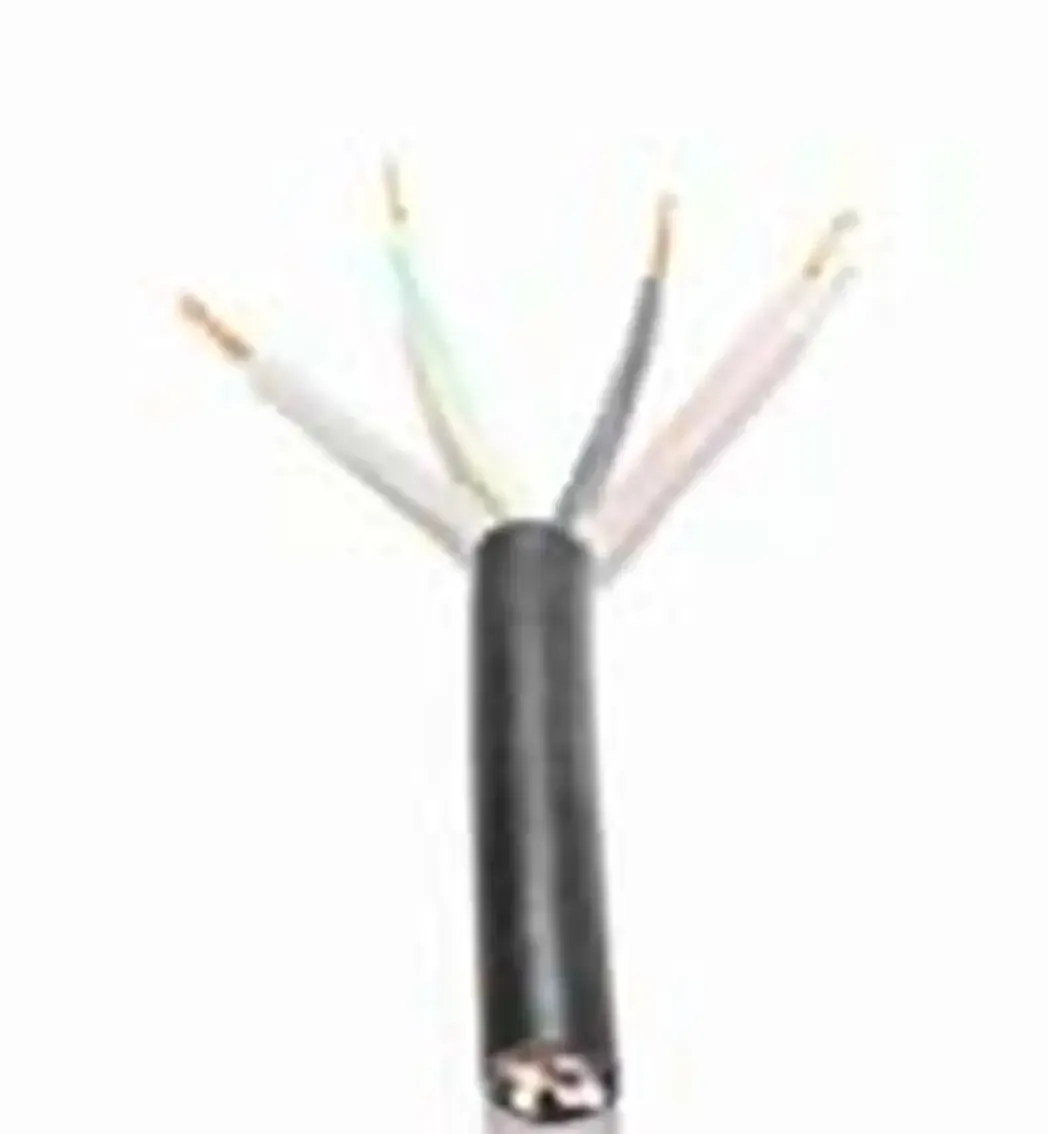

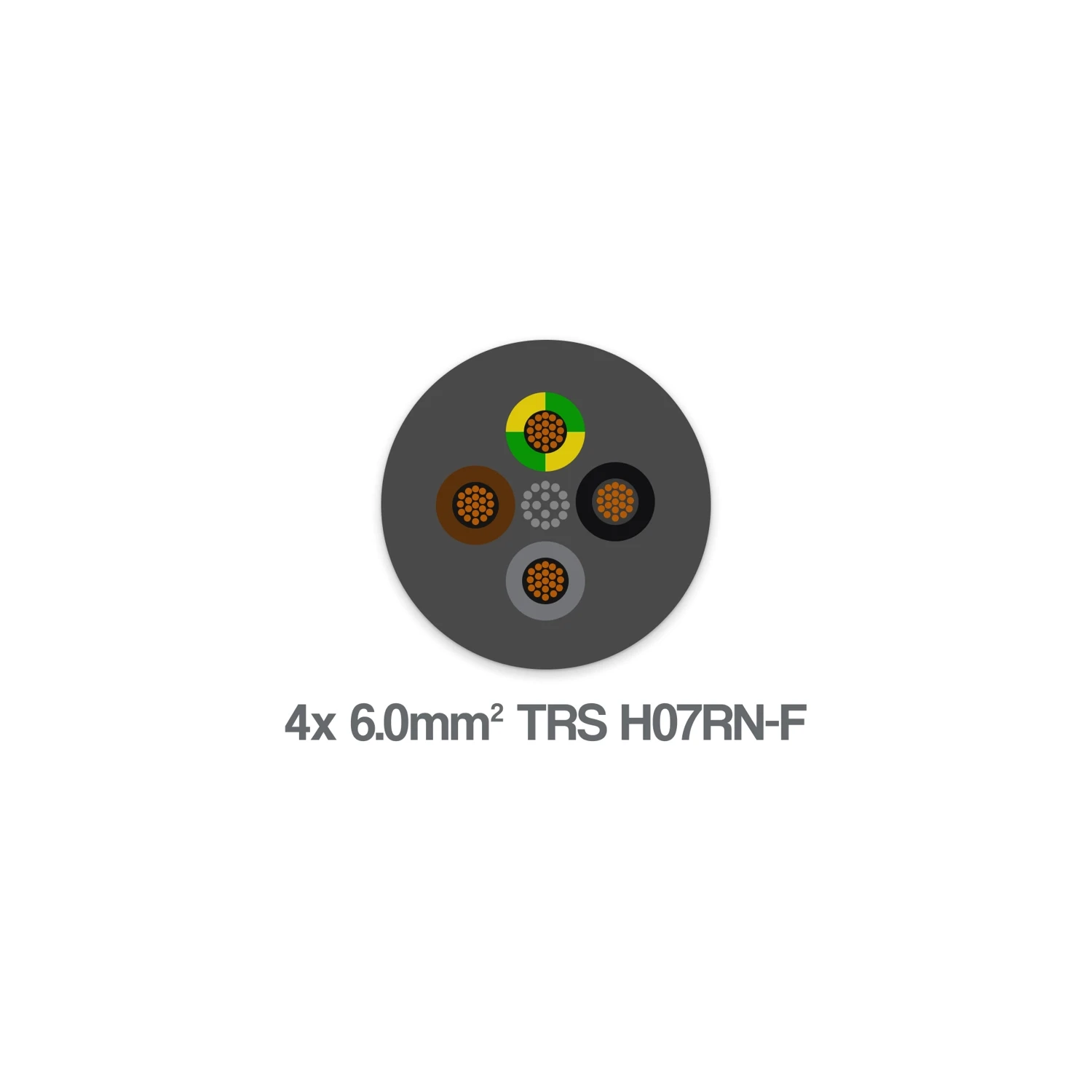

4-core 6mm² H07RN-F flexible rubber cable. EPR insulation over Class 5 stranded copper, polychloroprene outer sheath. Built for site work, mobile plant, ports, water treatment and harsh industrial environments.

Handles both fixed and flexing installations with a wide temperature range and good mechanical stress resistance.

  • Voltage: 0.6/1kV fixed, 450/750V flexing
  • OD: 15.7–20mm
  • Temp: -30°C to +90°C fixed, -15°C to +90°C flexing
  • Bend radius: 4x OD fixed, 6x OD flexing
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

6 mm²

Number of Cores

4

Stranding

84/0.30

Conductor Type

Class 5 flexible stranded copper

Insulation

Ethylene Propylene Rubber (EPR)

Outer Sheath

Polychloroprene Rubber (CR)

Sheath Colour

Black

Overall Diameter

15.7–20 mm

Weight

610 kg/km

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Bend Radius (Fixed)

4 x overall diameter

Bend Radius (Flexing)

6 x overall diameter

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
