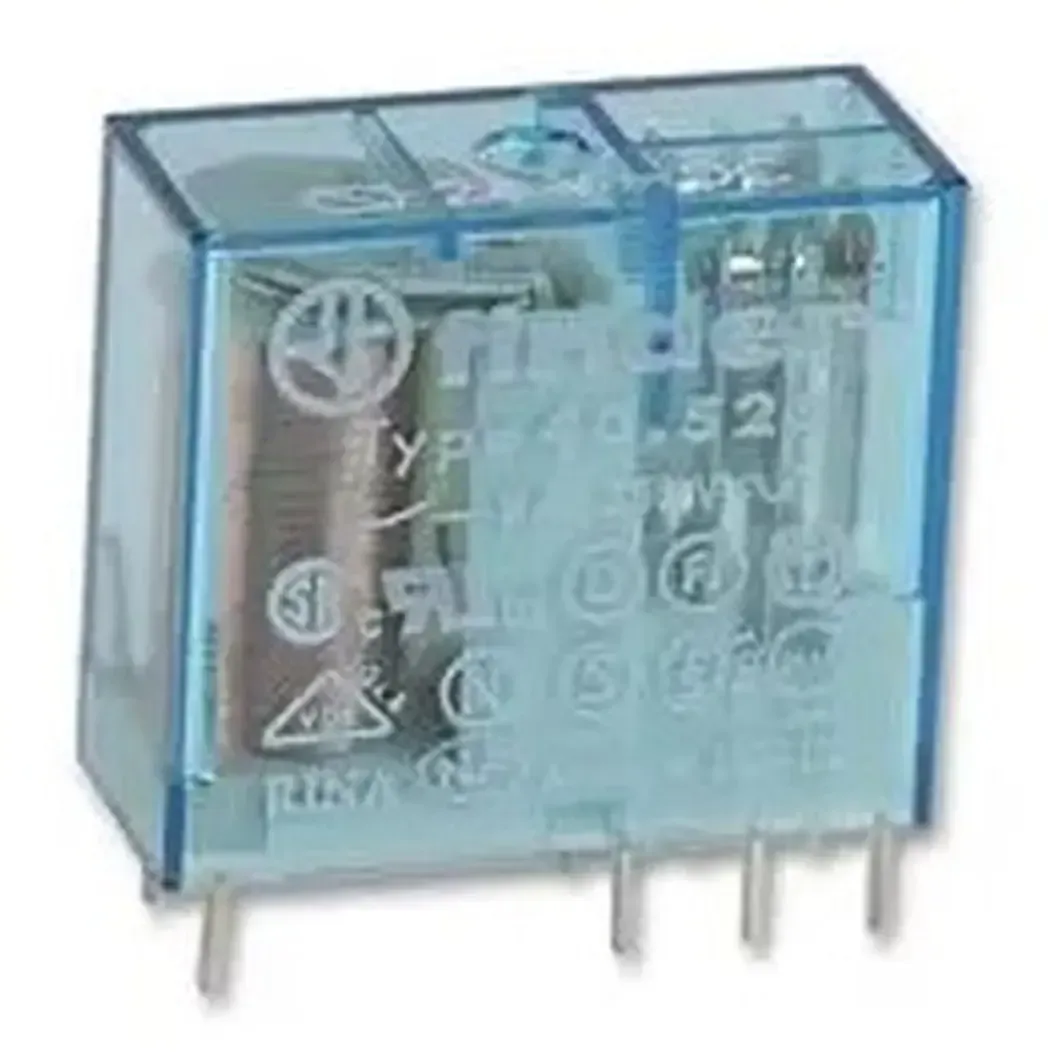

Finder 40.52.7.024.0000 24V DC 8A 2PDT 8-Pin Miniature PCB Relay

Photo is representative

Finder 40.52.7.024.0000 24V DC 8A 2PDT 8-Pin Miniature PCB Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8PMR24VDC
GTIN —
Stock status: In stock

priced individually

Net price: £5.58

Gross price

£6.69

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Miniature 8-pin relay from Finder’s 40 Series. Suits PCB mount or plug-in installation using 95 Series sockets. DC sensitive coil runs at 24V nominal with a flux-proof (RT II) housing.

Two-pole changeover contacts rated at 8A/250V AC. Wide operating voltage range gives decent headroom either side of nominal.

  • Coil voltage: 24V DC nominal, 17.5–36V operating range
  • Contacts: 2PDT (2CO), 8A, 250V AC
  • Coil resistance: 1150Ω, 0.5W rated power
  • Insulation coil/contacts: 6kV
  • Temp range: -40 to +85°C
Specifications

Coil Voltage (Nominal)

24V DC

Operating Voltage Range

17.5–36V DC

Contact Configuration

2PDT (2CO)

Contact Current Rating

8A

Rated Contact Voltage

250V AC

Coil Resistance

1150Ω

Rated Power

0.5W

Coil Consumption

21mA

Must Drop-out Voltage

2.4V

Holding Voltage

9.6V

Insulation (Coil/Contacts)

6kV

Contact Material

AgNi

Electrical Life

100000 cycles

Ambient Temperature Range

-40 to +85°C

Dimensions

12.4 × 25 × 29mm

Pin Pitch

5mm

Mounting

PCB mount or plug-in (95 Series sockets)

Construction

Flux proof (RT II)

Compliance

Glow wire test per EN 60335-1
