Finder 40.52.7.012.0000 12V DC 8Pin 8A 2CO Miniature PCB Relay

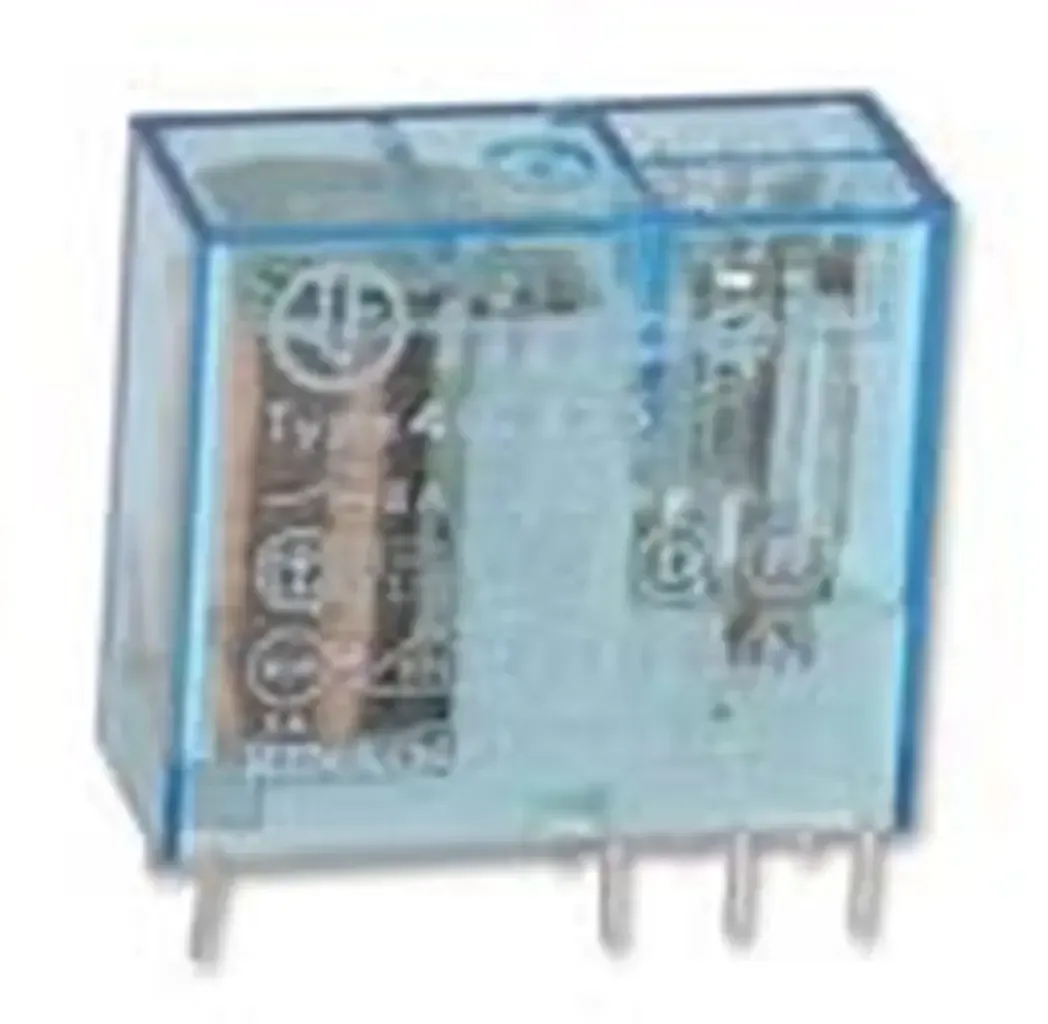

Photo is representative

Finder 40.52.7.012.0000 12V DC 8Pin 8A 2CO Miniature PCB Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8PMR12VDC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £9.24

Gross price

£11.08

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Finder 40.52.7.012.0000 miniature relay for PCB mounting or plug-in via 95 Series sockets. 5 mm pin pitch suits compact control circuit layouts.

DC sensitive coil rated at 12V with 0.5W power draw. Flux proof (RT II) version — suitable where PCB wash processes are used.

  • 2CO contacts, 8A at 250V AC
  • Operating range: 8.8–18V DC
  • Coil/contact insulation: 6 kV
  • Electrical life: 100,000 cycles
  • Ambient temp: -40 to +85°C
Specifications

Nominal Coil Voltage

12 V DC

Operating Range

8.8...18 V DC

Contact Configuration

2CO (2 pole changeover)

Contact Current Rating

8 A

Rated Contact Voltage

250 V AC

Coil Power

0.5 W

Coil Resistance

288 Ω

Coil Consumption

42 mA

Must Drop-out Voltage

1.2 V

Holding Voltage

4.8 V

Coil/Contact Insulation

6 kV

Contact Material

AgNi

Pin Pitch

5 mm

Dimensions

12.4 x 25 x 29 mm

Electrical Life

100,000 cycles

Ambient Temperature Range

-40...85 °C

Version

Flux proof (RT II)

Socket Compatibility

95 Series sockets

Compliance

Glow wire test per EN 60335-1
