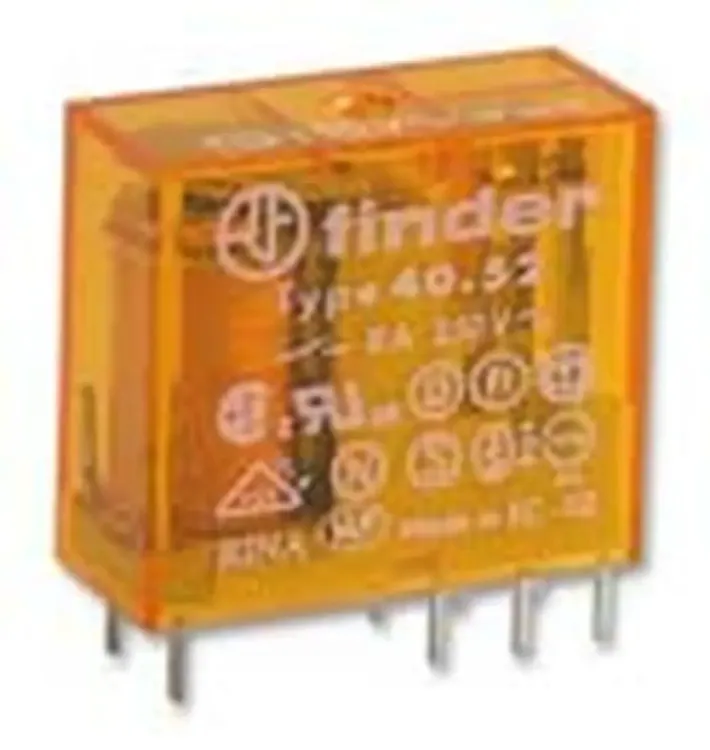

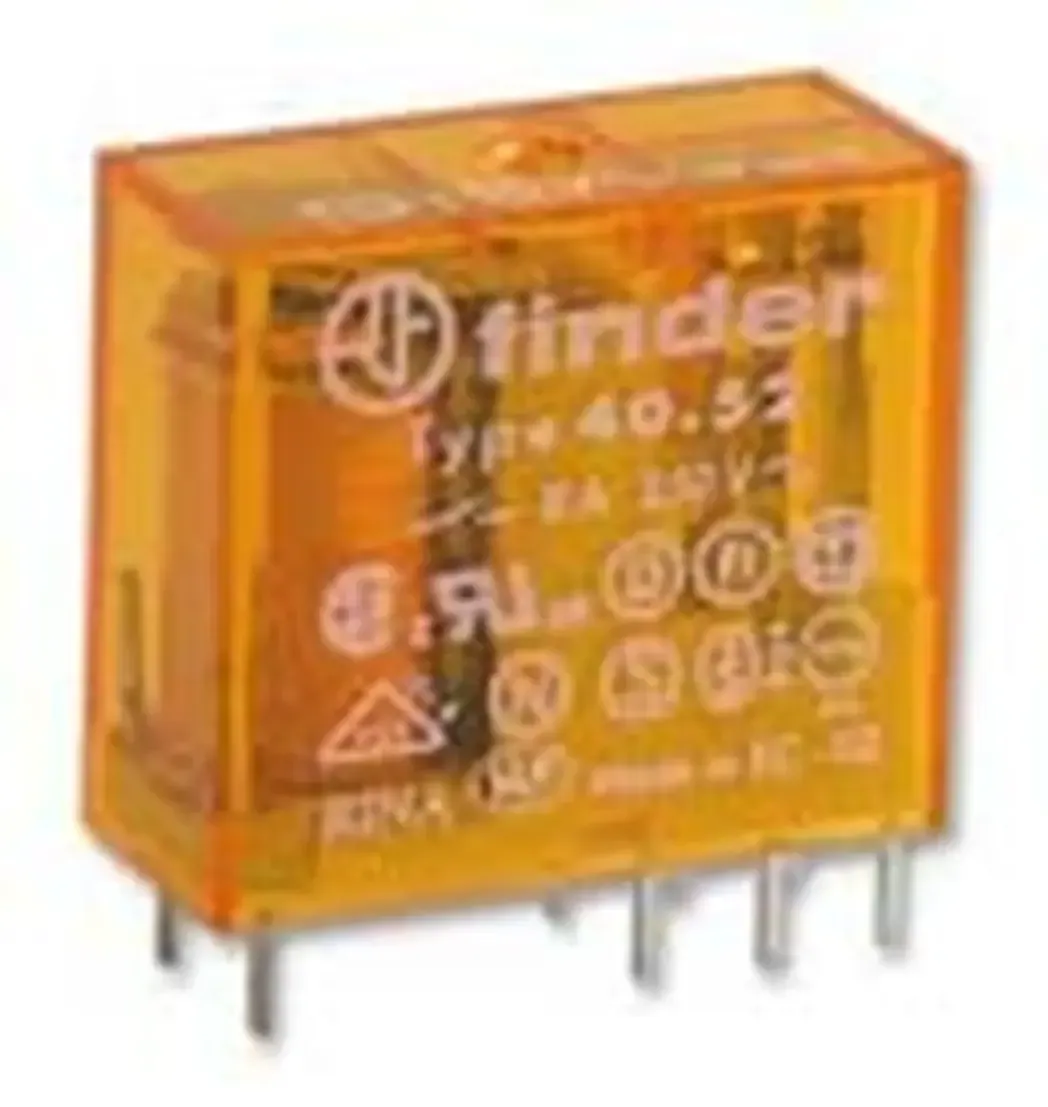

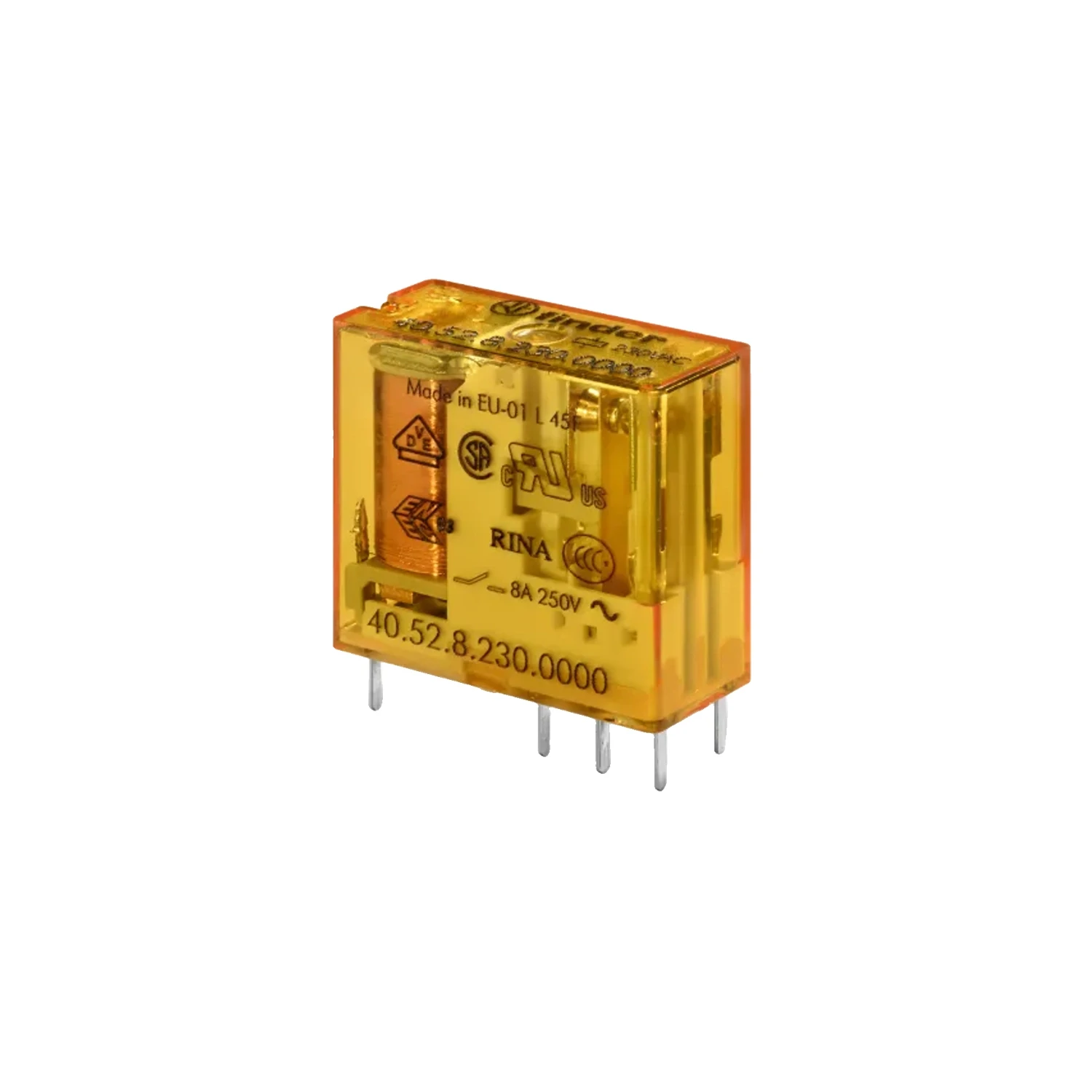

Finder 8PMR110VAC 110V AC 8 Pin 8A 2 Pole CO Miniature PCB Relay

Photo is representative

Finder 8PMR110VAC 110V AC 8 Pin 8A 2 Pole CO Miniature PCB Relay

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 8PMR110VAC
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £8.73

Gross price

£10.47

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Miniature 8-pin PCB relay from Finder. Suits PCB mounting or plug-in socket installation. 2CO contact configuration with AgNi contacts rated at 8A/250V AC.

Flux proof (RT II) version. Operating range 88–121V AC. Insulation between coil and contacts rated at 6 kV.

  • Contact rating: 8A, 250V AC
  • Coil voltage: 110V AC (88–121V operating range)
  • Must drop-out voltage: 22V
  • Electrical life: 100,000 cycles
  • Ambient temperature: -40 to +85°C
Specifications

Coil Voltage

110 V AC

Operating Range

88–121 V AC

Holding Voltage

88 V

Must Drop-out Voltage

22 V

Rated Power (AC)

1.2 VA

Coil Resistance

6900 Ω

Coil Consumption

9.4 mA

Contact Configuration

2 pole CO (nPDT)

Contact Rating

8 A

Rated Contact Voltage

250 V AC

Contact Material

AgNi

Insulation Coil/Contacts

6 kV (1.2/50 µs)

Electrical Life

100,000 cycles

Pin Pitch

5 mm

Pin Length

5.2 mm (plug-in)

Dimensions

12.4 × 25 × 29 mm

Ambient Temperature

-40 to +85 °C

Version

Flux proof (RT II)
