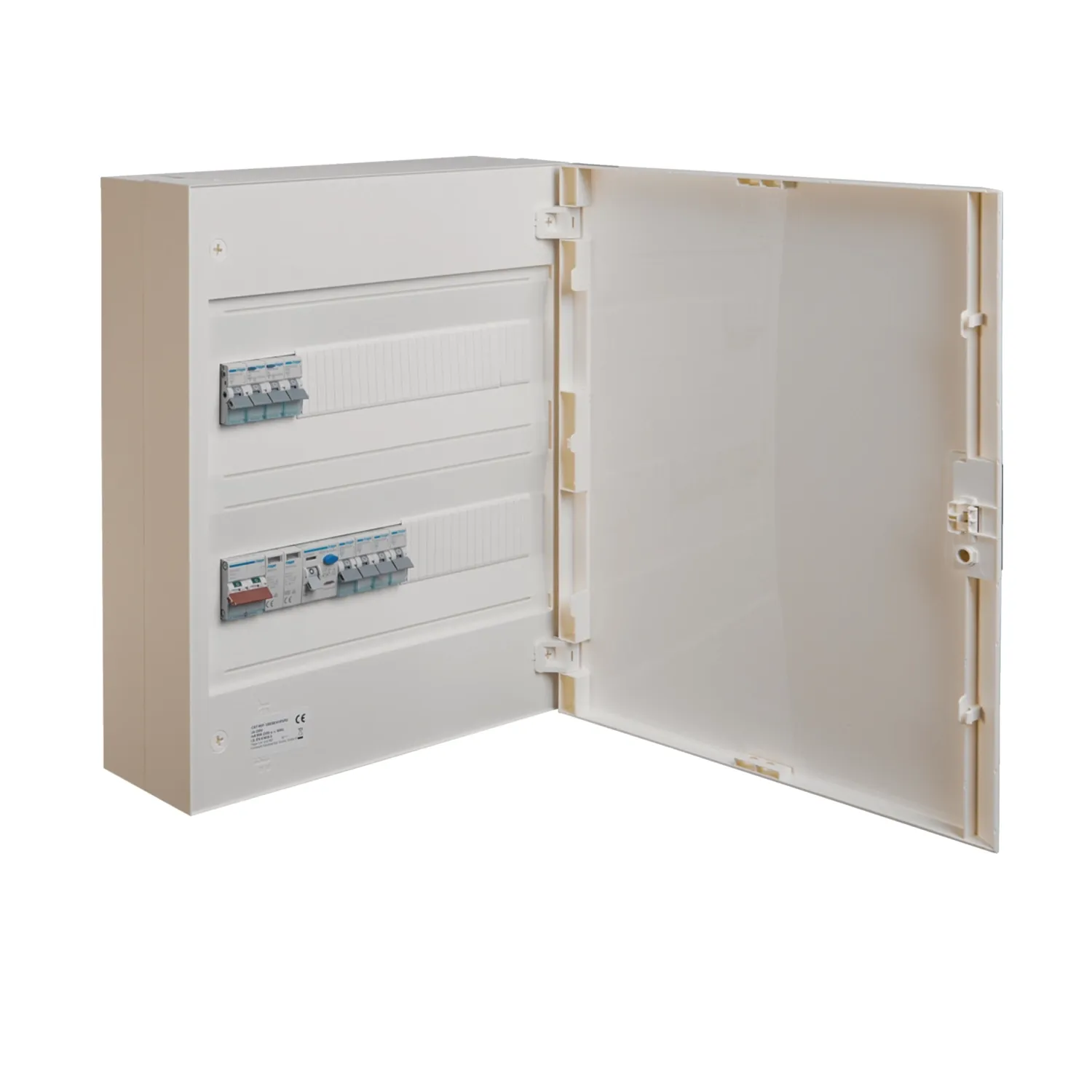

Hager VBE88101PSPD 80A 2-Row 36-Module Consumer Unit SPD Surface Mount

Photo is representative

Hager VBE88101PSPD 80A 2-Row 36-Module Consumer Unit SPD Surface Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VBE88101PSPD
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £326.50

Gross price

£391.80

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager Vega split-load consumer unit for surface mounting. Two-row, 36-module capacity rated at 80A. Comes with SPD overvoltage protection and interlock plain white door. IP40 rated enclosure, polystyrene construction.

  • 80A main rating, 36 modules across 2 rows
  • Surface mount, 370mm W × 450mm H × 145mm D
  • IP40 ingress protection, IK07 impact resistance
  • Interlock plain white door
  • SPD overvoltage protection included
Specifications

Mounting Type

Surface mounting

Rated Current

80A

Number of Modules

36

Number of Rows

2

Width

370 mm

Height

450 mm

Depth

145 mm

IP Rating

IP40

Impact Resistance

IK07

Overvoltage Protection

Yes

Door Type

Interlock plain white

Material

Polystyrene (PS)

Colour

Pure white (RAL 9010)

Protection Class

II

What's included

1x SBR290 2P 100A Isolator Switch

1x CD285U 2P 100A RCCB

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

1x MBN110W - B10 6kA MCB 1M

2x ADA306G - B6 6kA RCBO 1M

Surge Protection

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs
