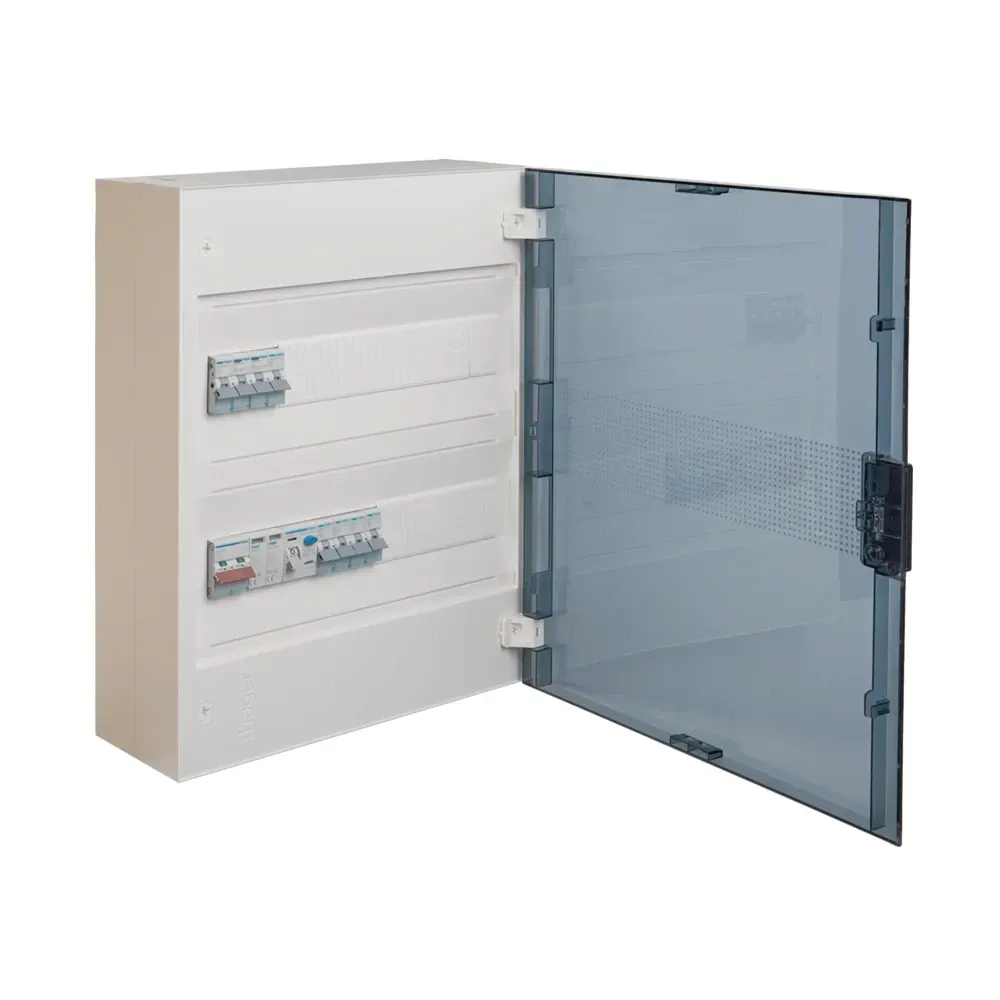

Hager 2 Row Consumer Board with 36 modules, SPD, and surface mount design

Photo is representative

Hager 2 Row Consumer Board, Rated 80A, 36 Module, Surface Mount SPD Protected

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VBE88101TSPD
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £296.82

Gross price

£356.19

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Pre-wired Vega series consumer unit featuring integrated surge protection and dual RCBO circuits. Large capacity surface-mount enclosure ideal for comprehensive residential or light commercial installations.

Configuration:

  • 1x 2P 100A Isolator Switch
  • 1x 80A RCCB
  • 1x Type 2 SPD
  • 1x 32A MCB (Type B)
  • 4x 20A MCB (Type B)
  • 1x 10A MCB (Type B)
  • 2x 6A RCBO (30mA Type B)

Technical Details:

  • 36 module capacity (18 modules per row)
  • 80A rated current
  • IP40 / IK07 rated polystyrene enclosure
  • Transparent interlockable door
  • Surface mount installation
  • Pre-wired neutral and earth terminal blocks
  • Dimensions: 450H x 370W x 145D mm
  • RAL 9010 (Pure white)
Specifications

Product Code

VBE88101TSPD

Dimensions (H x W x D)

450mm x 370 mm x 145 mm

Rated Current

80A

Mounting

Surface

Ingress Protection

IP40

What's included

1x SBR290 2P 100A Isolator Switch

1x CD285U 2P 100A RCCB

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

1x MBN110W - B10 6kA MCB 1M

Surge Protection

Documents

other VBE88101TSPD Datasheet

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs
