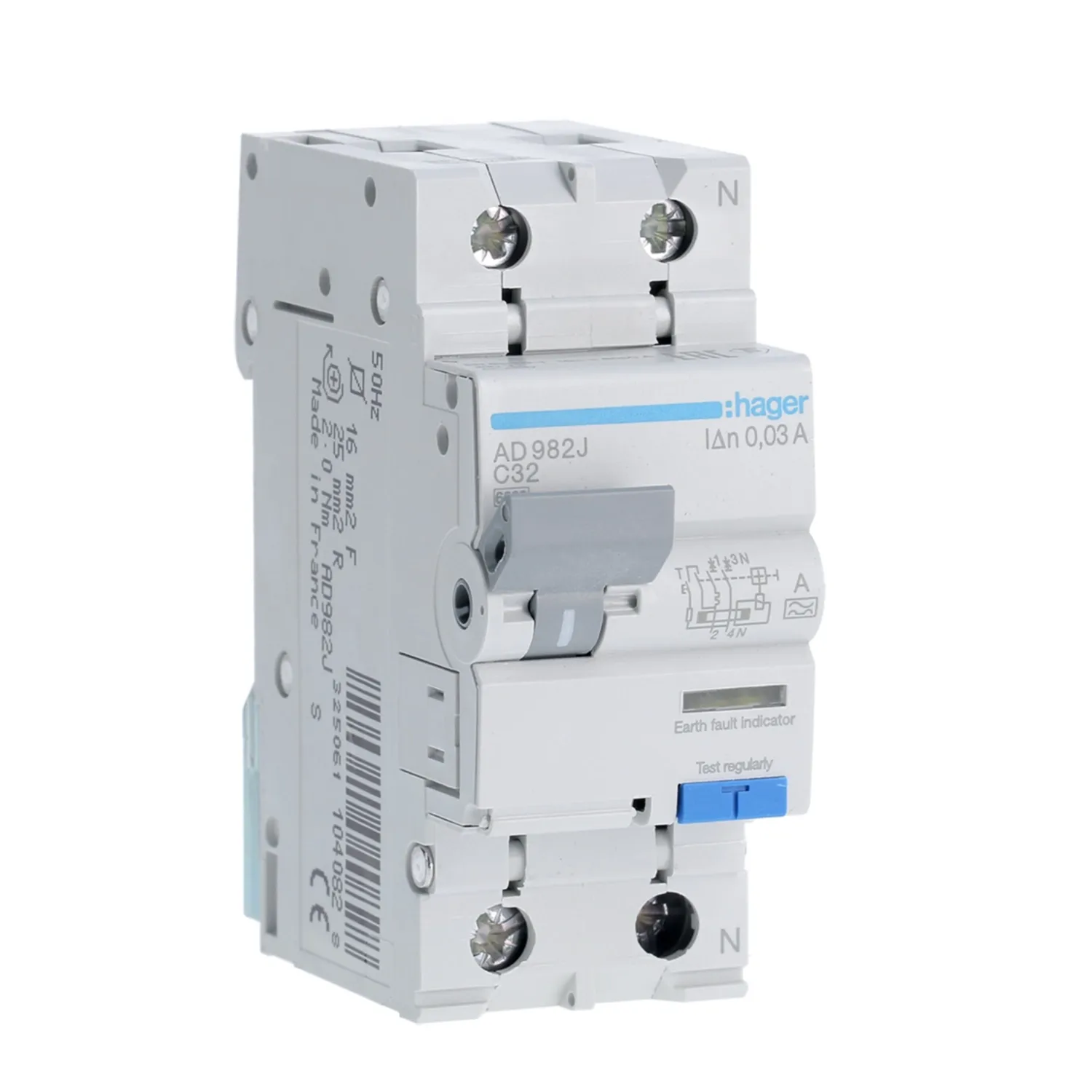

Hager RCBO 1P+N 32A 30mA C Curve Type A

Photo is representative

Hager RCBO 1P+N 32A C-Curve 6kA 30mA Type A 2 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code AD982J
GTIN 3250611040828
Stock status: In stock

priced individually

More arriving soon

Net price: £29.02

Gross price

£34.83

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager AD982J RCBO for final circuit protection. 1P+N configuration with 32A C-curve overcurrent and 30mA Type A earth leakage protection. Clips onto DIN rail, takes up 2 modules.

  • 6kA breaking capacity to IEC 60898-1
  • 240V AC rated voltage
  • IP20 protection rating
  • Operating temperature: -25°C to +40°C
Specifications

Type

RCBO

Poles

1P+N

Trip Curve

C

Current Rating

32A

Residual Current

30mA

Residual Current Type

A

Breaking Capacity

6kA

Rated Voltage

240V AC

Insulation Voltage

500V

Impulse Withstand

4000V

Frequency

50Hz

IP Rating

IP20

Module Width

2 modules (35mm)

Power Loss

8.30W

Overvoltage Category

III (IEC 60947-1)

Max Altitude

2000m

Energy Limitation Class

I²t Class 3

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2.10 Nm

Height

83mm

Width

35mm

Depth

68mm

Operating Temperature

-25 to +40 °C

Storage Temperature

-25 to +70 °C

RoHS Compliant

Yes

Documents

datasheet Hager AD982J Datasheet
