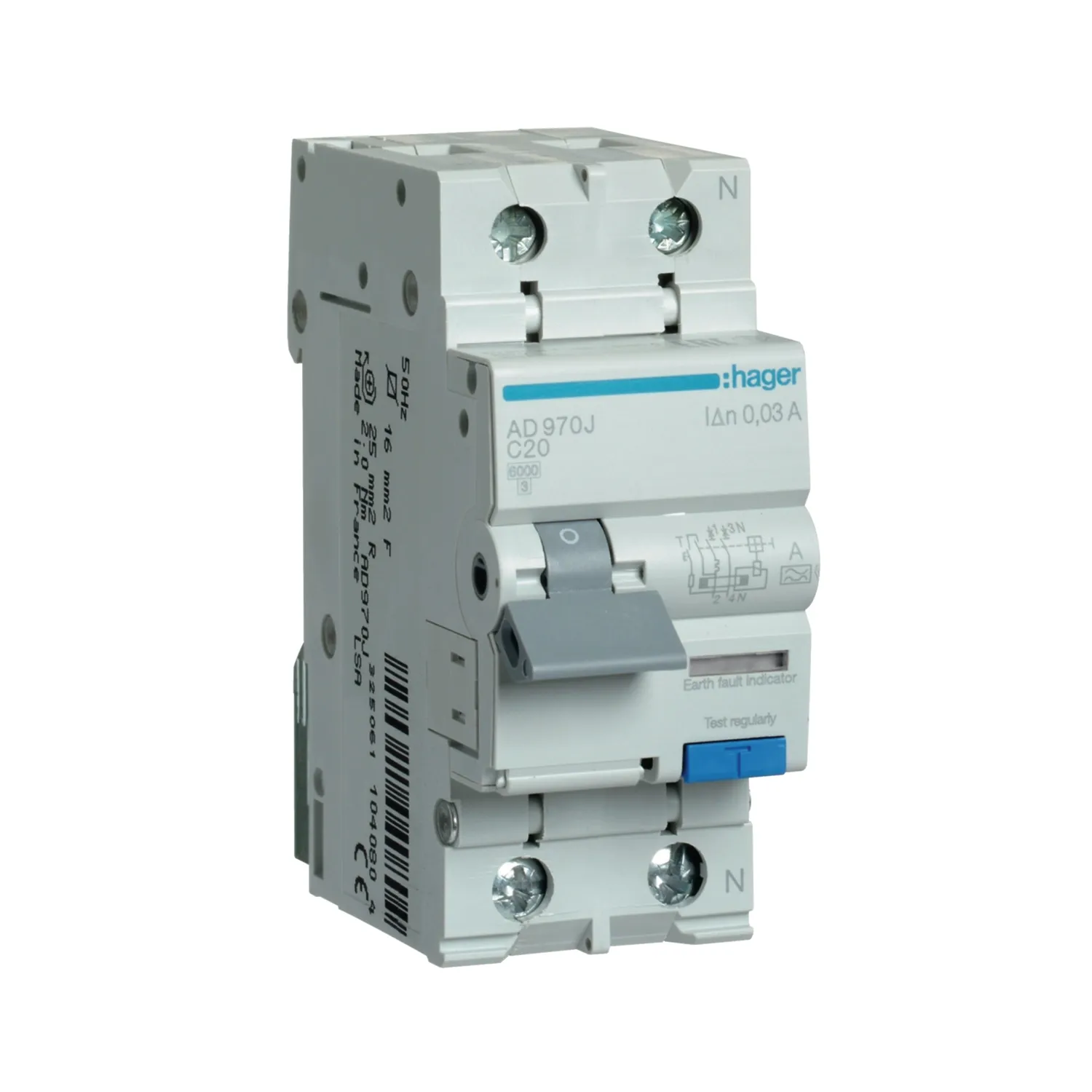

Hager RCBO 1P+N 20A 30mA C Curve Type A

Photo is representative

Hager RCBO 1P+N 6kA C-20A 30mA Type A 2 Module IP20

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code AD970J
GTIN 3250611040804
Stock status: In stock

priced individually

More arriving soon

Net price: £29.75

Gross price

£35.71

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager AD970J RCBO for final circuit protection. Combines overcurrent and residual current protection in one 2-module unit. Straight onto DIN rail, fits standard consumer units.

  • 20A C-curve with 6kA breaking capacity
  • 30mA Type A residual current protection
  • 230V AC rated, IP20 enclosure
  • Screw terminal top, Biconnect bottom
  • Operating range: -25°C to +40°C
Specifications

Type

RCBO

Poles

1P+N

Curve

C

Current Rating

20 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

230 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

2 modules

Power Loss

6.60 W

Overvoltage Category

III (IEC 60947-1)

Max. Altitude

2000 m

Standard

IEC 60898-1

Connection Type

Screw terminal (top) / Biconnect (bottom)

Flexible Conductor

1–16 mm²

Rigid Conductor

1–25 mm²

Tightening Torque

2.10 Nm

Height

83 mm

Width

35 mm

Depth

68 mm

Operating Temperature

-25 to +40 °C

Storage Temperature

-25 to +70 °C

RoHS

Yes

Documents

datasheet Hager AD970J Datasheet
